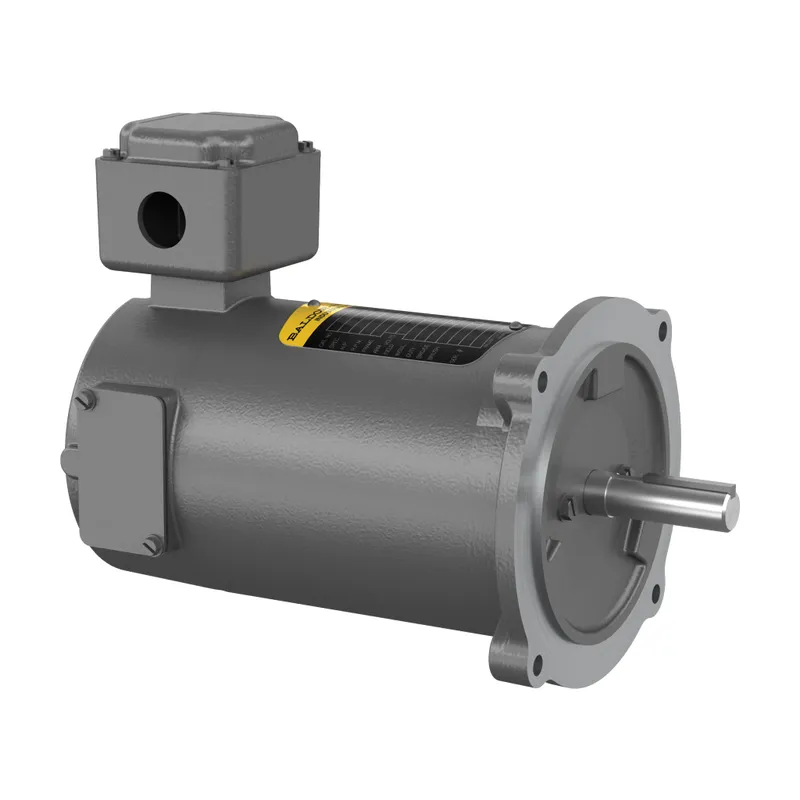

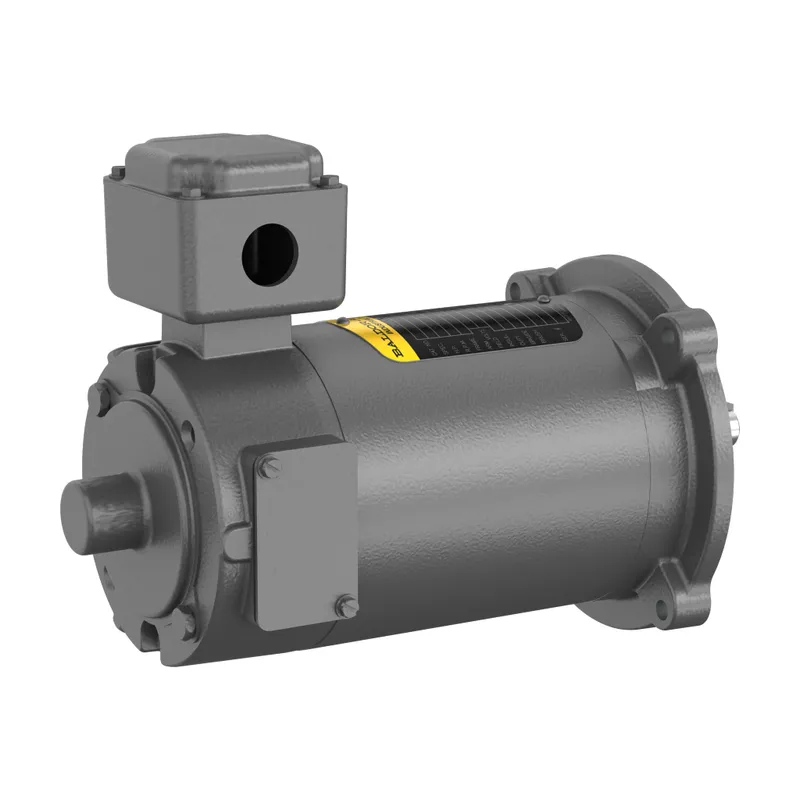

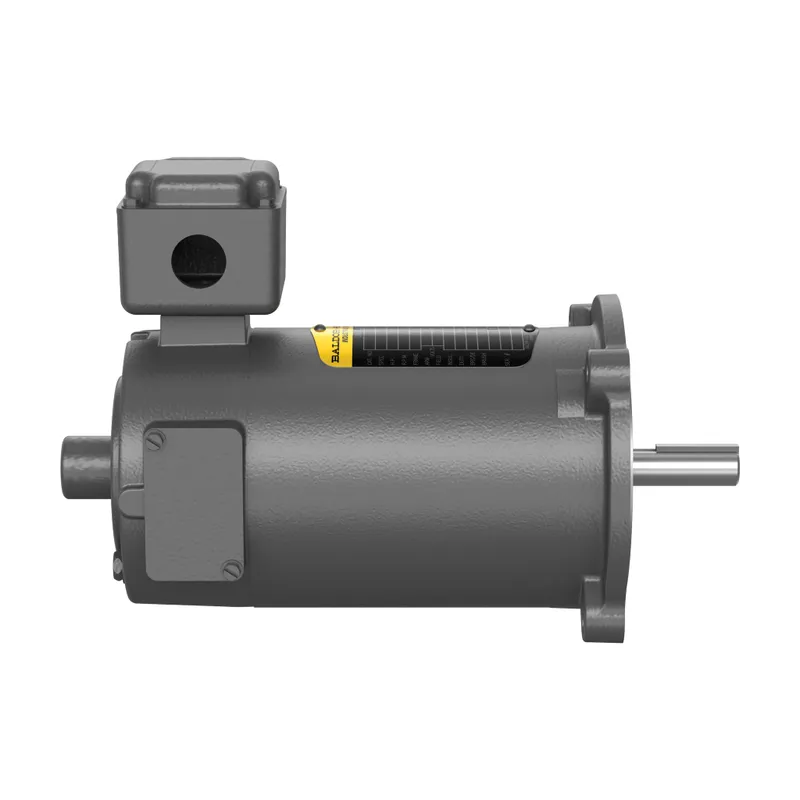

ABB VDP3320

.33HP,1750RPM,DC,56C,3327P,TENV,F1

MPN: VDP3320

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VDP3320?

.33HP,1750RPM,DC,56C,3327P,TENV,F1,N

Specifications

Additional Information

ABB Type Designation	.33HP,1750RPM,DC,56C,3327P,TENV,F1,
Ambient Temperature	40 °C
Armature Current	3.2 A A
Armature Inertia	10.54 ft·lbf
Armature Voltage	90 V V
Base Speed	1750 r/min
Bearing	6203, Sealed Bearing
Bearing NDE	6203
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	VDP3320
Certification Agency	CSA, UR
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Drive End Flange Type	Standard
Enclosure Type	TENV
Frame Material	Steel
Frame Size	56
Global Commercial Alias	VDP3320
Gross Volume	3496.049 in³
Gross Weight	28 lb
Insulation Class	F
Invoice Description	.33HP,1750RPM,DC,56C,3327P,TENV,F1,N
Made To Order	No
Medium Description	DC Permanent Magnet Standard, .33 HP, 0.000 RPM, Frame Size 56C, TENV Enclosure, 0.000 V, 0.000 HZ (VDP3320) V
Minimum Order Quantity	1 piece
Motor Base Type	Footless
Motor Frame Size	56C
Mounting Orientation	Horizontal
Order Multiple	1 piece
Output Power	0.33 Hp
Product Name	DC Permanent Magnet Standard
Product Net Depth / Length	19.375 in
Product Net Height	13.123 in
Product Net Weight	28 lb
Product Net Width	13.75 in
Product Type	Undefined
Quote Only	No
Rated Speed	1750 r/min
Selling Unit of Measure	piece
Service Factor	1.00
Shaft Diameter	0.63 in
Short Description	.33 HP, 0.000 RPM, Frame Size 56C, TENV, 0.000 V V
Standards	NEMA
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Type of Duty	Continuous
