Home / ABB / Grain Dryer - Vane axial fan / ABB UCM1014

ABB

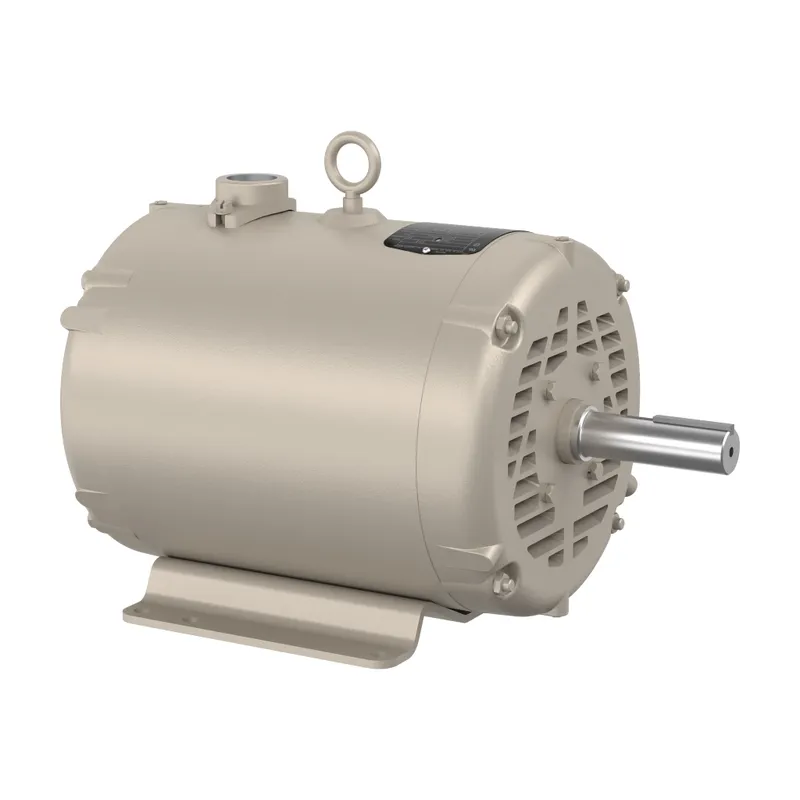

ABB UCM1014

10-15HP,3450RPM,3PH,60HZ,215Z,3726M

MPN: UCM1014
Category: Grain Dryer - Vane axial fan

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB UCM1014?

Farm Duty Motor 10 Hp 208 V (UCM1014)

Specifications

Ordering

Catalog Number	UCM1014
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt, Premium Efficiency (NEMA 12-12), Undefined Efficiency
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	89 %
Rated Efficiency	85.50 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	10 Hp, 15.000 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	215Z
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	15.125 in
Product Net Weight	102 lb
Product Net Width	16.125 in
Dimension Diagram	37LYE766

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1317 >> Farm duty motor AC
ETIM 7	EC001851 - Electric motor
