ABB

ABB UCC10150

10-15HP,3450RPM,1PH,60HZ,215Z,3740C

MPN: UCC10150
Category: Farm duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB UCC10150?

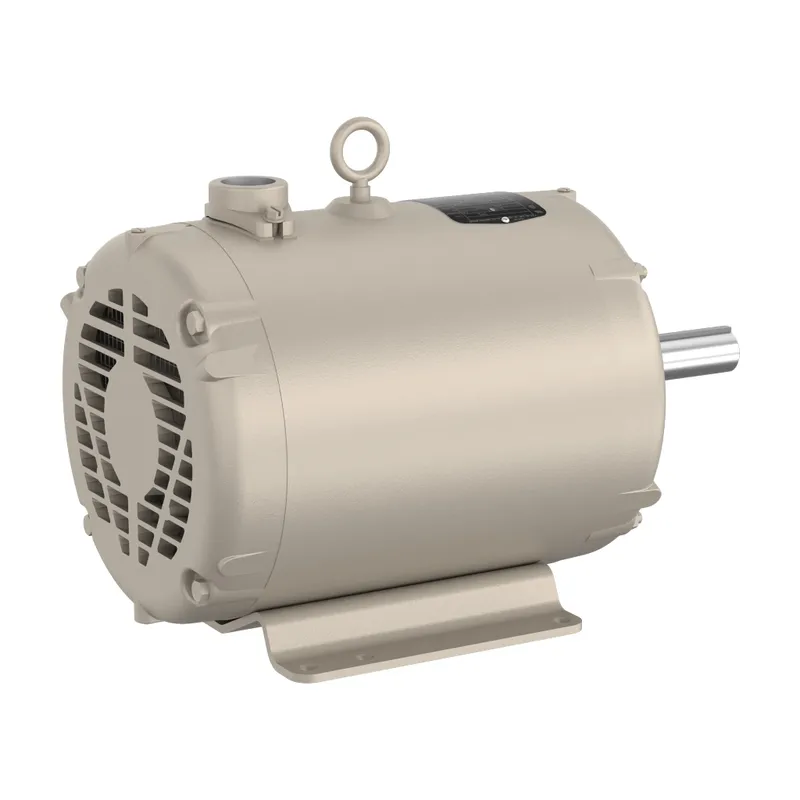

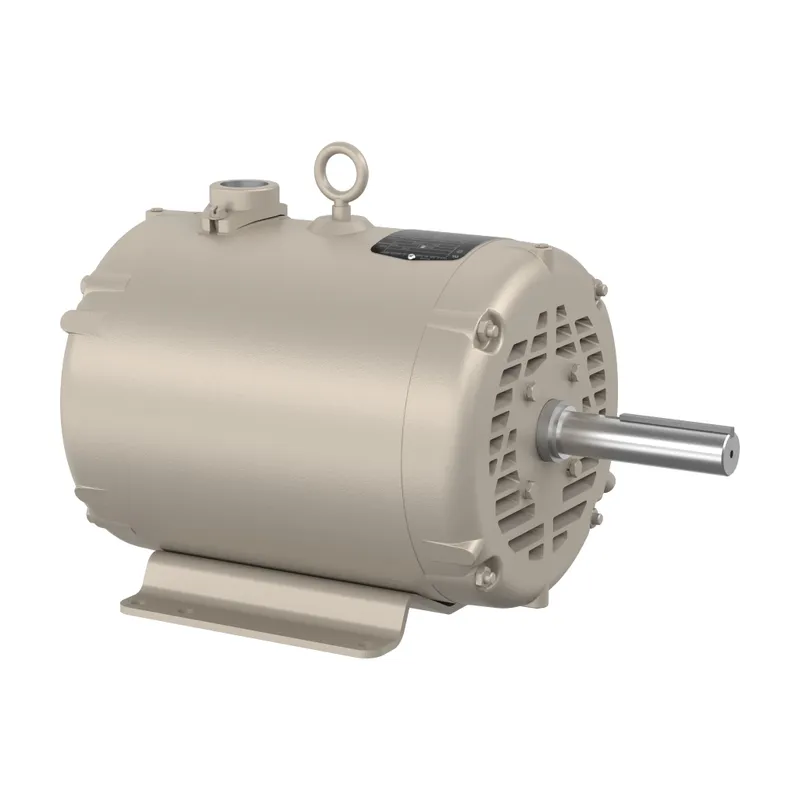

Farm Duty Motor 10 Hp 230 V (UCC10150)

Specifications

Ordering

Catalog Number	UCC10150
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
Number of Phases	1-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	98 %
Rated Efficiency	83 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	10 Hp, 15.000 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	215Z
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	17.375 in
Product Net Weight	127 lb
Product Net Width	16.5 in
Dimension Diagram	37LYE764

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1317 >> Farm duty motor AC
ETIM 7	EC001851 - Electric motor
