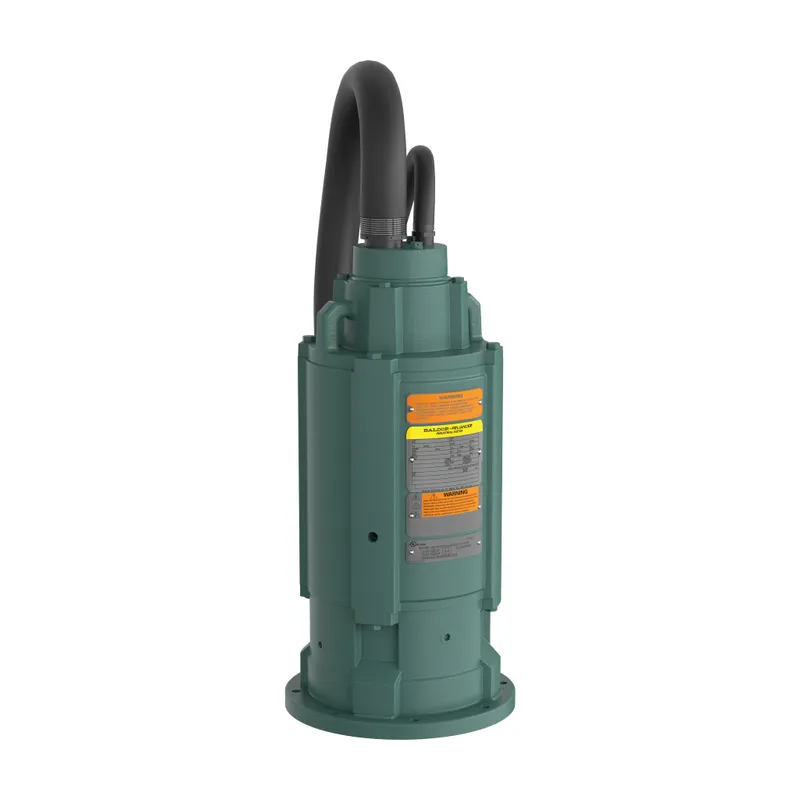

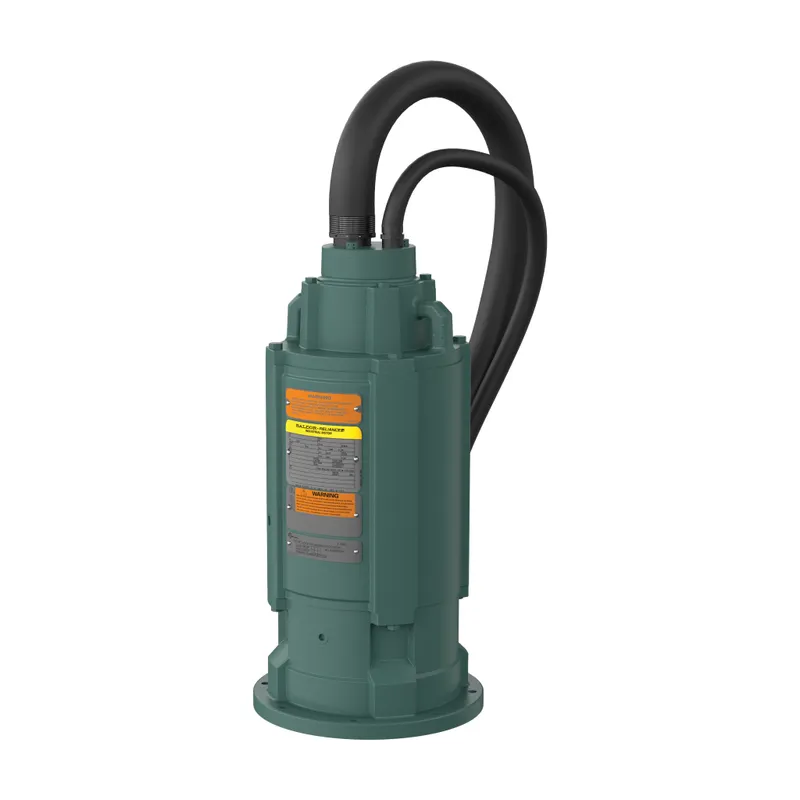

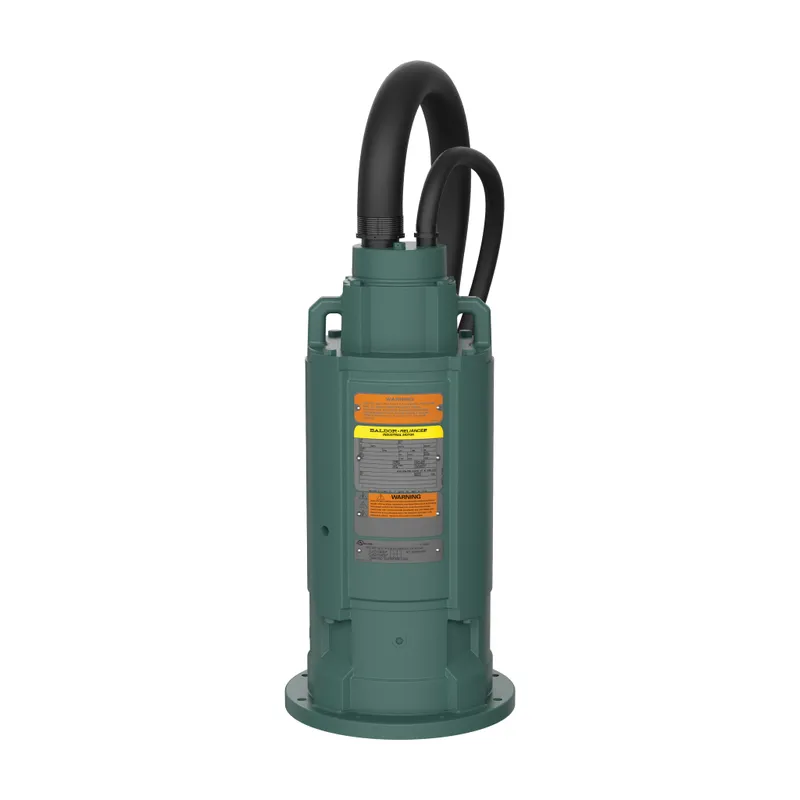

ABB SUM70204SM
2HP,1760RPM,3PH,60HZ,180TY,XPNV,V1
- MPN
- SUM70204SM
- Category
- Submersible
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB SUM70204SM?
Pump Motor 2 Hp 230 V (SUM70204SM)
Specifications
Ordering
| Catalog Number | SUM70204SM |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 0 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Rated Efficiency | 73.50 % |
| Service Factor | 1.15 |
| Temperature Class | T3C |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 2 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TENV |
| Explosion Proof Group Class | Class I, Group C & D |
| Frame Material | Cast Iron |
| Motor Frame Size | 180TY |
| Motor Base Type | Foot Mounted |
| Mounting Position | V1 |
| Brake Present | No |
Dimensions
| Product Net Height | 49 in |
| Product Net Weight | 230 lb |
| Product Net Width | 30 in |
| Dimension Diagram | 619738-002 |
Certificates and Declarations
| Certification Agency | CCSA US, CULUS, UL |
| IDEA Granular Category Code (IGCC) | 1326 >> Submersible motor AC |
| ETIM 7 | EC001851 - Electric motor |
