Home / ABB / Submersible / ABB SUM20754-4

ABB

ABB SUM20754-4

7.5HP,1770RPM,3PH,60HZ,210TY,TENV,V

MPN: SUM20754-4
Category: Submersible

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB SUM20754-4?

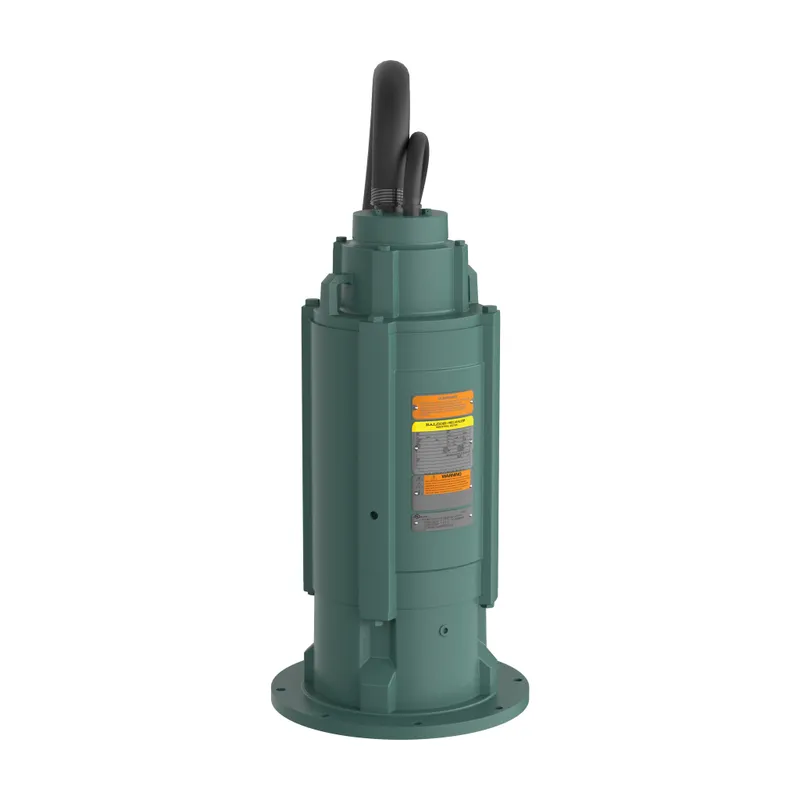

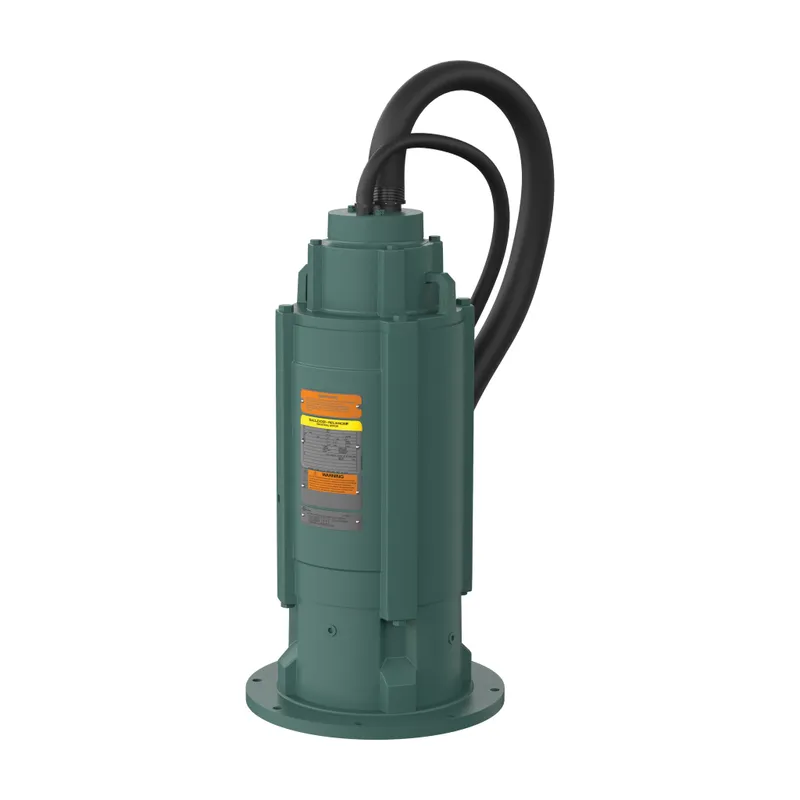

Pump Motor 7.5 Hp 460 V (SUM20754-4)

Specifications

Ordering

Catalog Number	SUM20754-4
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	0 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Rated Efficiency	82.80 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	7.5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TENV
Frame Material	Cast Iron
Motor Frame Size	210TY
Motor Base Type	Foot Mounted
Mounting Position	V1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	340 lb
Product Net Width	0 in
Dimension Diagram	619738-003

Certificates and Declarations

Certification Agency	CCSA US, CE, WEEE
IDEA Granular Category Code (IGCC)	1326 >> Submersible motor AC
ETIM 7	EC001851 - Electric motor
