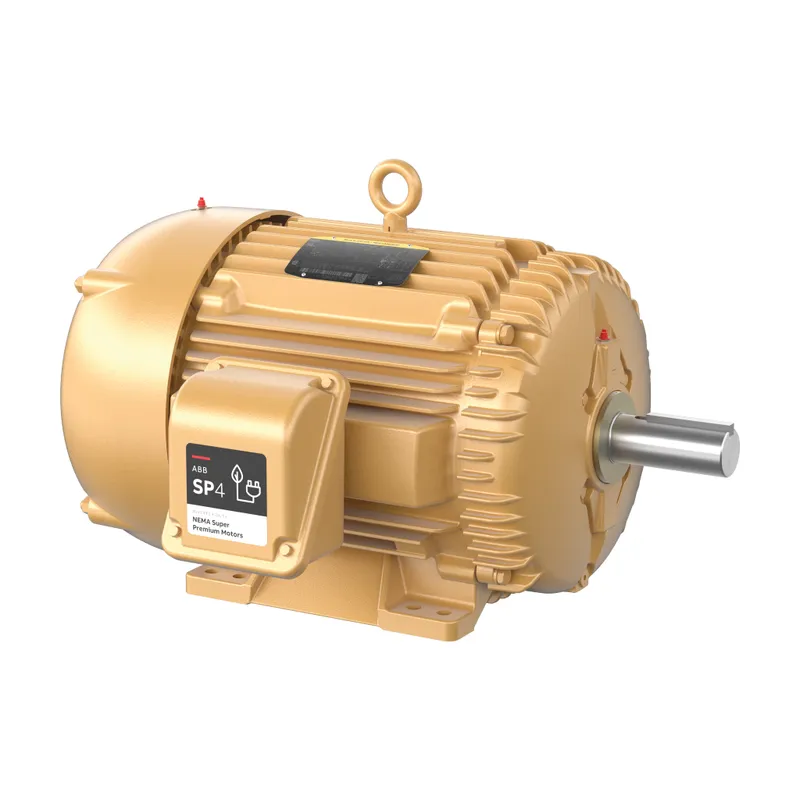

ABB SPM4110T

40HP,1785RPM,3PH,60HZ,324T,1288M,TE

MPN: SPM4110T
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB SPM4110T?

General Purpose Motor 40 Hp 230 V (SPM4110T)

Specifications

Ordering

Catalog Number	SPM4110T
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Super Premium (NEMA 12-23), IE4
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	85 %
Rated Efficiency	95 %
Service Factor	1.15
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1800 r/min
Output Power	40 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D, Class II, Group F & G A
Frame Material	Iron
Motor Frame Size	324T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	720 lb
Product Net Width	0 in

Certificates and Declarations

Certification Agency

CSA
