Home / ABB / Three phase enclosed motor / ABB SPM3545

ABB

ABB SPM3545

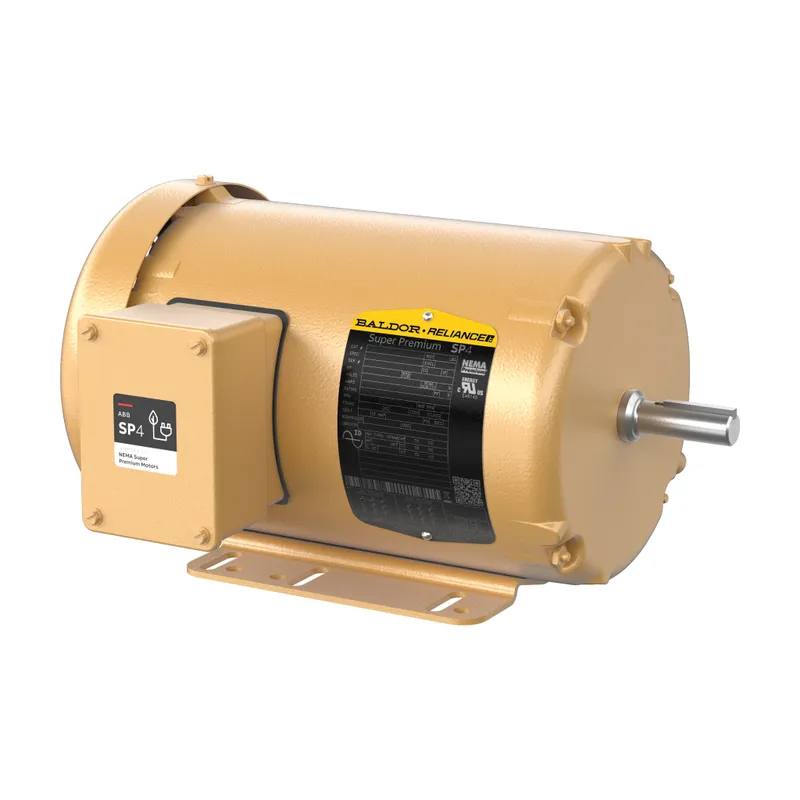

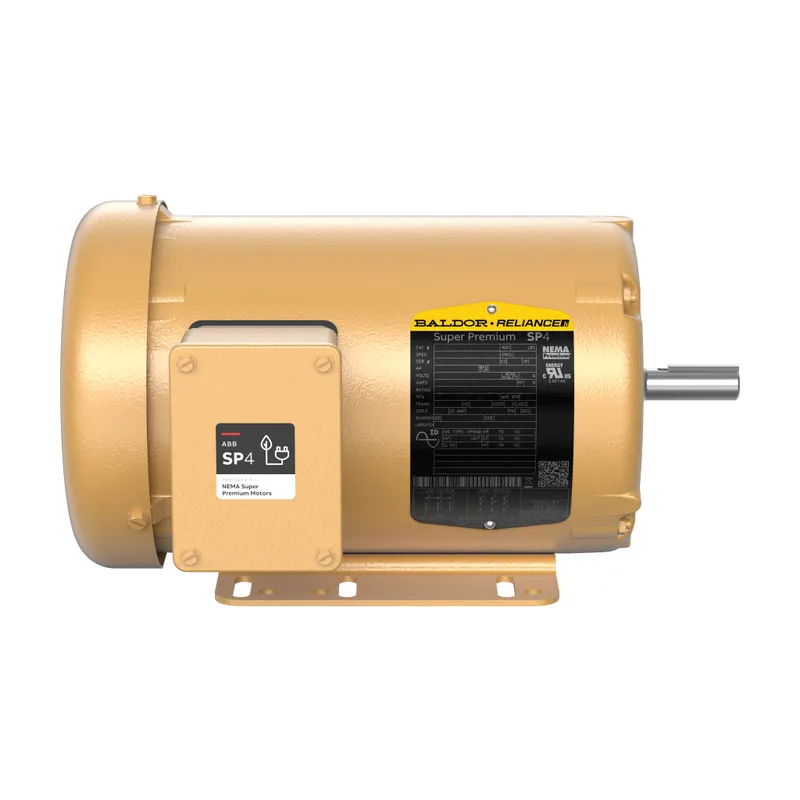

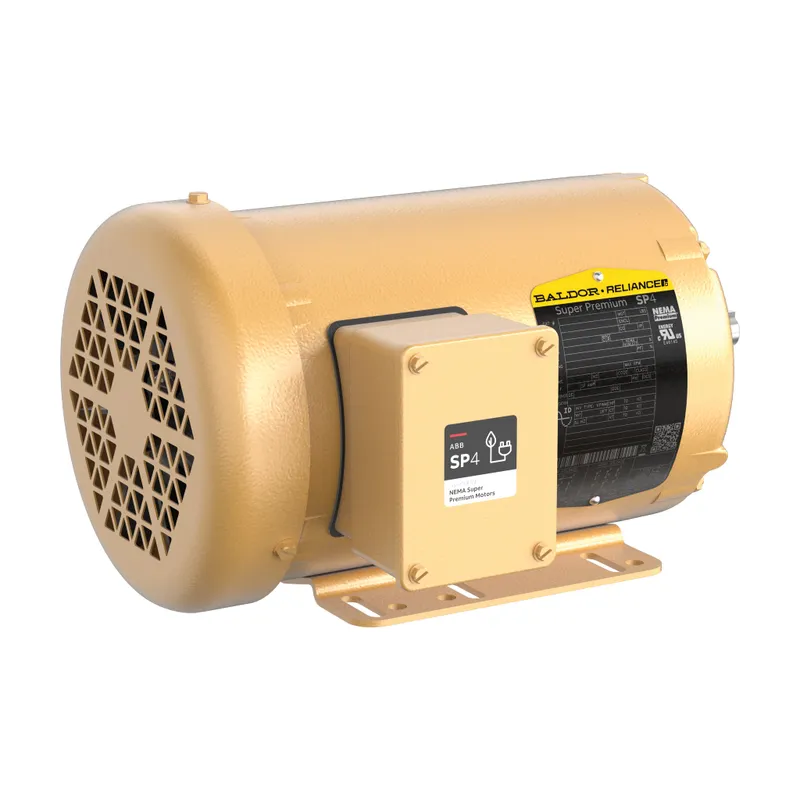

1HP,3450RPM,3PH,60HZ,56H,3516M,TEFC

MPN: SPM3545
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB SPM3545?

General Purpose Motor 1 Hp 230 V (SPM3545)

Specifications

Ordering

Catalog Number	SPM3545
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	2015 Small Motor Standard, IE4, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	single_speed
Power Factor	88 %
Rated Efficiency	82.50 %
Service Factor	1.25
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	3600 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	56H
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	35 lb
Product Net Width	0 in

Certificates and Declarations

Certification Agency

CURUSEEV, NEMA_PREMIUM, WEEE
