Home / ABB / Three phase open motors / ABB SPM31159

ABB

ABB SPM31159

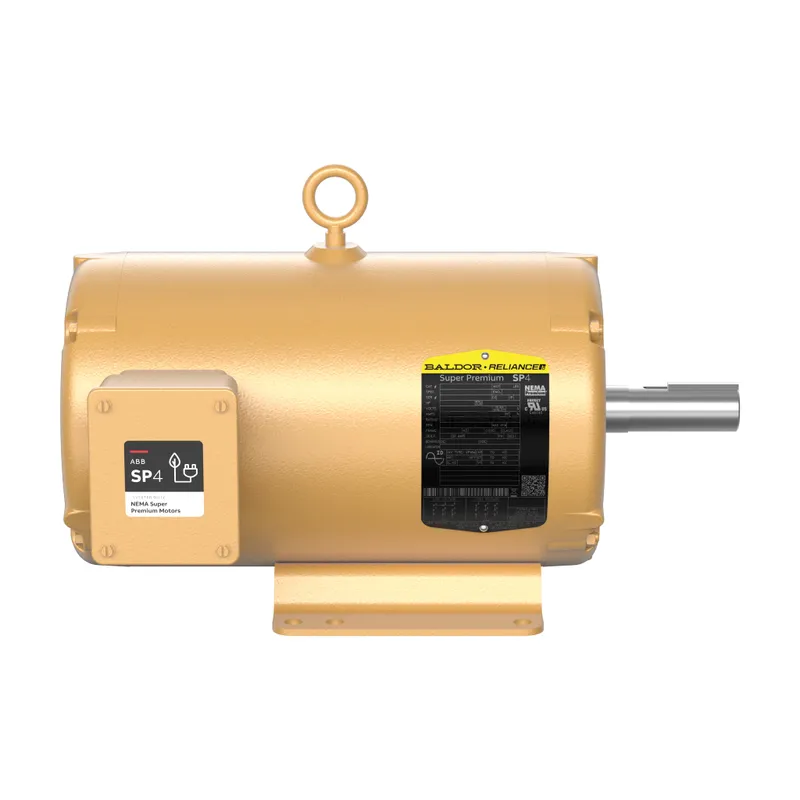

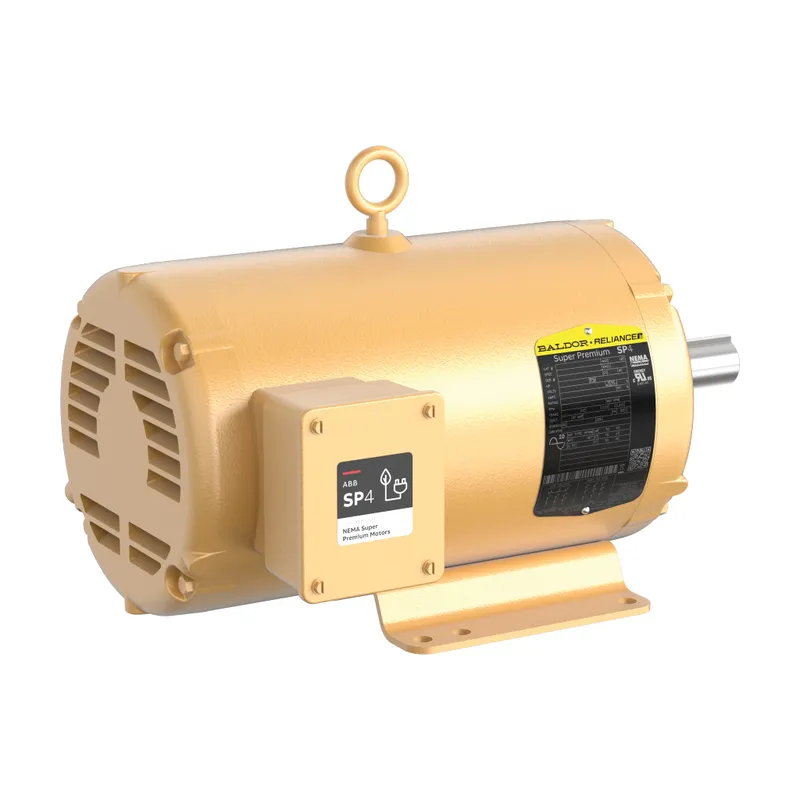

1.5HP,1175RPM,3PH,60HZ,182T,3640M,O

MPN: SPM31159
Category: Three phase open motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB SPM31159?

General Purpose Motor 1.5 Hp 230 V (SPM31159)

Specifications

Ordering

Catalog Number	SPM31159
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	IE4, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	single_speed
Power Factor	63 %
Rated Efficiency	88.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1200 r/min
Output Power	1.5 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	182T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	90 lb
Product Net Width	0 in

Certificates and Declarations

Certification Agency

CURUSEEV, NEMA_PREMIUM, WEEE
