Home / ABB / Three phase open motors / ABB SPM31115
ABB

ABB SPM31115

1HP,3450RPM,3PH,60HZ,56H,3516M,ODP

MPN
SPM31115
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

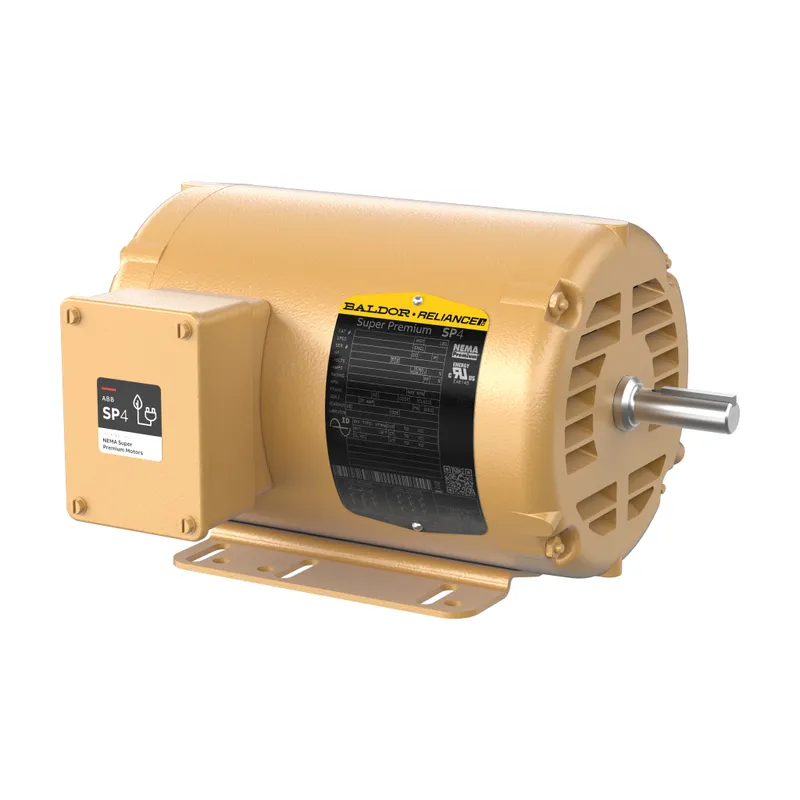

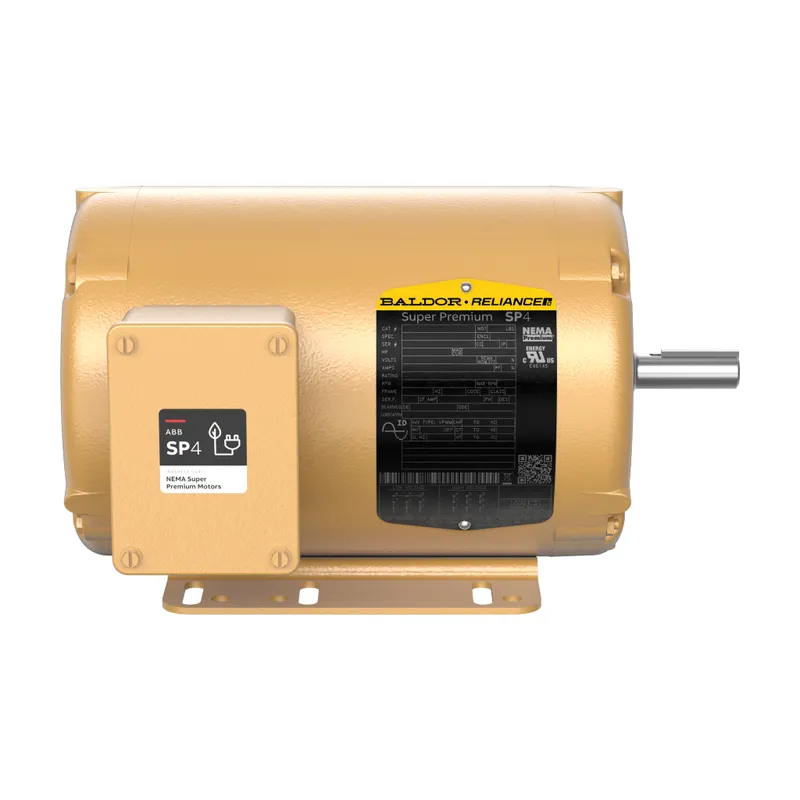

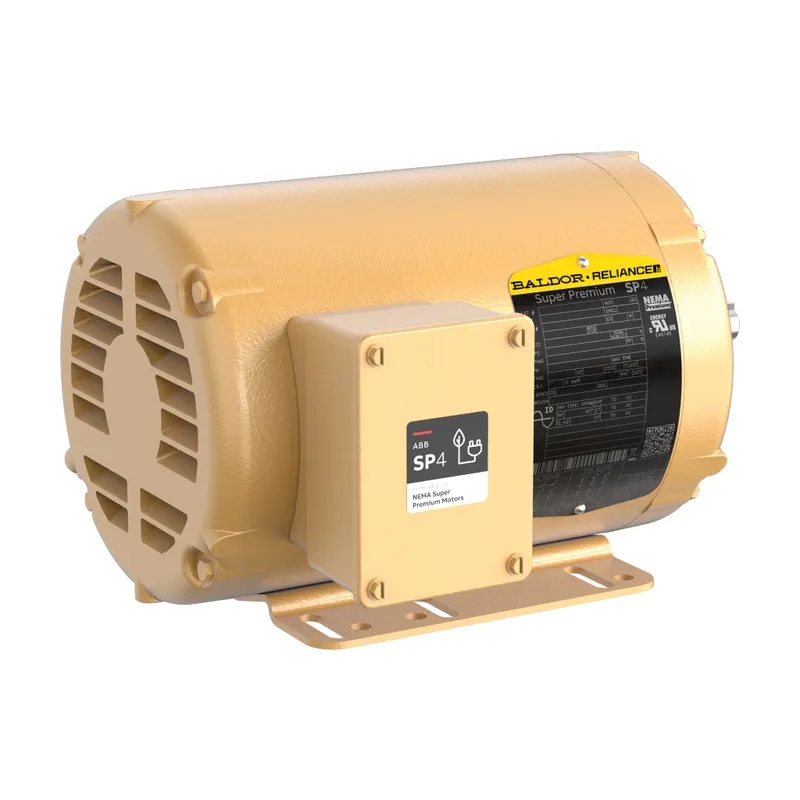

What is the ABB SPM31115?

General Purpose Motor 1 Hp 230 V (SPM31115)

Specifications

Ordering

Catalog NumberSPM31115
Brand / LabelBaldor-Reliance®
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency Level2015 Small Motor Standard, IE4, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of Speedssingle_speed
Power Factor88 %
Rated Efficiency82.50 %
Service Factor1.25
Type of DutyContinuous
Starting of MotorDirect on line
Synchronous Speed (vsyn)3600 r/min
Output Power1 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size56H
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height0 in
Product Net Weight35 lb
Product Net Width0 in

Certificates and Declarations

Certification AgencyCURUSEEV, NEMA_PREMIUM, WEEE

SPM31115: frequently asked questions

When can SPM31115 be shipped?

SPM31115 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SPM31115 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SPM31115 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPM31115, subject to availability and destination.
