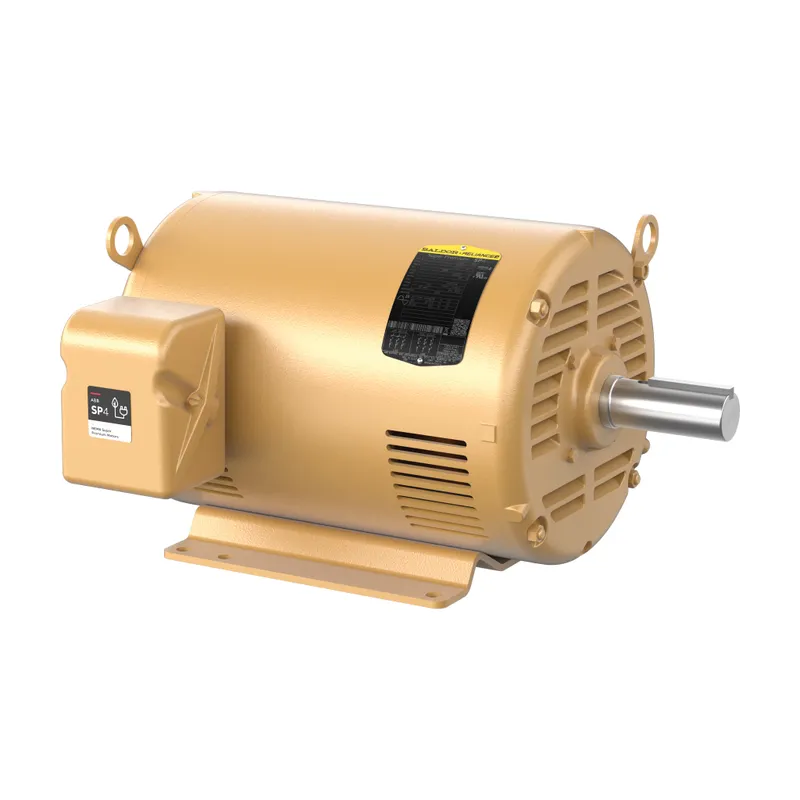

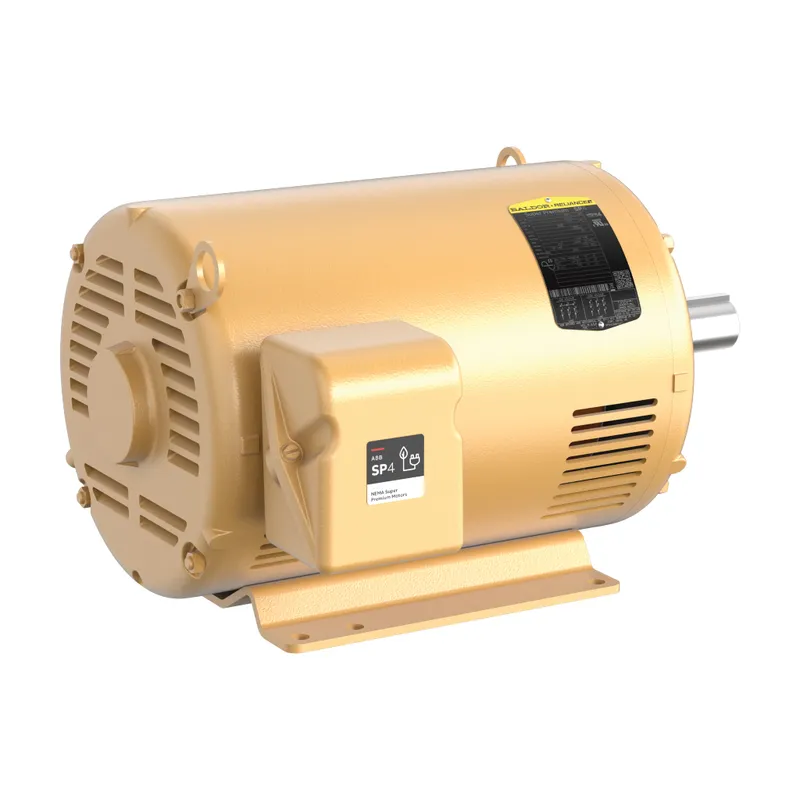

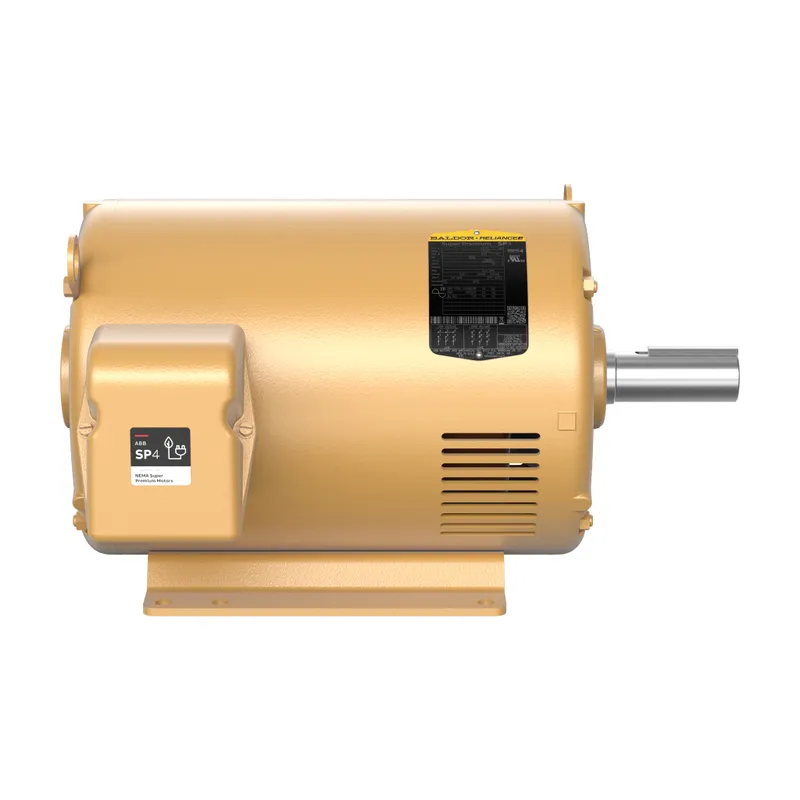

ABB SPM2513T-G
15HP,1770RPM,3PH,60HZ,254T,3958M,OP
- MPN
- SPM2513T-G
- Category
- SP4 Super Premium HVAC Open
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB SPM2513T-G?
15 Hp 230 V (SPM2513T-G)
Specifications
Ordering
| Catalog Number | SPM2513T-G G |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Super Premium (NEMA 12-23) |
| Insulation Class | H |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Service Factor | 1.25 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 15 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | OPSB |
| Frame Material | Steel |
| Motor Frame Size | 254T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 289 lb |
| Product Net Width | 0 in |
| Dimension Diagram | 39LYE775 |
Certificates and Declarations
| Certification Agency | CURUSEEV, NEMA PREMIUM, WEEE |
| ETIM 7 | EC001851 - Electric motor |
