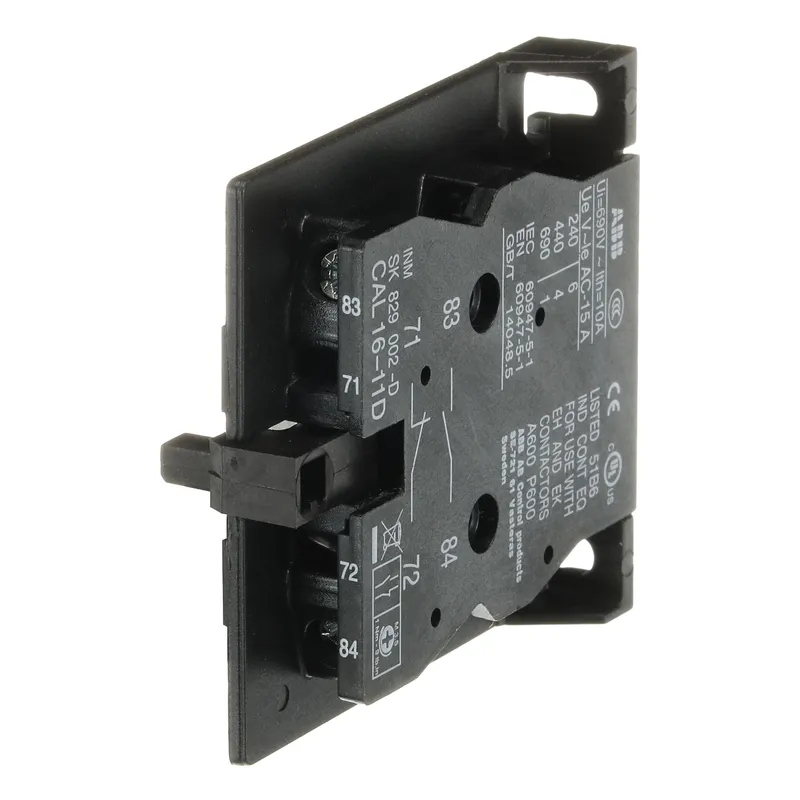

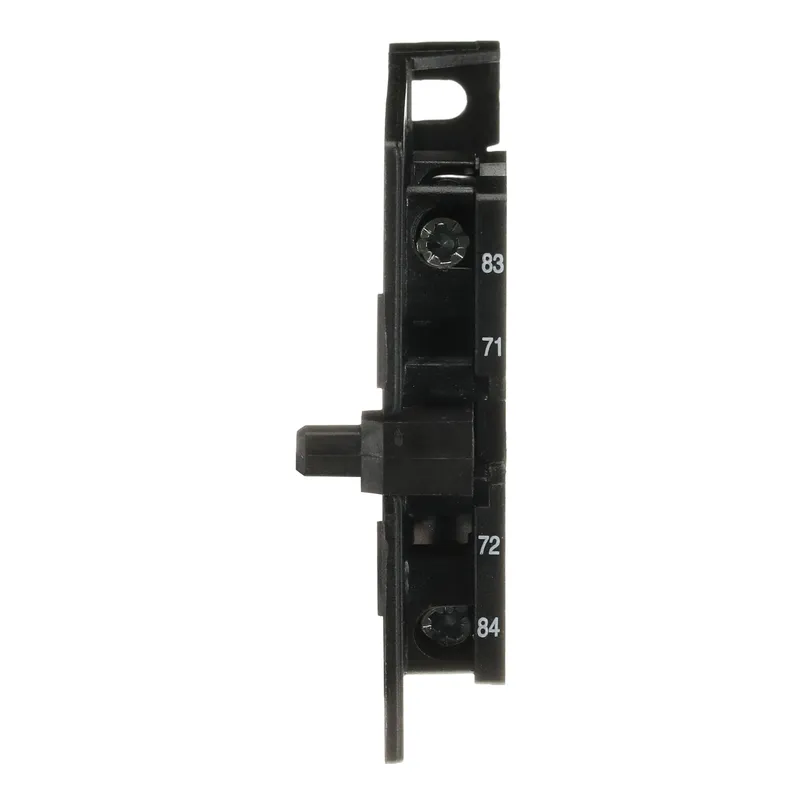

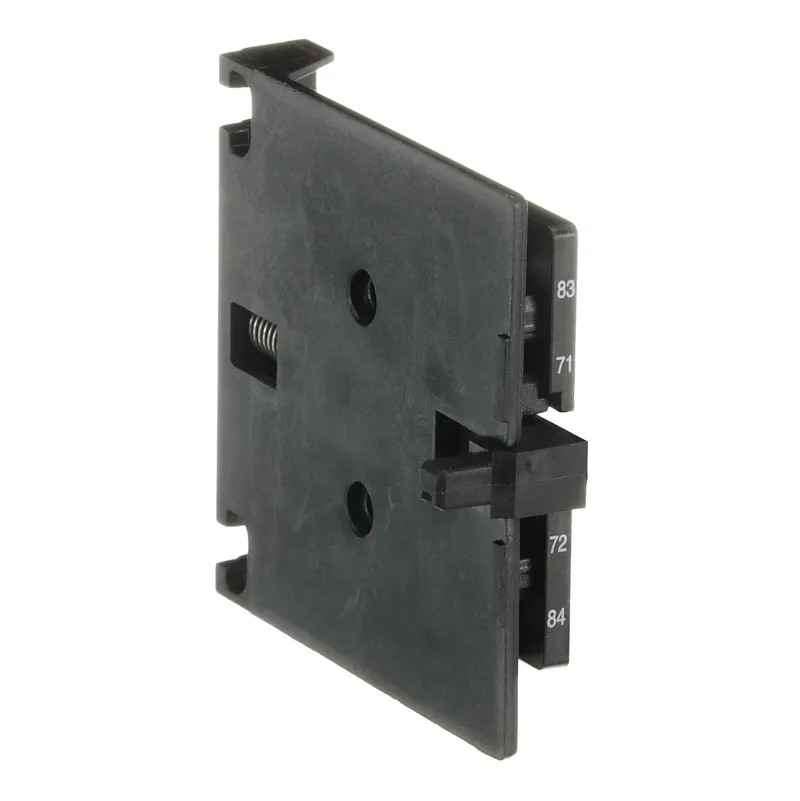

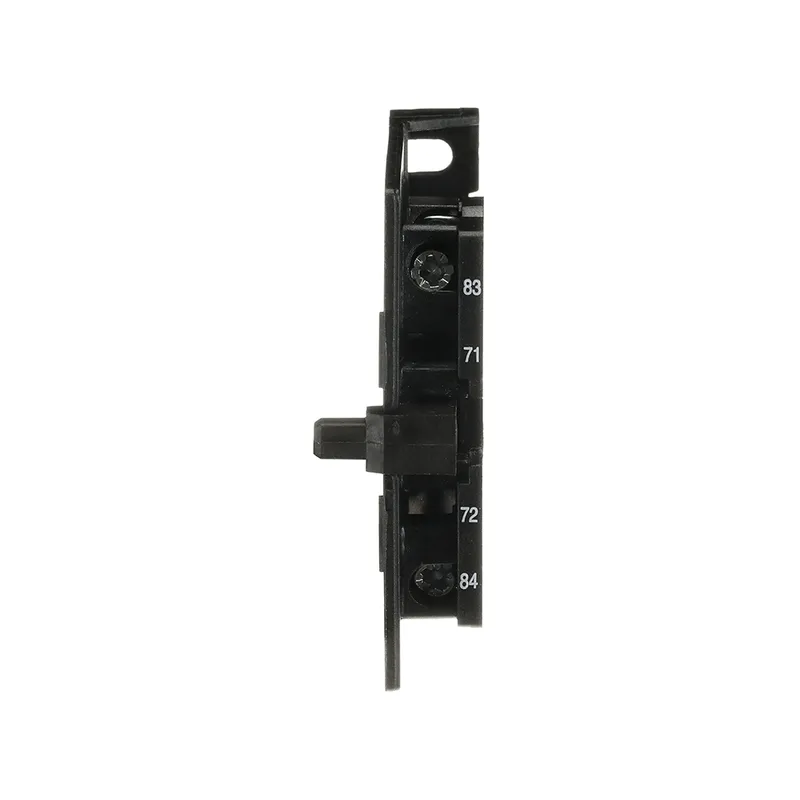

ABB SK829002-D – CAL16-11D Auxiliary Contact Block
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.05 kg |
| Country of origin | India |
| UPC / EAN | 7320500029695 |
Shipping & availability
When can SK829002-D be shipped?
SK829002-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SK829002-D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SK829002-D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SK829002-D, subject to availability and destination.
2 pole screw type right outer side mounted auxilliary contact block, instantaneous N.O. and N.C. contacts, suitable for standard industrial environments
Specifications
General
| Order code (ABB product ID) | SK829002-D |
| Type | CAL16-11D |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
Dimensions
| Product Net Width | 12.5 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Height | 68 mm |
| Product Net Weight | 0.05 kg |
Technical
| Rated Frequency (f) | Supply Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (500 V) 1 A, (690 V) 1 A, (24 / 127 V) 6 A, (220 / 240 V) 6 A, (380 / 400 V) 4 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 6 A, (48 V) 6 A, (72 V) 4 A, (125 V) 1.8 A, (250 V) 0.6 A |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 0.1 s 100 A, for 1 s 50 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
| Minimum Switching Capacity | 0.25 VA/ 12 V / 5 mA |
| Power Loss | at Rated Operating Conditions per Pole 0.2 W |
| Degree of Protection | IP20 |
| Suitable For | EH175, EH210, EH260, EH300, EH370, EH450, EH550, EH700, EH800, EH1200, EHDB220, EHDB280, EHDB360, EHDB520, EHDB650, EHDB800, EHDB960, EK110, EK150, EK175, EK210, EK370, EK550, EK1000 |
| Suitable for Product Class | Block Contactors |
| Product Name | Auxiliary Contact Block |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| E-Number (Finland) | 3846772 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
More ABB parts

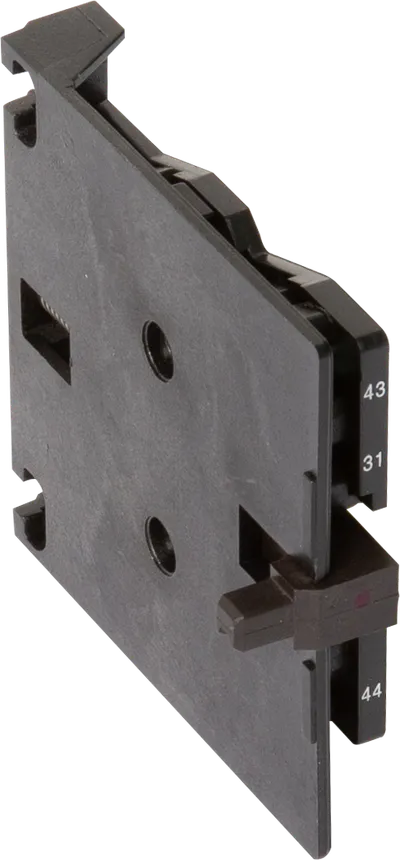

Available on requestCAL16-11A Auxiliary Contact Block

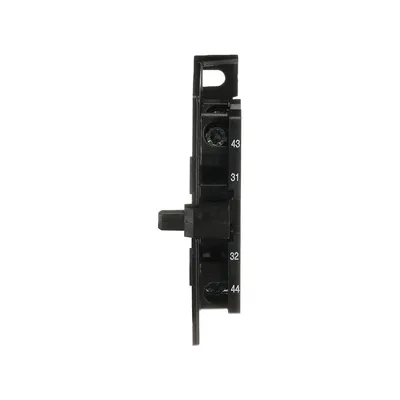

Available on requestCAL16-11B Auxiliary Contact Block

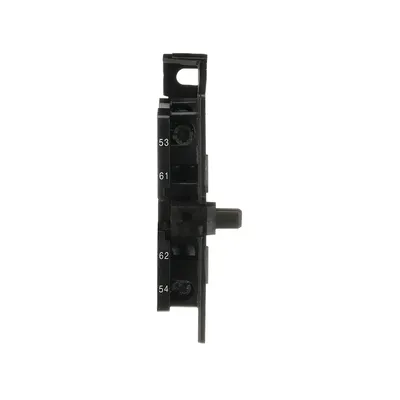

Available on requestCAL16-11C Auxiliary Contact Block
Available on requestCCL16-11E Auxiliary Contact BlockAvailable on requestCAL16-11L Auxiliary Contact BlockAvailable on requestCAL16-11M Auxiliary Contact Block

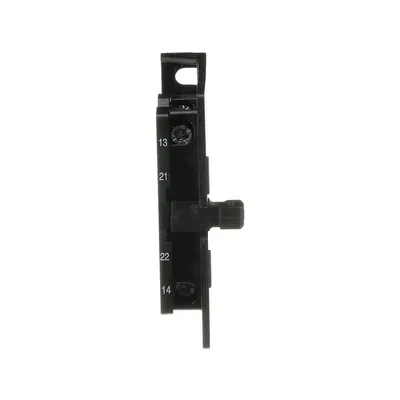

Available on requestCAL16-11N Auxiliary Contact Block
