Home / ABB / ABB contactor spare parts (coils, arc chutes) / EHDB280-21-11 110V 50Hz Contactor

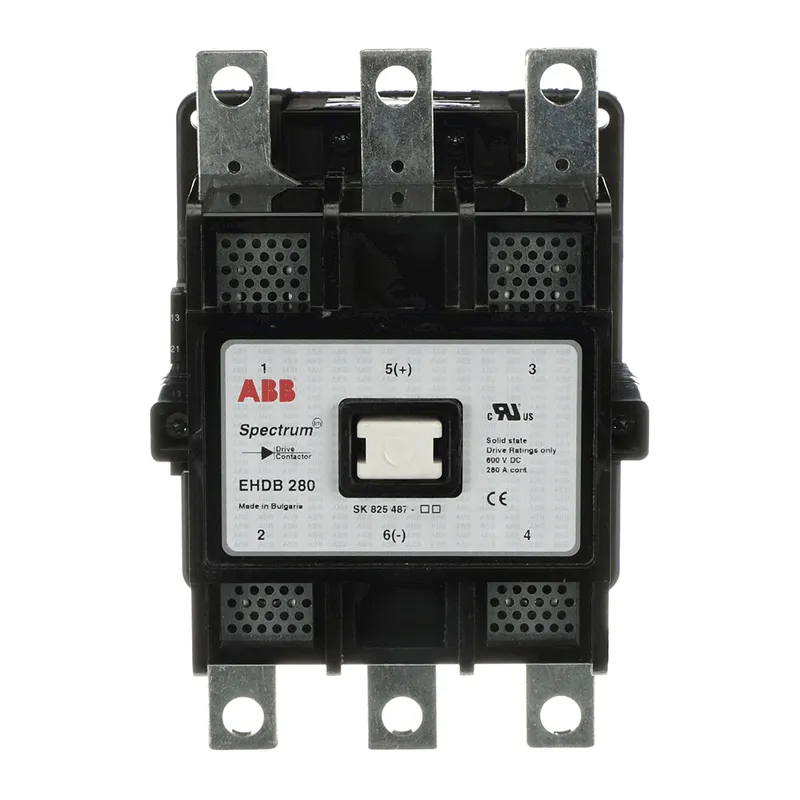

EHDB280-21-11 110V 50Hz Contactor — photo 1 of 4

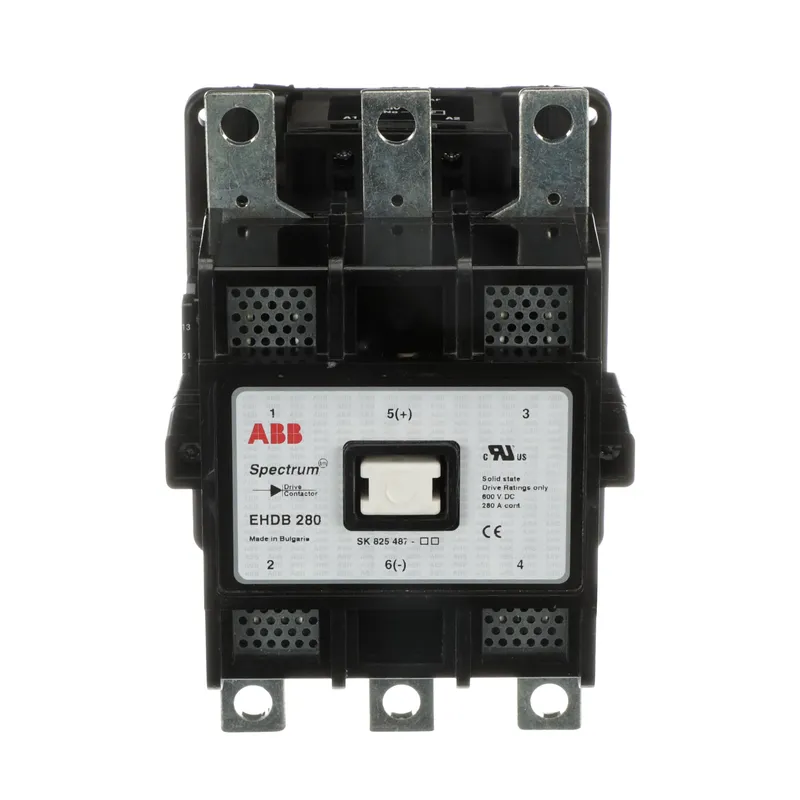

EHDB280-21-11 110V 50Hz Contactor — photo 2 of 4

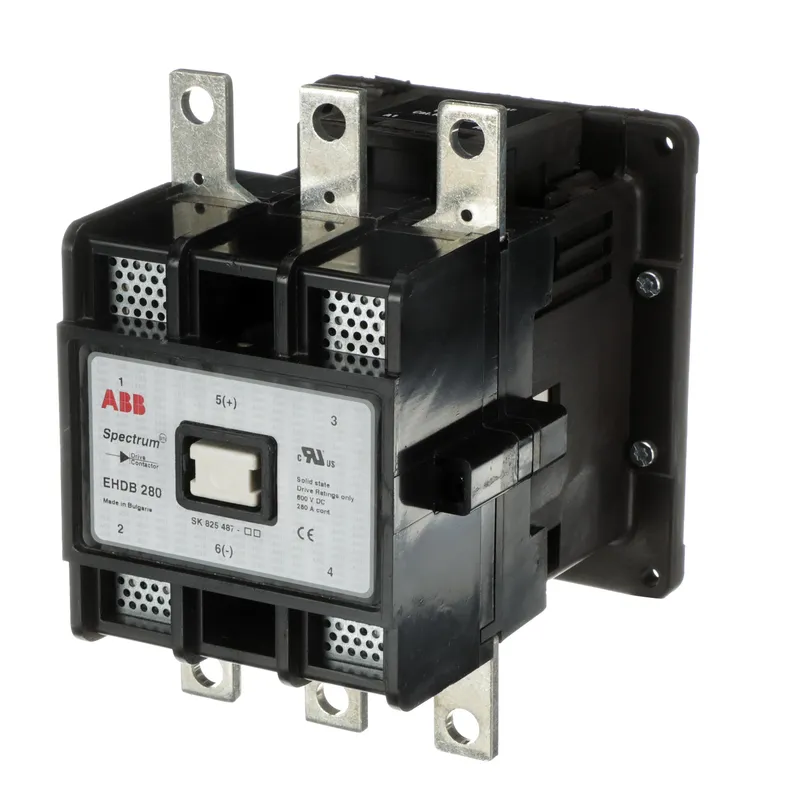

EHDB280-21-11 110V 50Hz Contactor — photo 3 of 4

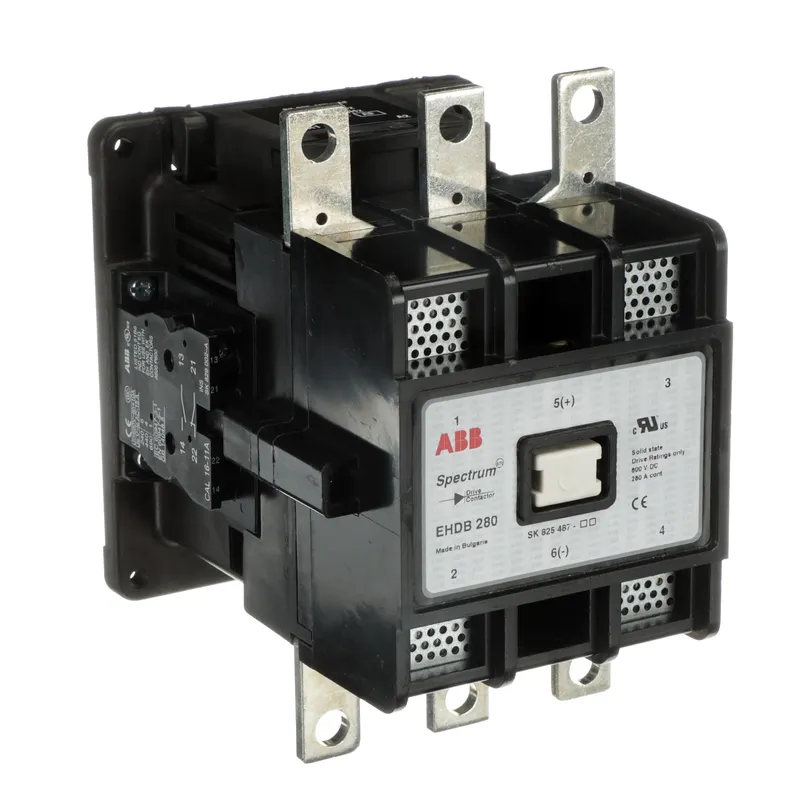

EHDB280-21-11 110V 50Hz Contactor — photo 4 of 4

Available on request

ABB SK825487-AF – EHDB280-21-11 110V 50Hz Contactor

MPN: SK825487-AF · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB contactor spare parts (coils, arc chutes)
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	3.6 kg
UPC / EAN	7320500073537

Shipping & availability

When can SK825487-AF be shipped?

SK825487-AF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SK825487-AF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SK825487-AF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SK825487-AF, subject to availability and destination.

EHDB280-21-11 110V 50Hz Contactor

Specifications

General

Order code (ABB product ID)	SK825487-AF
Type	EHDB280-21-11
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	136 mm
Product Net Depth / Length	169 mm
Product Net Height	198 mm
Product Net Weight	3.6 kg

Technical

Number of Main Contacts NO	2
Number of Main Contacts NC	1
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Number of Poles	3P
Rated Operational Current AC-1 (I<sub>e</sub>)	(690 V) 40 °C 280 A
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 110 V
Terminal Type	Main Circuit: Bars
Product Name	Block Contactor

Material Compliance

SCIP	2c345836-121c-417b-a6a8-b6127c1f5b52 Bulgaria
Simplified SCIP	0bb2e963-9d70-4cb8-9fc8-cba9d3e8b27e Germany, 400590c9-7f95-4676-8a8d-6ef93a39362a Spain, 5fc7d21c-19de-4d7e-9edf-17e4a7523184 Greece, 5ff09550-946c-4c1a-a66c-54008013d305 Poland, 734284e9-8d05-4e3f-8211-52e5a55c91d1 Sweden, 74249f4f-c091-43b8-802e-52cbed2fdc3e Poland, 75dd0b8f-d3a9-4f3f-bb4c-67d08b530b3e Belgium, 7731c39d-5d4d-452b-b31d-302c3ee39dd5 Netherlands, 82921f98-e75f-4820-826e-50b59f548549 Estonia, 94c10f99-c1dd-4742-bc78-4203c33c57bc Belgium, 952f4948-57fc-44e0-9f5a-9a58d83ed615 Germany, 981d2414-de1d-4812-9881-3af6d7f426ec Czechia, a5640f3e-c1c2-42d1-a8f5-bf9e2ed95011 Croatia, abcedea7-24d7-4092-9509-368fdeaa3473 Italy, c20c00d4-0c32-4cff-9ba4-0440f1faae23 Germany, c4c0e4a8-98d1-4297-85ff-5269f0348da3 Germany, c8bd09ec-1ac3-45ef-926a-0d0b8848dac3 France, cc99b215-38e2-4b9c-89dd-b1c67ce05b1b Finland, d7f2a0f9-1cca-4c63-8b47-07adc241881f Germany, d9e75755-6474-41a2-b51d-eb94ae00902d Hungary, e0890de9-cd9f-45f3-a4b1-82b0df7d1849 Norway, e0ae0cca-d537-4931-abcf-203bd655a534 Poland, e365d66c-8979-44c2-bfe5-c00ce77a02d1 Portugal, f19937f7-6805-4a5c-8e99-5a4d778e5782 Denmark, f3e3886c-f95a-4107-af6a-a7cecb0532ab France, f98e8645-a0ec-4fcb-be0f-6f2e253027af Hungary, fb442adc-c66b-42b4-9c4e-9500a559ea3d Sweden
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4755 >> Contactors
