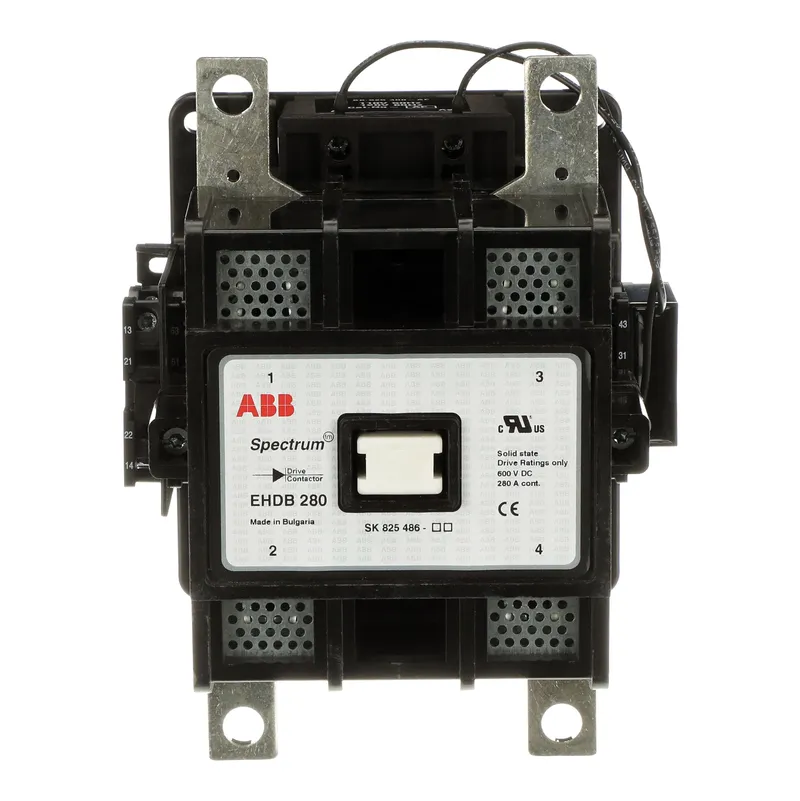

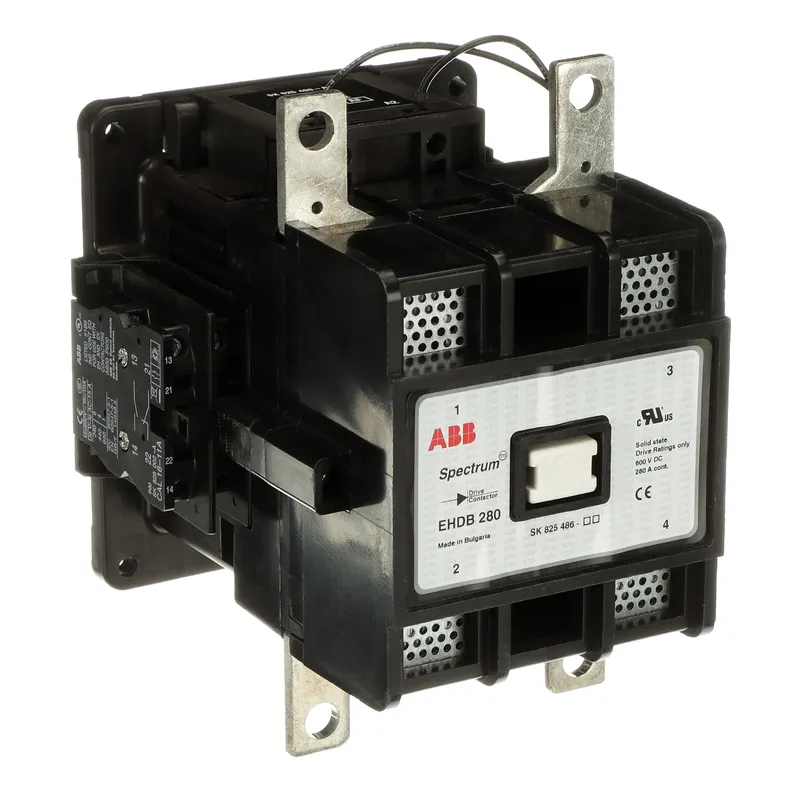

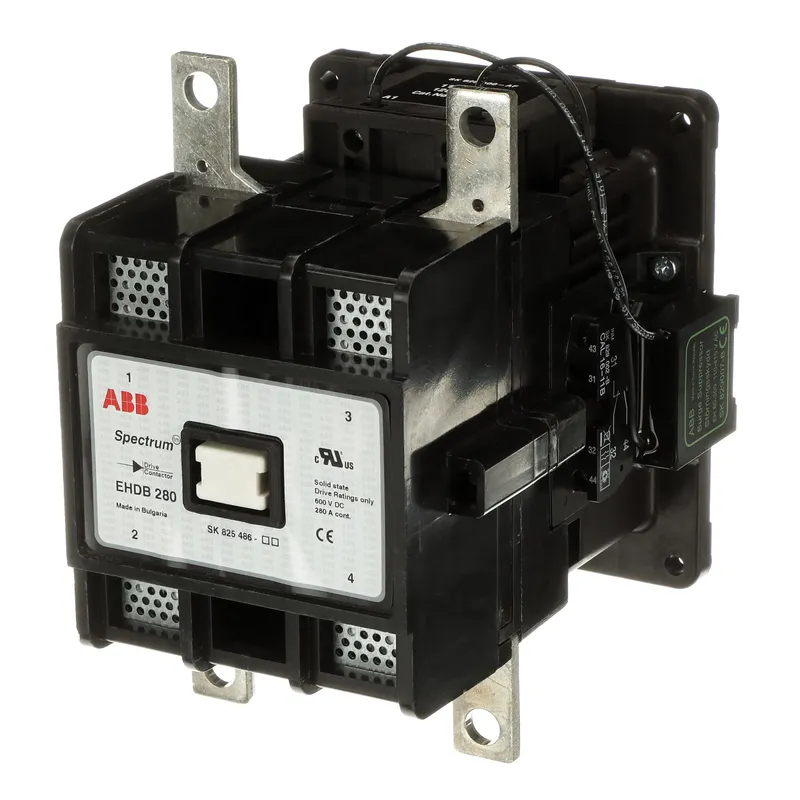

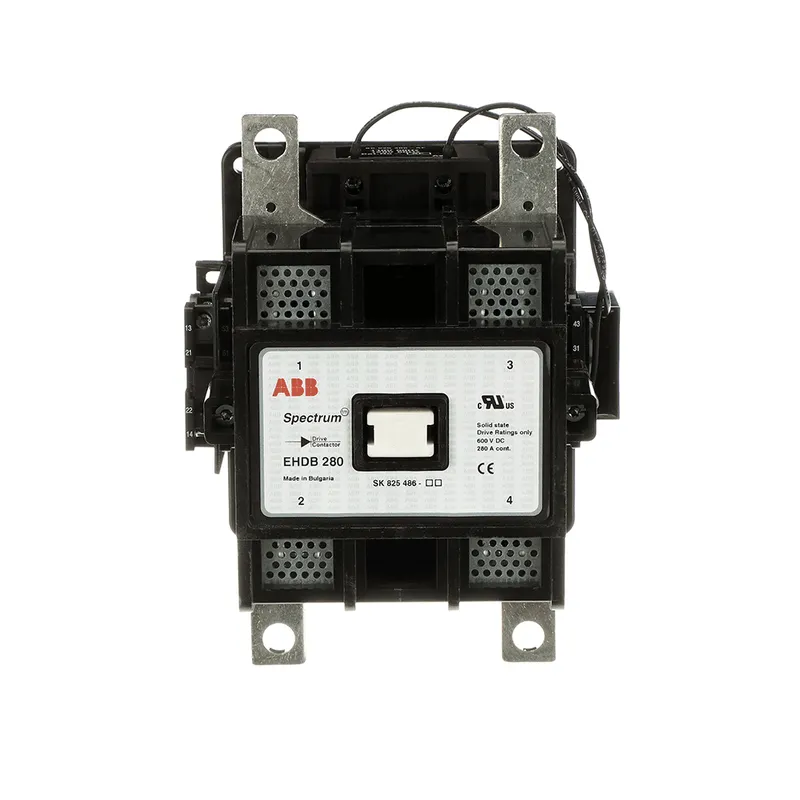

ABB SK825481-GF – EHDB280-20-33-RC 110V 50Hz 120V 60Hz Contactor
MPN: SK825481-GF · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | ABB contactor spare parts (coils, arc chutes) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.6 kg |
| UPC / EAN | 7320500559154 |
Shipping & availability
When can SK825481-GF be shipped?
SK825481-GF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SK825481-GF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SK825481-GF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SK825481-GF, subject to availability and destination.
EHDB280-20-33-RC 110V 50Hz 120V 60Hz Contactor
Specifications
General
| Order code (ABB product ID) | SK825481-GF |
| Type | EHDB280-20-33-RC 110V 50Hz 120V 60Hz |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Dimensions
| Product Net Width | 136 mm |
| Product Net Depth / Length | 169 mm |
| Product Net Height | 198 mm |
| Product Net Weight | 3.6 kg |
Technical
| Number of Main Contacts NO | 2 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Rated Operational Current AC-1 (I<sub>e</sub>) | (690 V) 40 °C 280 A |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 50 Hz 110 V |
| Terminal Type | Main Circuit: Bars |
| Product Name | Block Contactor |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4755 >> Contactors |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Instructions and Manuals (5309660-47) |
