Home / ABB / HVAC General Purpose / ABB RM3007A

ABB

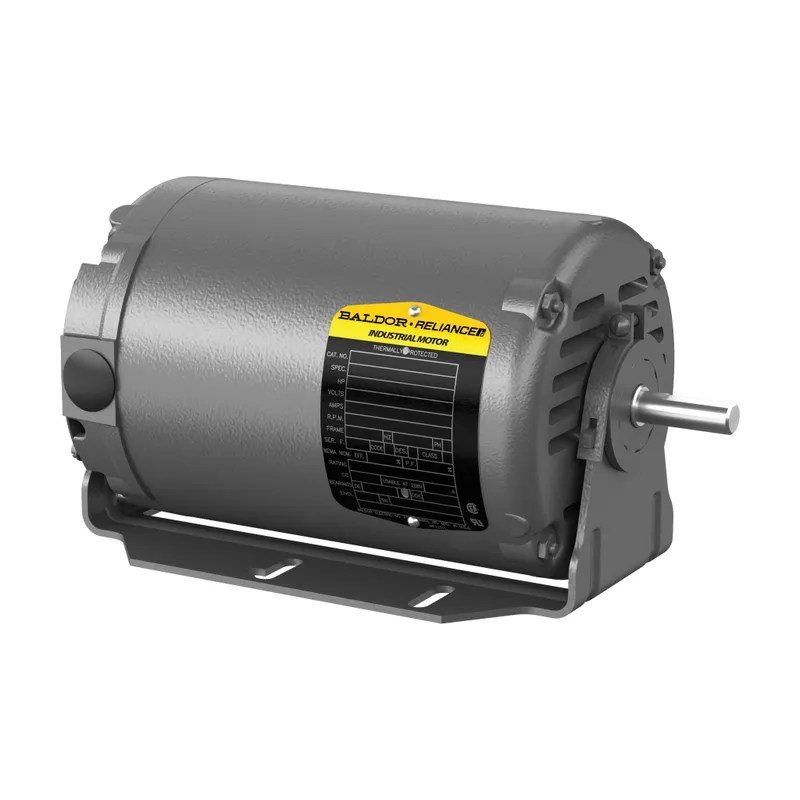

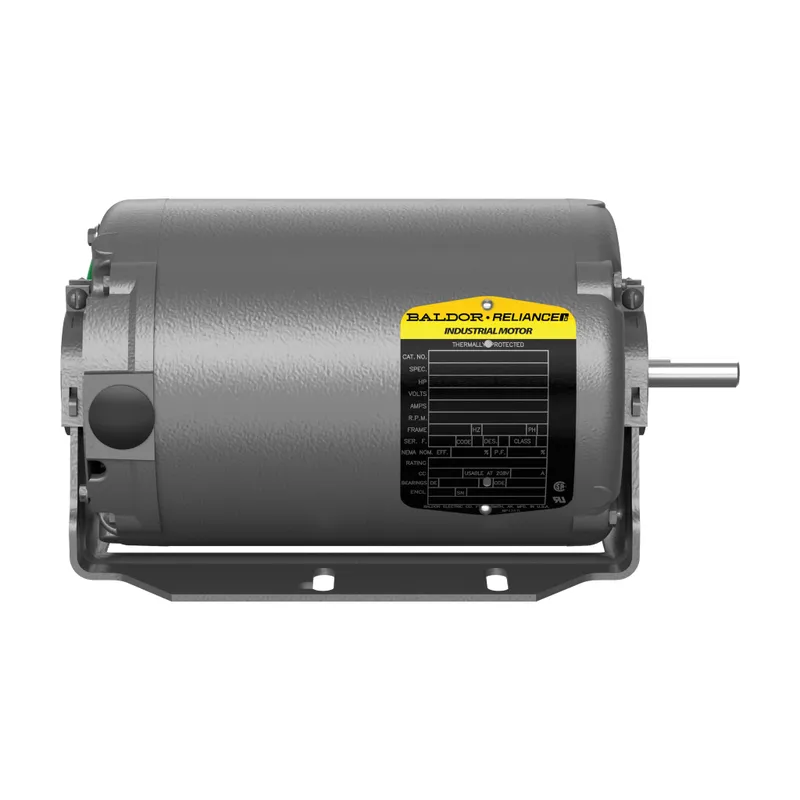

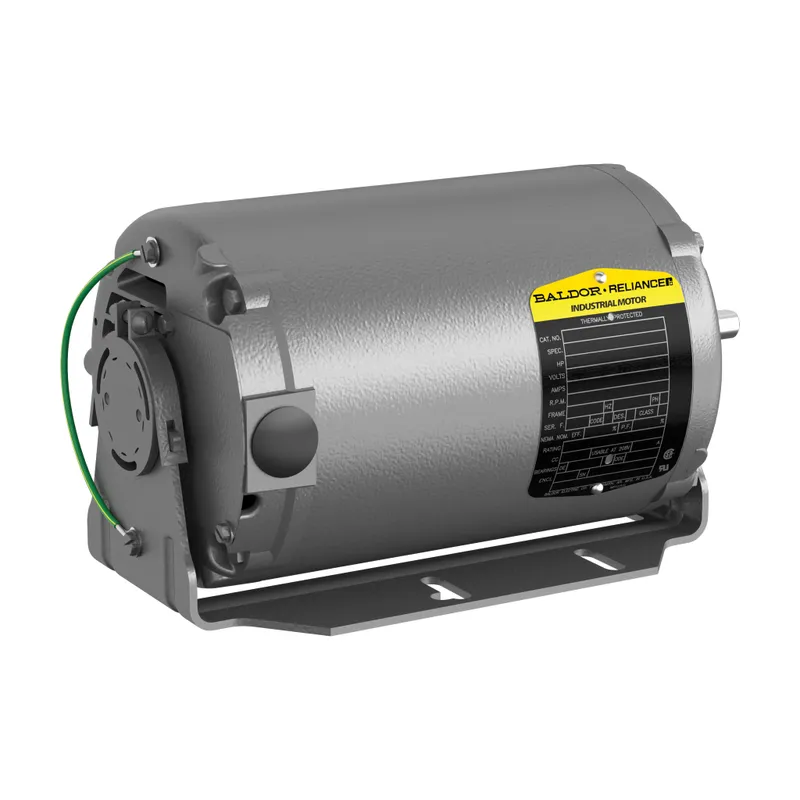

ABB RM3007A

.33HP,1725RPM,3PH,60HZ,48,3413M,OPE

MPN: RM3007A
Category: HVAC General Purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB RM3007A?

Fan and Blower 0.330.000 Hp 208 V (RM3007A)

Specifications

Ordering

Catalog Number	RM3007A
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt, Undefined Efficiency
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	57 %
Rated Efficiency	68 %
Service Factor	1.25
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.330.000 Hp

Mechanical

Drive End Flange Type	Resilient Mount
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	48
Motor Base Type	Resilient
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	21 lb
Product Net Width	11.5 in
Dimension Diagram	34LYK015

Certificates and Declarations

Certification Agency	CURUS, UR
IDEA Granular Category Code (IGCC)	1318 >> Heating and cooling system motor AC
ETIM 7	EC001851 - Electric motor
