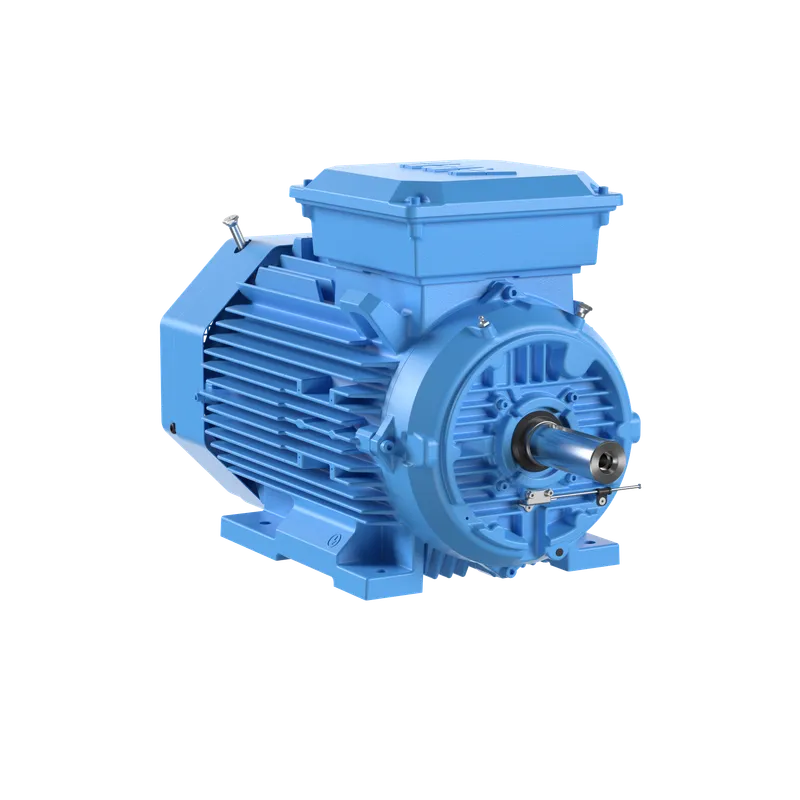

ABB 3GHL182427-AUC

M3HL 180MLB 4

MPN: 3GHL182427-AUC
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB 3GHL182427-AUC?

Inceased Safety IE5 Ex eb SynRM Motors, 22 kW, 690 V, (3GHL182427-AUC)

Specifications

Ordering

ABB Type Designation	M3HL 180MLB 4
Invoice Description	M3HL 180MLB 4
Product Name	3Phase Synchronous reluctance motor
Product Type	3HL5__M3HL_IE5_SynRM_Ex
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	22kW, 4P, Frame Size 180, 3 Phases, 690V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GHL182427-AUC)
Short Description	22kW, 4P, Frame Size 180, 3PH, 690V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	Y
Temperature Class Default	T3
Input Voltage (Uin)	690 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	650 V V
Operating Frequency (fsw)	100.000 Hz Hz
Output Power	22 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE5, Full Load (100%) 94.3 %, Partial Load (75%) 94.4 %, Partial Load (50%) 93.4 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	U
EX-Protection	Exeb
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	180
Bearing	6310/C3
Bearing NDE	6209/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	726 mm mm
Product Net Height	461 mm mm
Product Net Width	340 mm mm
Product Net Weight	190 kg kg
Gross Weight	200 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

Circular Value

ABB EcoSolutions

Yes

Eco Transparency

Environmental Product Declaration - EPD

9AAU00000000028

External Classifications and Standards

UNSPSC

26101100
