ABB 3GGP221250-BDK

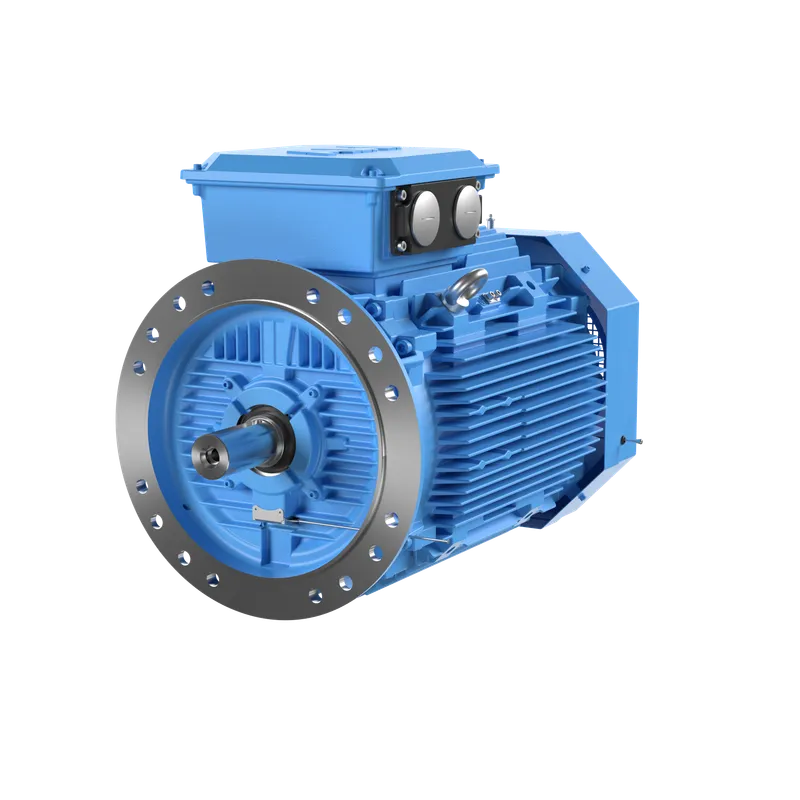

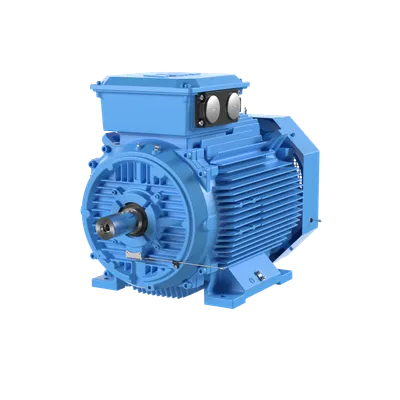

M3GP 225SME 2

MPN: 3GGP221250-BDK

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GGP221250-BDK?

Dust Ignition Proof IE3 Motors, 45 kW, 400 V (3GGP221250-BDK)

Specifications

Ordering

ABB Type Designation	M3GP 225SME 2
Invoice Description	M3GP 225SME 2
Product Name	3-Phase squirrel cage motor
Product Type	3GP3__M3GP_IE3_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015290
Medium Description	45kW, 2 Poles, Frame Size 225, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GGP221250-BDK)
Short Description	45kW, 2P, Frame Size 225, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	T3
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	45 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 95.0 %, Partial Load (75%) 95.5 %, Partial Load (50%) 94.9 %
IP Class	IP55
Insulation Class	ICLF
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
EX-Protection	Exec
Gas Group	IIC

Mechanical

Frame Material	Cast Iron
Frame Size	225
Bearing	6313/C3
Bearing NDE	6212/C3
IM Class	IMB5 IM3001

Dimensions

Product Net Depth / Length	849 mm mm
Product Net Height	573 mm mm
Product Net Width	452 mm mm
Product Net Weight	401 kg kg
Gross Weight	411 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
