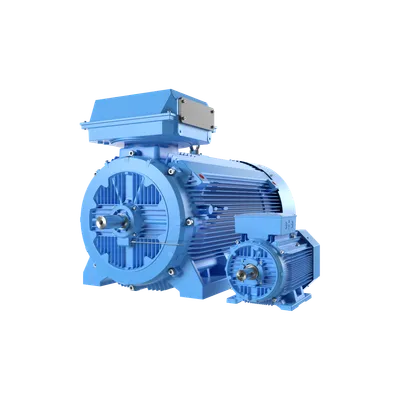

ABB 3GFH281330-ADG

MPN: 3GFH281330-ADG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GFH281330-ADG?

(3GFH281330-ADG)

Specifications

Ordering

ABB Type Designation	M3FH 280MC 2
Invoice Description	M3FH 280MC 2
Product Name	3-Phase squirrel cage motor
Product Type	3FH2__M3FH_IE2_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015381
Medium Description	?kW, 2P, Frame Size 280, 3 Phases, 400V, ?Hz, IP23 Enclosure, IMB3/IM1001 Mounting (3GFH281330-ADG) kW
Short Description	?kW, 2P, Frame Size 280, 3PH, 400V, ?Hz, IP23, IMB3/IM1001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC01
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 94.6 %, Partial Load (75%) 94.9 %, Partial Load (50%) 94.5 %
IP Class	IP23
Insulation Class	ICLF
Direction of Rotation	Unidirectional
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	280
Bearing	6316/C3
Bearing NDE	6316/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1199 mm mm
Product Net Height	786 mm mm
Product Net Width	577 mm mm
Product Net Weight	707 kg kg
Gross Weight	727 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
