ABB

ABB 3GBP223505-ADG

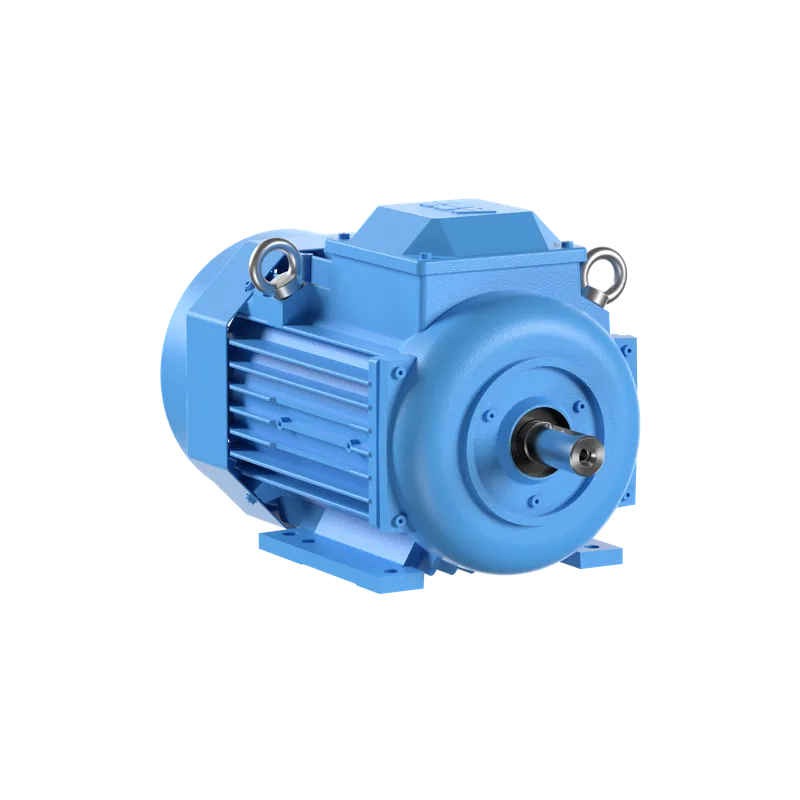

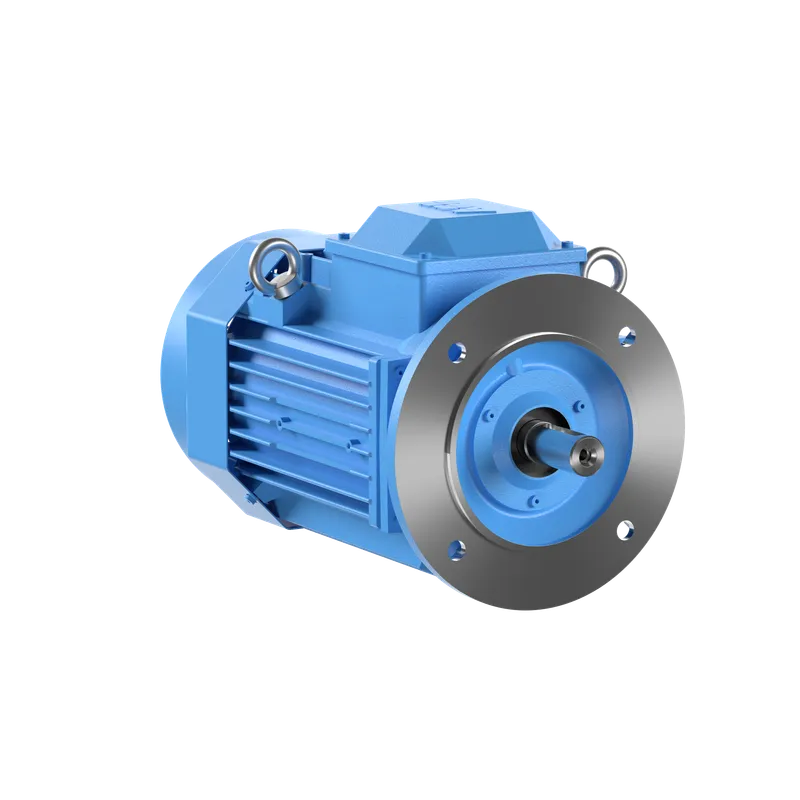

M3BP V 225 SMA

MPN: 3GBP223505-ADG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP223505-ADG?

(3GBP223505-ADG)

Specifications

Ordering

ABB Type Designation	M3BP V 225 SMA V
Product Name	3-Phase squirrel cage motor
Product Type	3BVS M3BPV Cast iron motor
Country or Territory of Origin	Sweden
Customs Tariff Number	85015230

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	90 °C
IC Class	IC418
IP Class	IP55
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Size	225
Bearing	6313/C4
Bearing NDE	6212/C4
IM Class	IMB3 IM1001

Dimensions

Product Net Weight	392 kg kg
Gross Weight	402 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100

3GBP223505-ADG: frequently asked questions

When can 3GBP223505-ADG be shipped?

3GBP223505-ADG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GBP223505-ADG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GBP223505-ADG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBP223505-ADG, subject to availability and destination.
