ABB

ABB 3GBP352230-ADKLD01

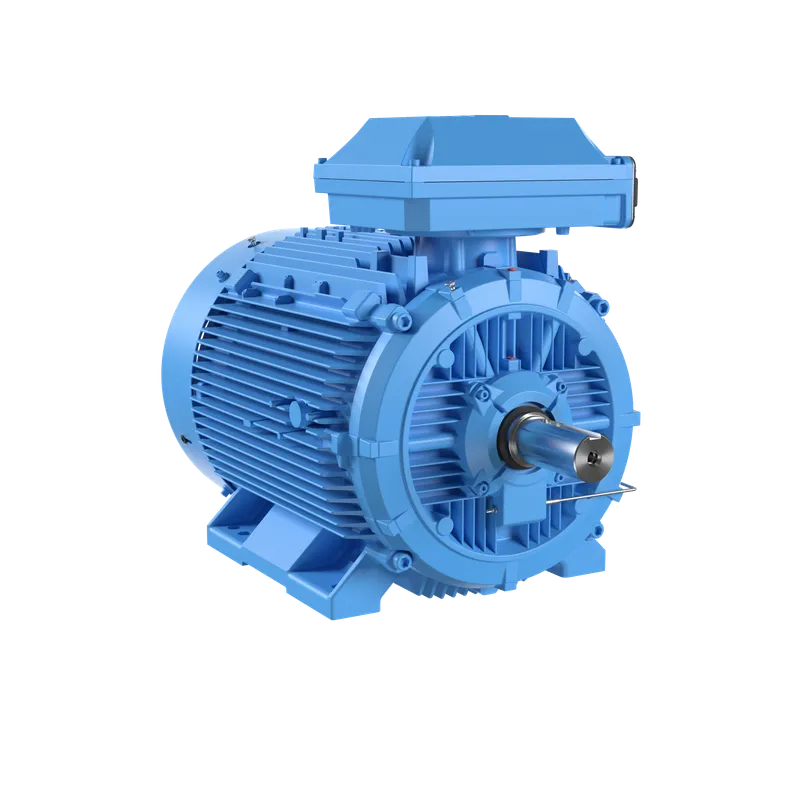

M3BP 355SMC 4

MPN: 3GBP352230-ADKLD01
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP352230-ADKLD01?

(3GBP352230-ADKLD01)

Specifications

Ordering

ABB Type Designation	M3BP 355SMC 4
Invoice Description	M3BP 355SMC 4
Product Name	3-Phase squirrel cage motor
Product Type	3BP3__M3BP_IE3_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015381
Stocked At (Warehouses)	Menden, Germany
Medium Description	?kW, 4P, Frame Size 355, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBP352230-ADKLD01) kW
Short Description	?kW, 4P, Frame Size 355, 3PH, 400V, ?Hz, IP55, IMB3/IM1001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 96.0 %, Partial Load (75%) 96.0 %, Partial Load (50%) 95.3 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 96.2 %, Partial Load (75%) 96.0 %, Partial Load (50%) 95.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	355
Bearing	NU322ECP/C3
Bearing NDE	6316/C3VL0241
Lubrication	Regreasable
IM Class	B3
Terminator Box Location	D-End top

Dimensions

Product Net Weight	1820 kg kg
Gross Weight	1850 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
