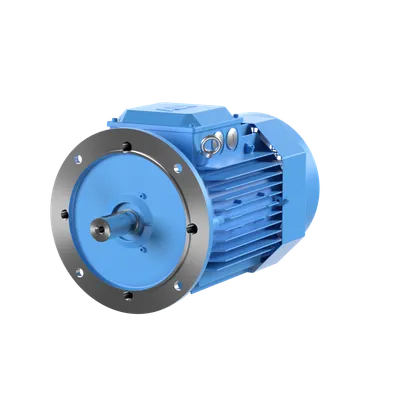

ABB 3GBP112350-BEL

MPN: 3GBP112350-BEL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP112350-BEL?

Specifications

Ordering

ABB Type Designation	M3BP 112ME 4
Invoice Description	M3BP 112ME 4
Product Name	3-Phase squirrel cage motor
Product Type	5BP3 M3BP CI
Country or Territory of Origin	Finland, China
Customs Tariff Number	85015220
Medium Description	4kW, 4 Poles, Frame Size 112, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBP112350-BEL)
Short Description	4kW, 4P, Frame Size 112, 3PH, 500V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	4 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 88.6 %, Partial Load (75%) 89.4 %, Partial Load (50%) 89.0 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 90.1 %, Partial Load (75%) 90.5 %, Partial Load (50%) 89.5 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E

Mechanical

Frame Material	Cast Iron
Frame Size	112
Bearing	6206-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	442 mm mm
Product Net Height	258 mm mm
Product Net Width	230 mm mm
Product Net Weight	52 kg kg
Gross Weight	57 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100, 39120000
