Home / ABB / Flameproof IEC Low voltage motors / ABB 3GAA161410-BDG

ABB

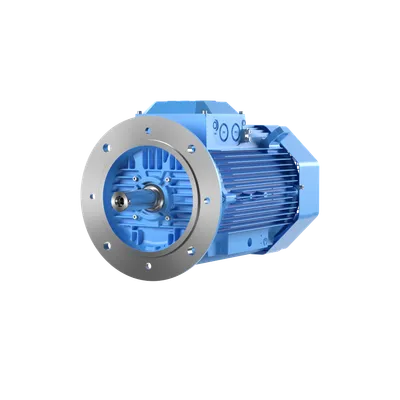

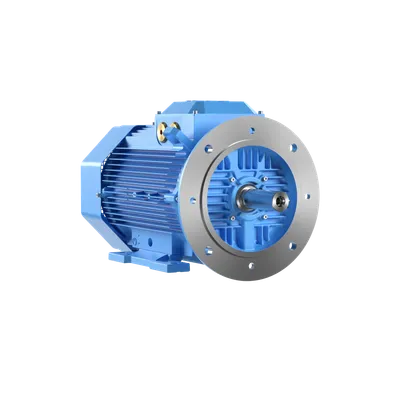

ABB 3GAA161410-BDG

M3AA 160MLA 2

MPN: 3GAA161410-BDG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA161410-BDG?

(3GAA161410-BDG)

Specifications

Ordering

ABB Type Designation	M3AA 160MLA 2
Invoice Description	M3AA 160MLA 2
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	Finland, China, Poland
Customs Tariff Number	85015230
Replaced Product ID (OLD)	3GAA161031-BDG

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 90.6 %, Partial Load (75%) 91.5 %, Partial Load (50%) 91.1 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 90.2 %, Partial Load (75%) 89.8 %, Partial Load (50%) 88.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	160
Bearing	6309-2Z/C3
Bearing NDE	6209-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	91 kg kg
Gross Weight	101 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	27ac6190-e1ce-4080-8654-6552aaabbe58 Finland

External Classifications and Standards

UNSPSC

26101100
