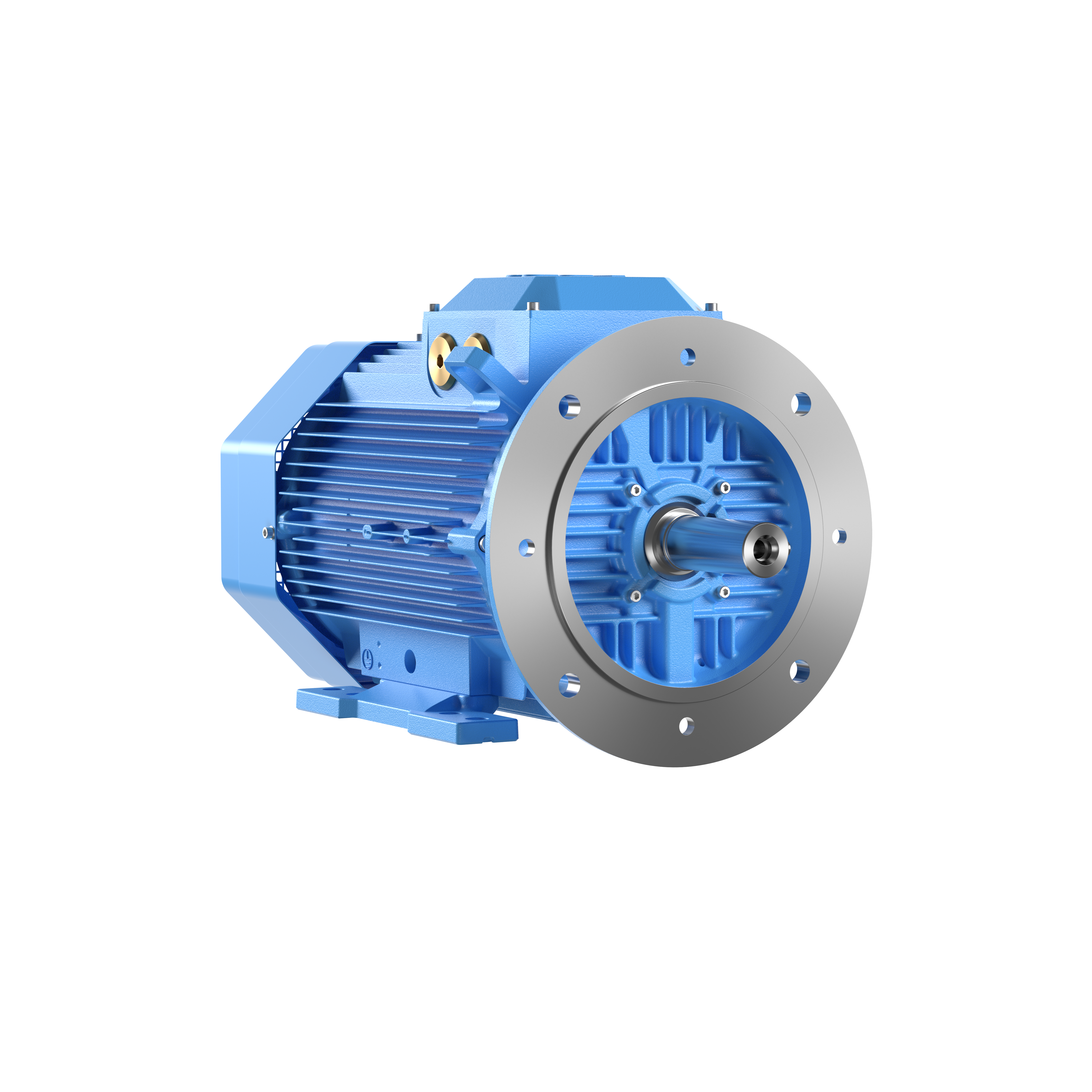

ABB 3GAA161300-BDE

MPN: 3GAA161300-BDE
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA161300-BDE?

IE2 High Efficiency Aluminum Motors, 15 kW, 400 V (3GAA161300-BDE)

Specifications

Ordering

ABB Type Designation	M3AA 160M 2
Invoice Description	M3AA 160M 2
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	Finland, Poland
Customs Tariff Number	85015230
Medium Description	15kW, 2 Poles, Frame Size 160, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GAA161300-BDE)
Short Description	15kW, 2P, Frame Size 160, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	15 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 90.4 %, Partial Load (75%) 90.8 %, Partial Load (50%) 90.0 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 90.7 %, Partial Load (75%) 90.4 %, Partial Load (50%) 88.8 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	160
Bearing	6309-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	597 mm mm
Product Net Height	349 mm mm
Product Net Width	310 mm mm
Product Net Weight	83 kg kg
Gross Weight	93 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	27ac6190-e1ce-4080-8654-6552aaabbe58 Finland

External Classifications and Standards

UNSPSC

26101100
