What is the ABB 3GAA131613-ADJAL14?

M3AA 132SC

Specifications

Ordering

ABB Type Designation	M3AA 132SC
Invoice Description	M3AA 132SC

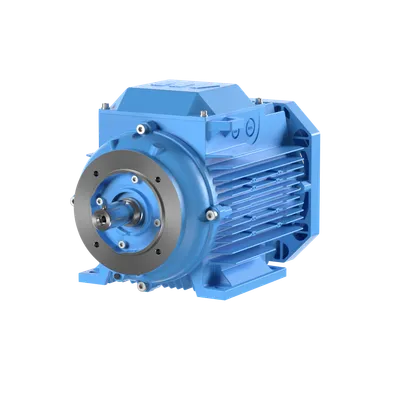

Product Name	3-Phase squirrel cage motor
Product Type	3AA0__M3AA_AA
Country or Territory of Origin	Poland
Customs Tariff Number	85015220
Stocked At (Warehouses)	Menden, Germany

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	55 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 90.5 %, Partial Load (75%) 91.0 %, Partial Load (50%) 90.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	132
Bearing	6308-2Z/C3
Bearing NDE	6208-2Z/C3
Lubrication	For life
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	63 kg kg
Gross Weight	68 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
