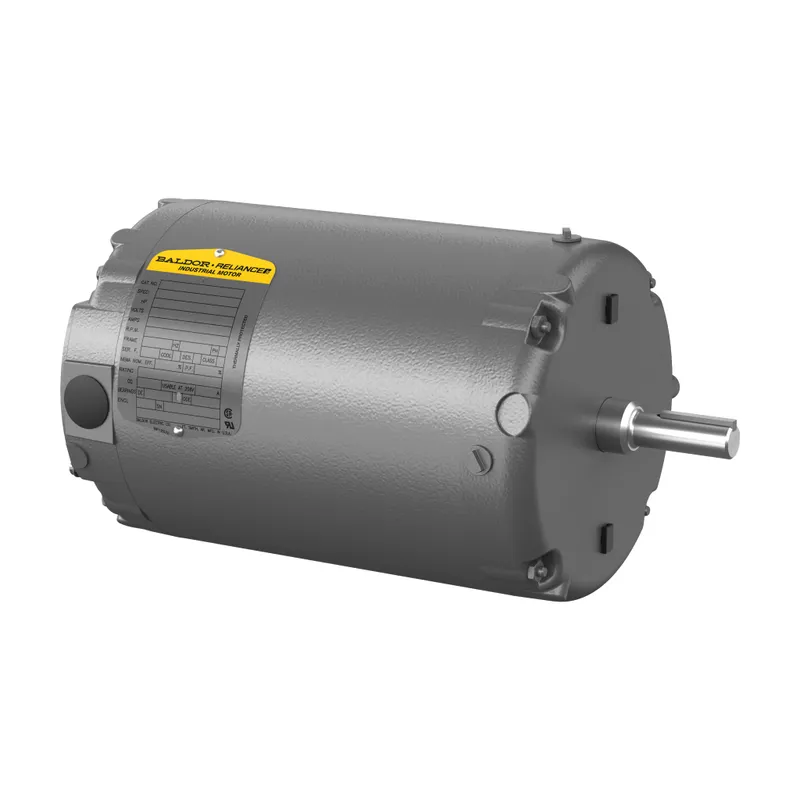

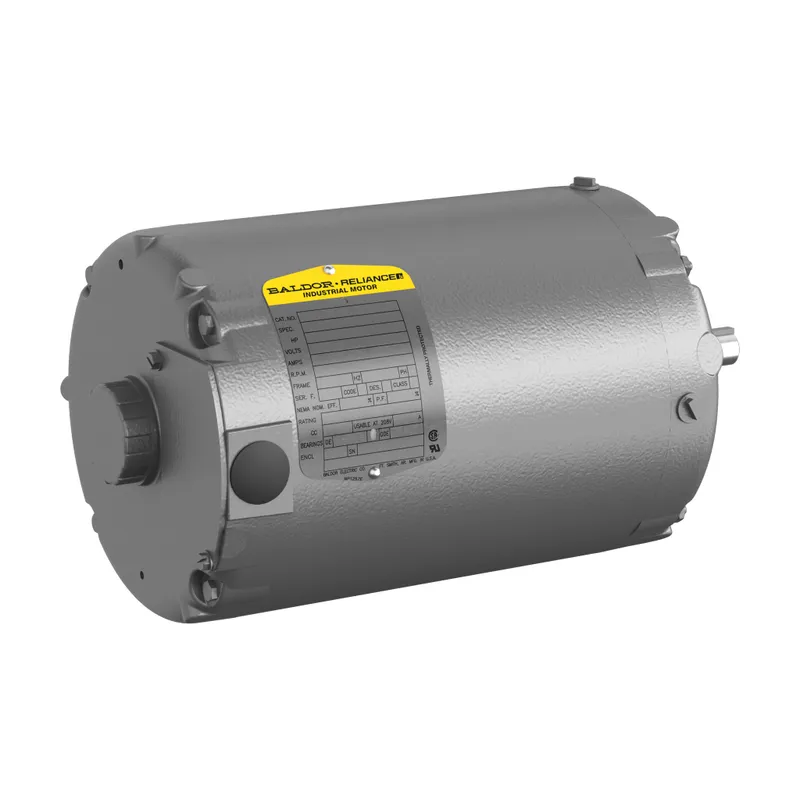

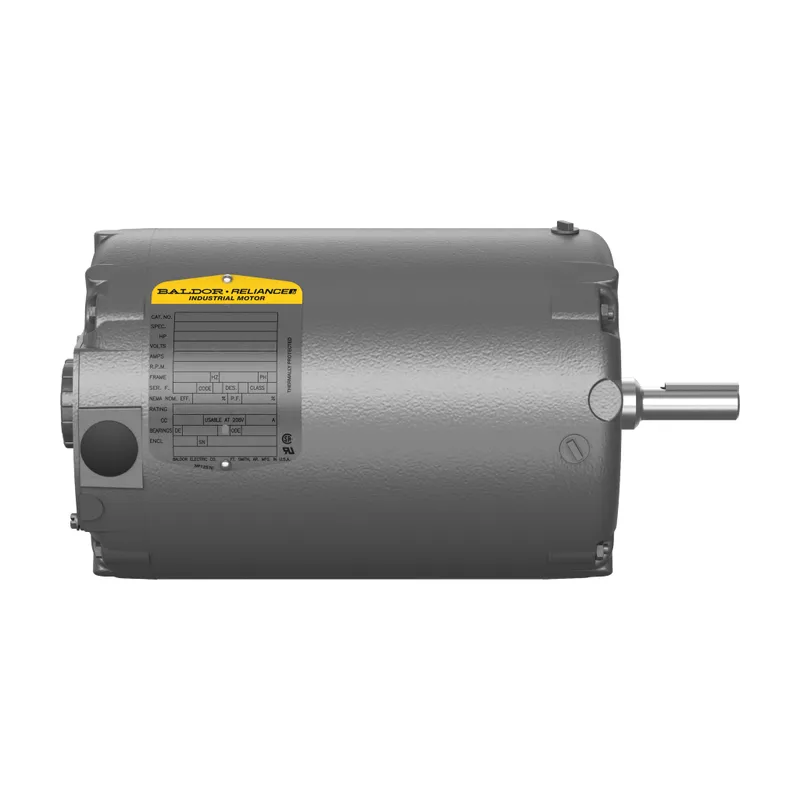

ABB M3539-TP
.5 AIR OVERHP,1170RPM,3PH,60HZ,56Z
- MPN
- M3539-TP
- Category
- Condenser Fan
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB M3539-TP?
Condensor Fan 0.5 Hp 208 V (M3539-TP)
Specifications
Ordering
| Catalog Number | M3539-TP |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | Single Speed |
| Power Factor | 55 % |
| Rated Efficiency | 70 % |
| Service Factor | 1.25 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1200 r/min |
| Output Power | 0.5 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEAO |
| Frame Material | Steel |
| Motor Frame Size | 56Z |
| Motor Base Type | No Mounting |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 11.125 in |
| Product Net Weight | 29 lb |
| Product Net Width | 11.5 in |
| Dimension Diagram | 35LYE4820 |
Certificates and Declarations
| Certification Agency | C UR US, CSA, CURUS, UR |
| IDEA Granular Category Code (IGCC) | 1318 >> Heating and cooling system motor AC |
| ETIM 7 | EC001851 - Electric motor |
