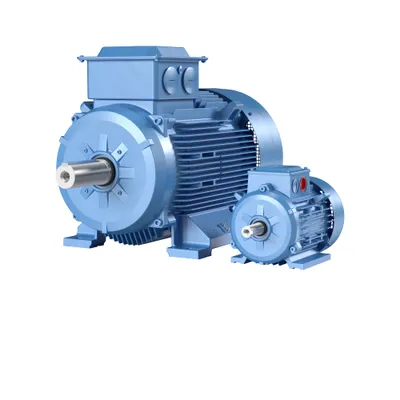

ABB 3GQP161320-BDL

MPN: 3GQP161320-BDL
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GQP161320-BDL?

(3GQP161320-BDL)

Specifications

Ordering

ABB Type Designation	M2QA 160MB 2
Invoice Description	M2QAP 160MB 2
Product Name	3-Phase squirrel cage motor
Product Type	CQP3__M2QP_IE3_CI
Country or Territory of Origin	China
Customs Tariff Number	85015230
Stocked At (Warehouses)	Shanghai, China
Medium Description	?kW, 2P, Frame Size 160, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GQP161320-BDL) kW
Short Description	?kW, 2P, Frame Size 160, 3PH, 400V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 91.9 %, Partial Load (75%) 92.5 %, Partial Load (50%) 92.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	160
Bearing	6309-2Z/C3
Bearing NDE	6209-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	133.1 kg kg
Gross Weight	143.1 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
