Home / ABB / Flameproof IEC Low voltage motors / ABB 3GBA281270-BDFCN

ABB

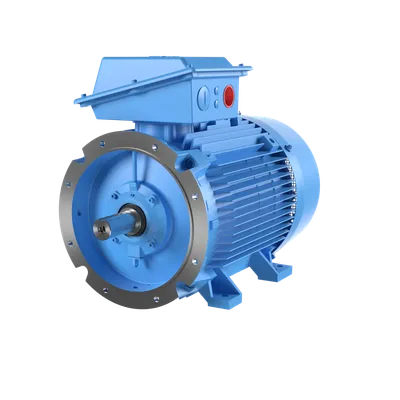

ABB 3GBA281270-BDFCN

M2BAX 280SMG 2

MPN: 3GBA281270-BDFCN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA281270-BDFCN?

(3GBA281270-BDFCN)

Specifications

Ordering

ABB Type Designation	M2BAX 280SMG 2
Invoice Description	M2BAX 280SMG2
Product Name	3-Phase squirrel cage motor
Product Type	CBA3__M2BAX_CI
Country or Territory of Origin	China
Customs Tariff Number	85015100
Replaced Product ID (OLD)	3GBA281230-BDMCN
Stocked At (Warehouses)	Shanghai, China
Medium Description	?kW, 2P, Frame Size 280, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA281270-BDFCN) kW
Short Description	?kW, 2P, Frame Size 280, 3PH, 400V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 95.0 %, Partial Load (75%) 95.5 %, Partial Load (50%) 95.5 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 95.0 %, Partial Load (75%) 94.9 %, Partial Load (50%) 94.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	280
Bearing	6316/C3
Bearing NDE	6316/C3
Lubrication	Regreasable
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	583 kg kg
Gross Weight	603 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100

3GBA281270-BDFCN: frequently asked questions

When can 3GBA281270-BDFCN be shipped?

3GBA281270-BDFCN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GBA281270-BDFCN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GBA281270-BDFCN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBA281270-BDFCN, subject to availability and destination.
