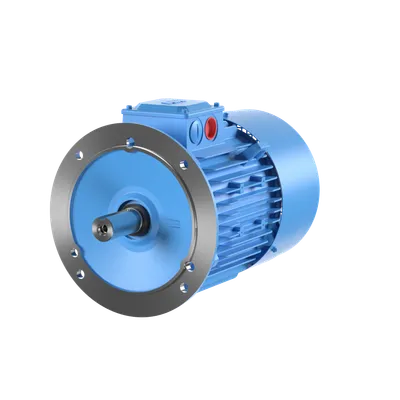

ABB 3GBA131240-BDDIN

M2BAX 132SMD 2

MPN: 3GBA131240-BDDIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA131240-BDDIN?

IE3 (BIS) Premium Efficiency Cast Iron Motors, 9.3 kW, 415 V (3GBA131240-BDDIN)

Specifications

Ordering

ABB Type Designation	M2BAX 132SMD 2
Invoice Description	M2BAX 132SMD 2
Product Name	3-Phase squirrel cage motor
Product Type	IBA3__M2BAX_IE3_CI
Country or Territory of Origin	India
Customs Tariff Number	85015230
Medium Description	9.3kW, 2 Poles, Frame Size 132, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA131240-BDDIN)
Short Description	9.3kW, 2P, Frame Size 132, 3PH, 415V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	9.3 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 90.7 %, Partial Load (75%) 90.3 %, Partial Load (50%) 89.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6208-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	521 mm mm
Product Net Height	320 mm mm
Product Net Width	300 mm mm
Product Net Weight	72 kg kg
Gross Weight	77 kg kg

External Classifications and Standards

UNSPSC

26101100
