ABB 3GBA133110-AEC
M2BAX 132SA 6
- MPN
- 3GBA133110-AEC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GBA133110-AEC?

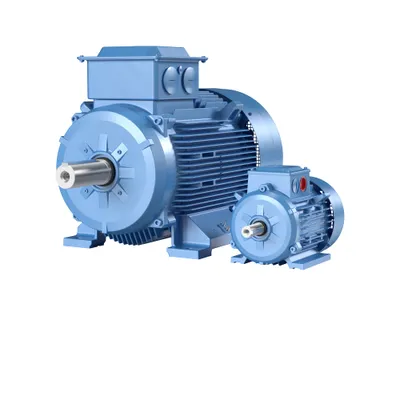

IE2 High Efficiency Cast Iron Motors, 3 kW, 500 V (3GBA133110-AEC)
Specifications
Ordering
| ABB Type Designation | M2BAX 132SA 6 |
| Invoice Description | M2BAX 132SA 6 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | EBA2__M2BAX_CI |
| Country or Territory of Origin | China |
| Customs Tariff Number | 85015220 |
| Replaced Product ID (OLD) | 3GBA133211-AEB |
| Stocked At (Warehouses) | Menden, Germany |
Electrical
| Connection Configuration | D |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 500 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 3 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE2 |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Number of Poles (High) | 6 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | E |
Mechanical
| Frame Size | 132 |
| Bearing | 6208-2Z/C3 |
| Bearing NDE | 6208-2Z/C3 |
| IM Class | IMB3 IM1001 |
Dimensions
| Product Net Weight | 55 kg kg |
| Gross Weight | 55 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| SCIP | d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland |
External Classifications and Standards
| UNSPSC | 26101100 |
3GBA133110-AEC: frequently asked questions
When can 3GBA133110-AEC be shipped?
3GBA133110-AEC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GBA133110-AEC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GBA133110-AEC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBA133110-AEC, subject to availability and destination.
