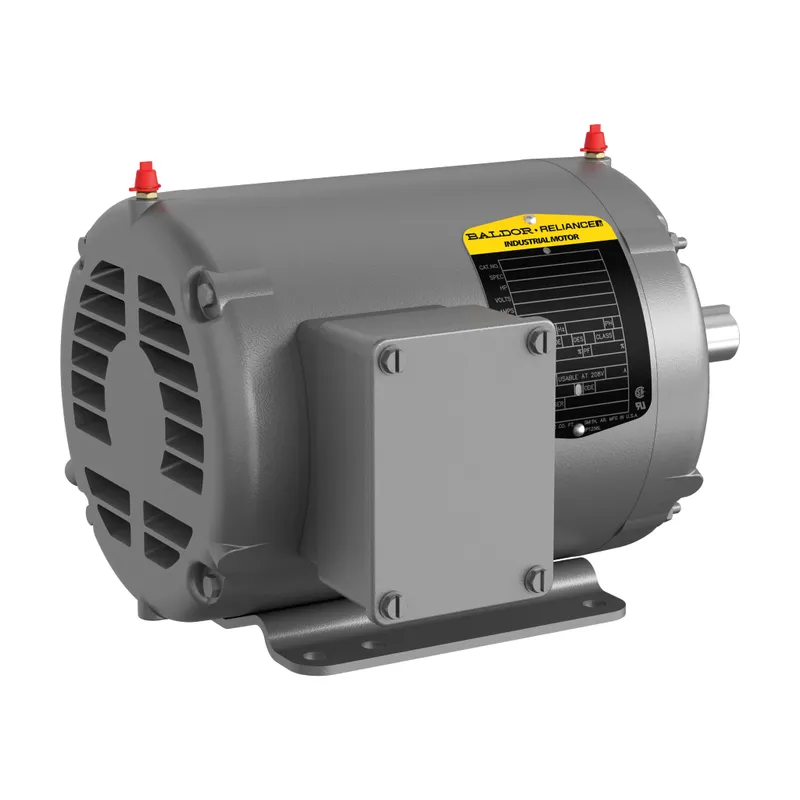

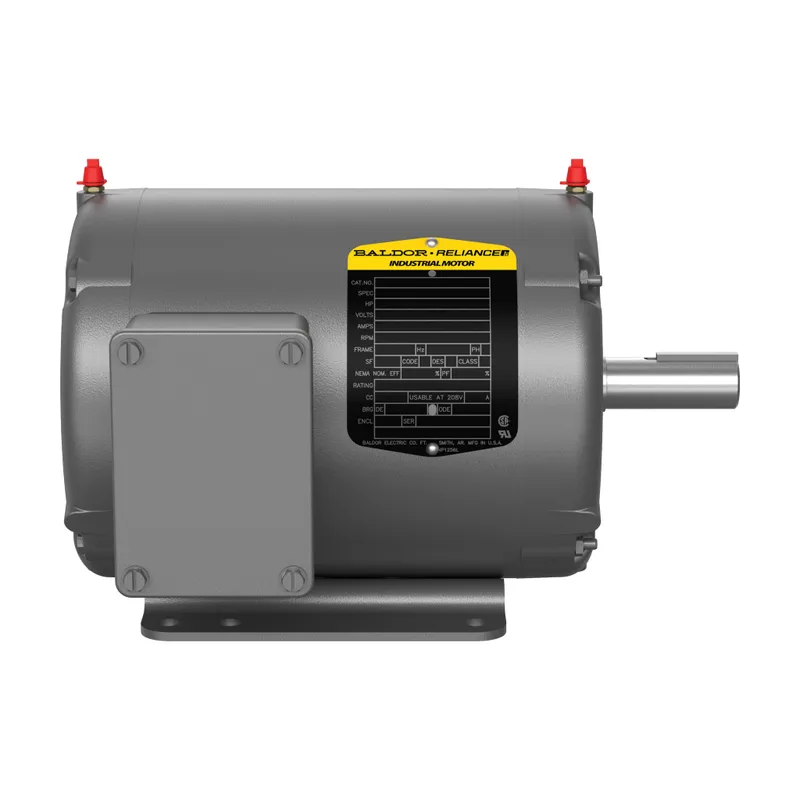

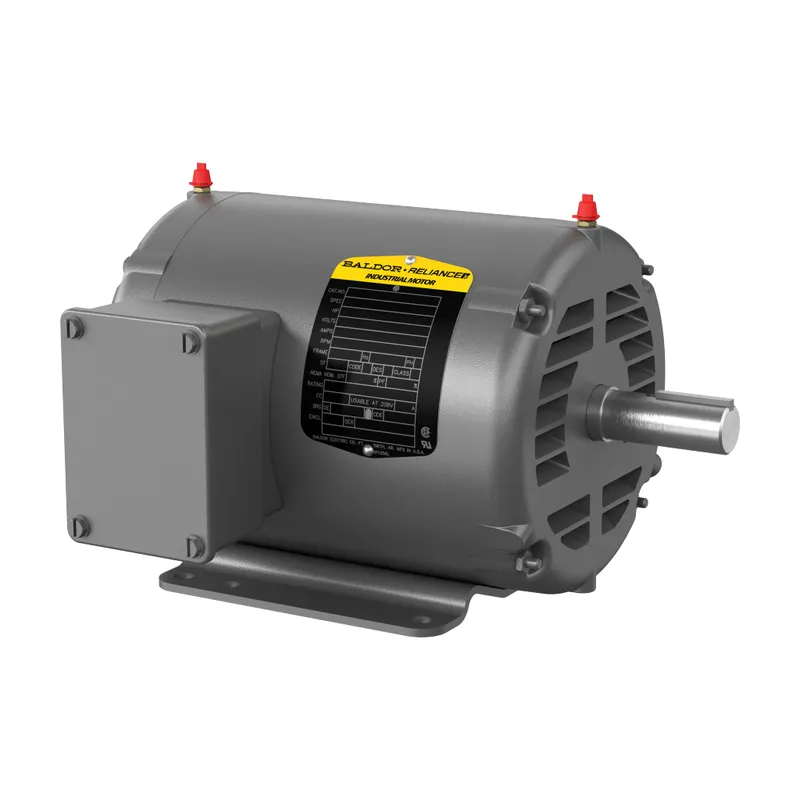

ABB M1004T

1-.25HP,1720-860RPM,3PH,60HZ,143T,3

MPN: M1004T
Category: Definite Purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB M1004T?

2 Speed 0.250 Hp 208 V (M1004T)

Specifications

Ordering

Catalog Number	M1004T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
Number of Phases	3-phase
Number of Poles	8P
Number of Speeds	Two Speed
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	900 r/min
Output Power	0.250 Hp, 1.000 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	143T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	33 lb
Product Net Width	11.5 in
Dimension Diagram	35LYBB001

Certificates and Declarations

Certification Agency	CURUS, UR
IDEA Granular Category Code (IGCC)	1323 >> Multispeed motor AC
ETIM 7	EC001851 - Electric motor
