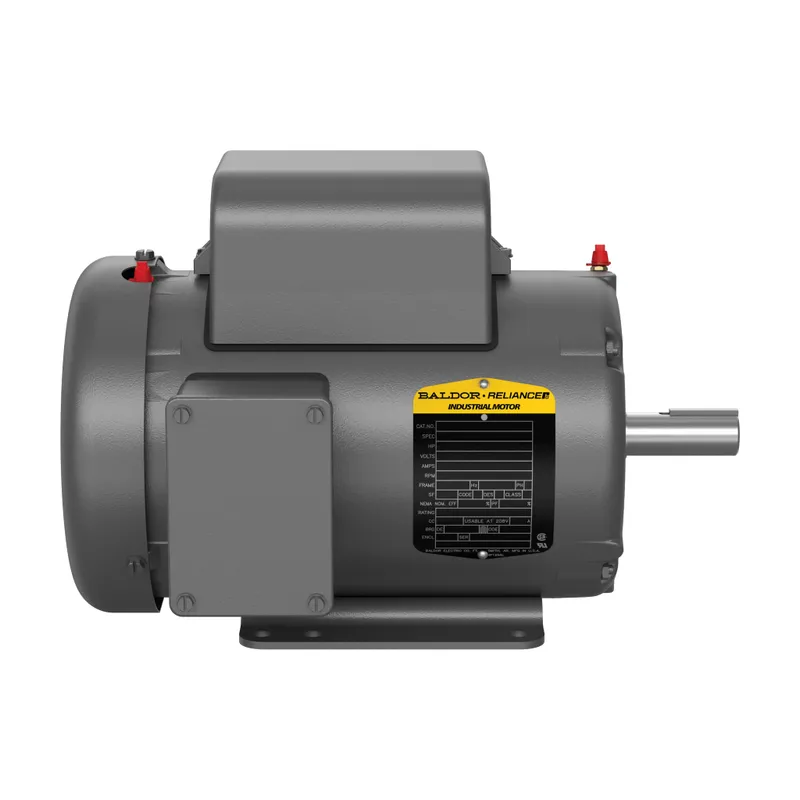

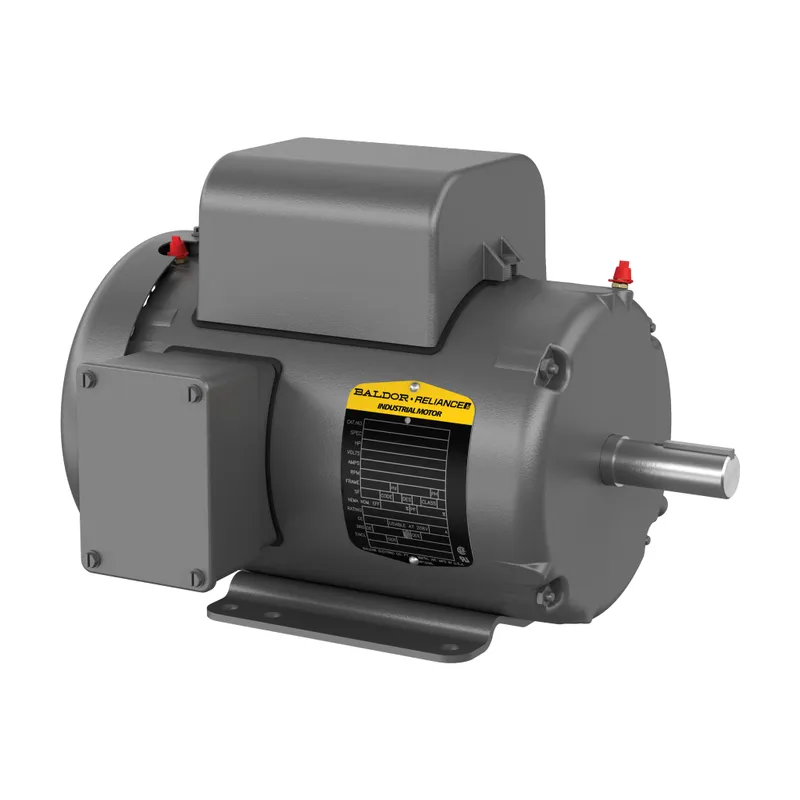

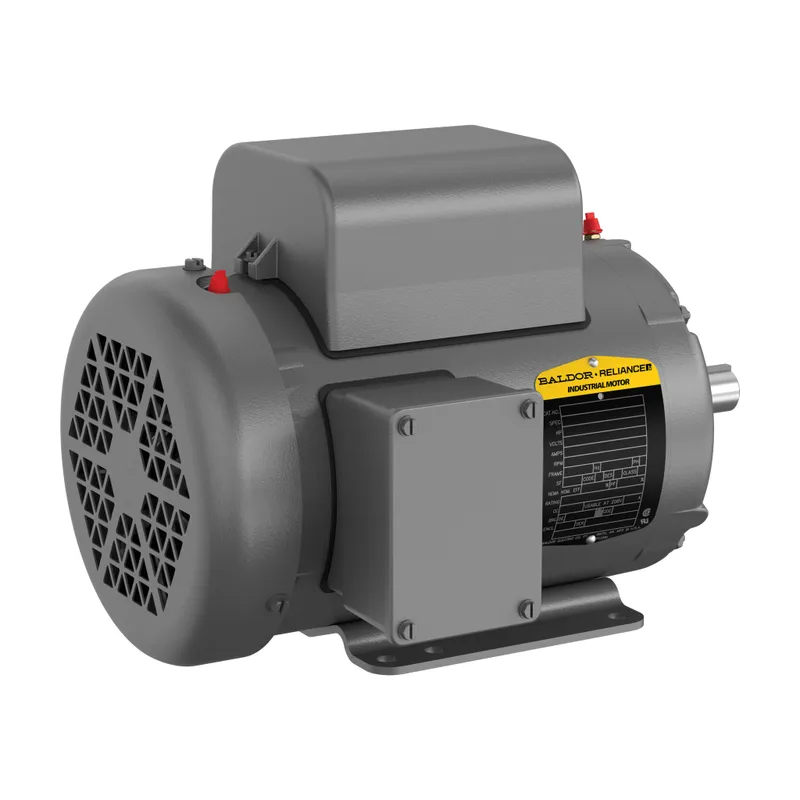

ABB L3514T-50

1.5/1.1KW,1455RPM,1PH,50HZ,145T,354

MPN
L3514T-50
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB L3514T-50?

General Purpose Motor 1.1 kW 220 V (L3514T-50)

Specifications

Ordering

Catalog NumberL3514T-50
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE2
Insulation ClassF
NEMA Design CodeL
Number of Phases1-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor91 %
Rated Efficiency77 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1500 r/min
Output Power1.1 kW kW

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialSteel
Motor Frame Size145T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height11.125 in
Product Net Weight51 lb
Product Net Width11.5 in
Dimension Diagram35LYEE001

Certificates and Declarations

Certification AgencyC UR US, CE, CURUS, UKCA, WEEE
IDEA Granular Category Code (IGCC)1329 >> Single phase motor AC
ETIM 7EC001851 - Electric motor
