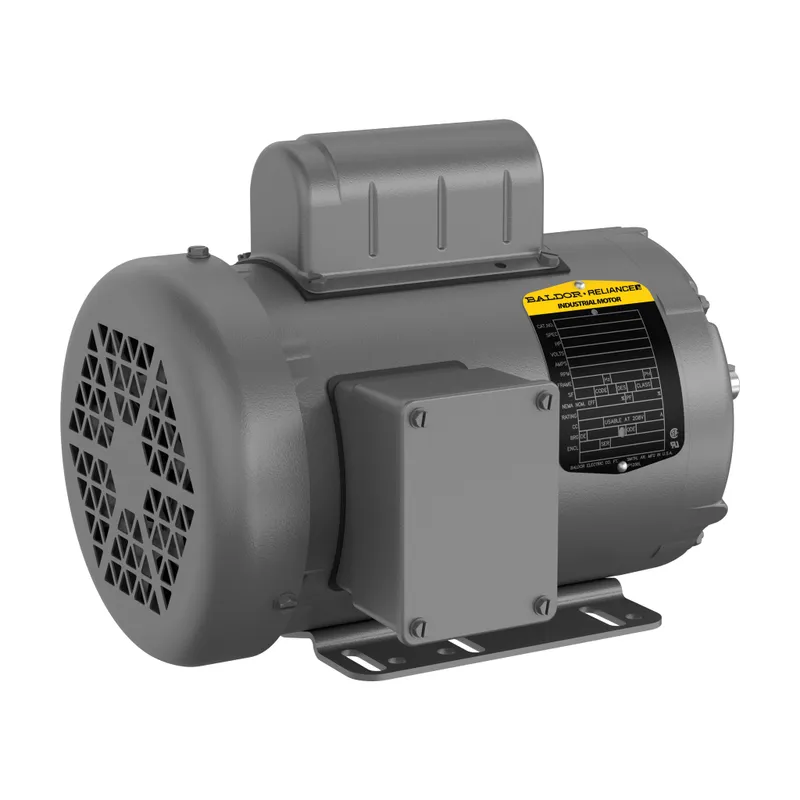

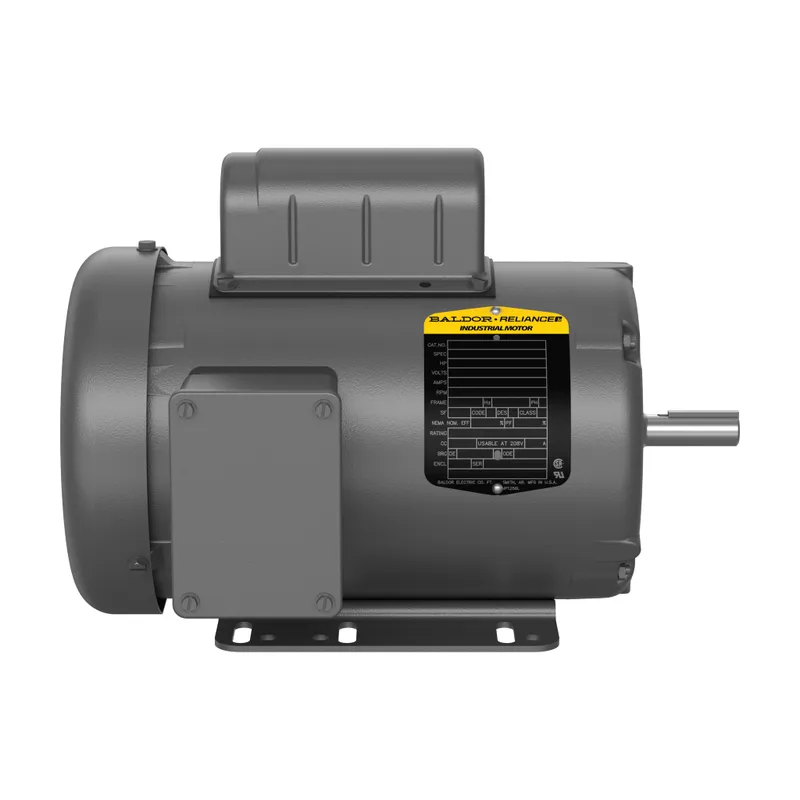

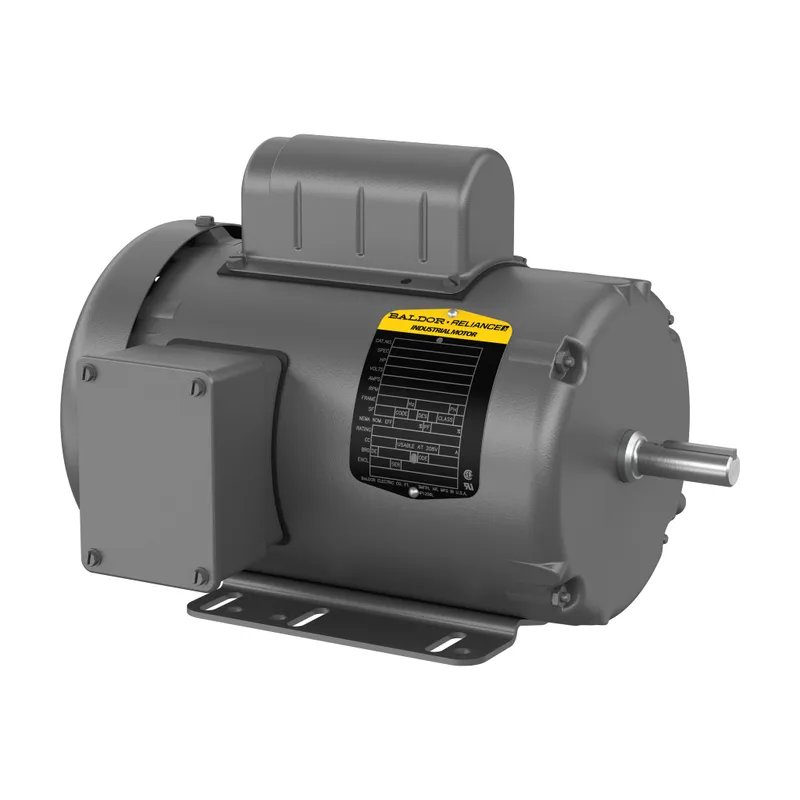

ABB L3513M
1.5HP,3450RPM,1PH,60HZ,56/56H,3528L
- MPN
- L3513M
- Category
- Single phase enclosed
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB L3513M?
General Purpose Motor 1.5 Hp 115 V (L3513M)
Specifications
Ordering
| Catalog Number | L3513M |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt |
| Insulation Class | B |
| NEMA Design Code | L |
| Number of Phases | 1-phase |
| Number of Poles | 2P |
| Number of Speeds | Single Speed |
| Power Factor | 82 % |
| Rated Efficiency | 70 % |
| Service Factor | 1.00 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 1.5 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Steel |
| Motor Frame Size | 56H |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 11.125 in |
| Product Net Weight | 46 lb |
| Product Net Width | 11.5 in |
| Dimension Diagram | 35LYJ383 |
Certificates and Declarations
| Certification Agency | C UR US, UR |
| IDEA Granular Category Code (IGCC) | 1329 >> Single phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
