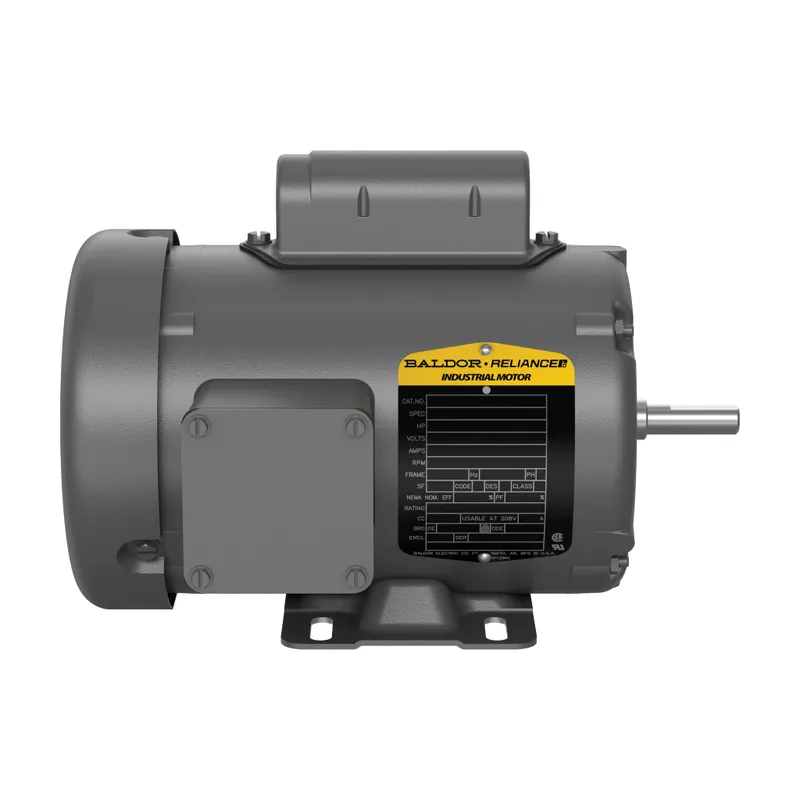

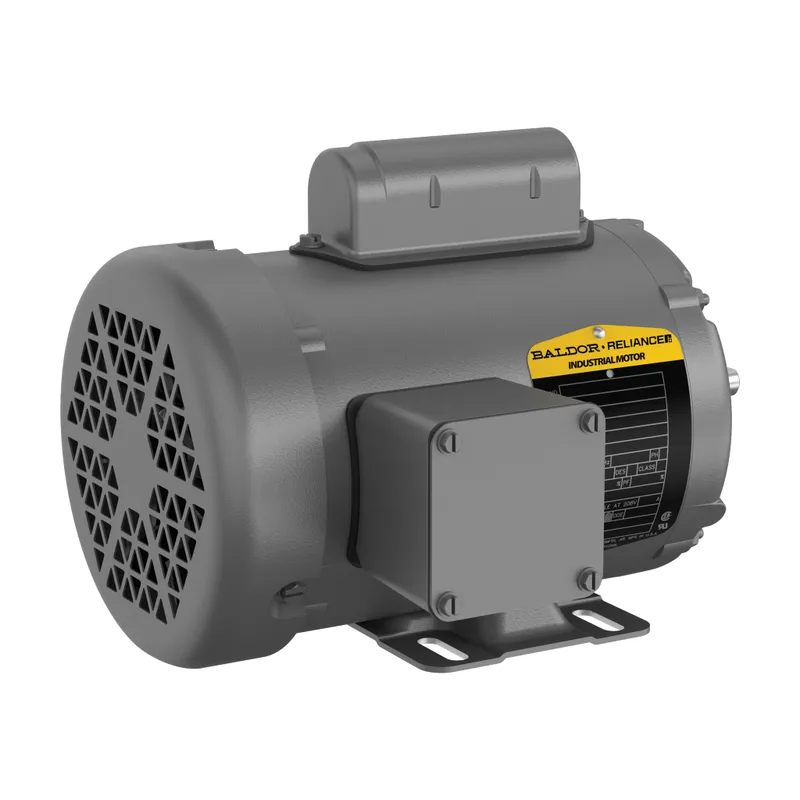

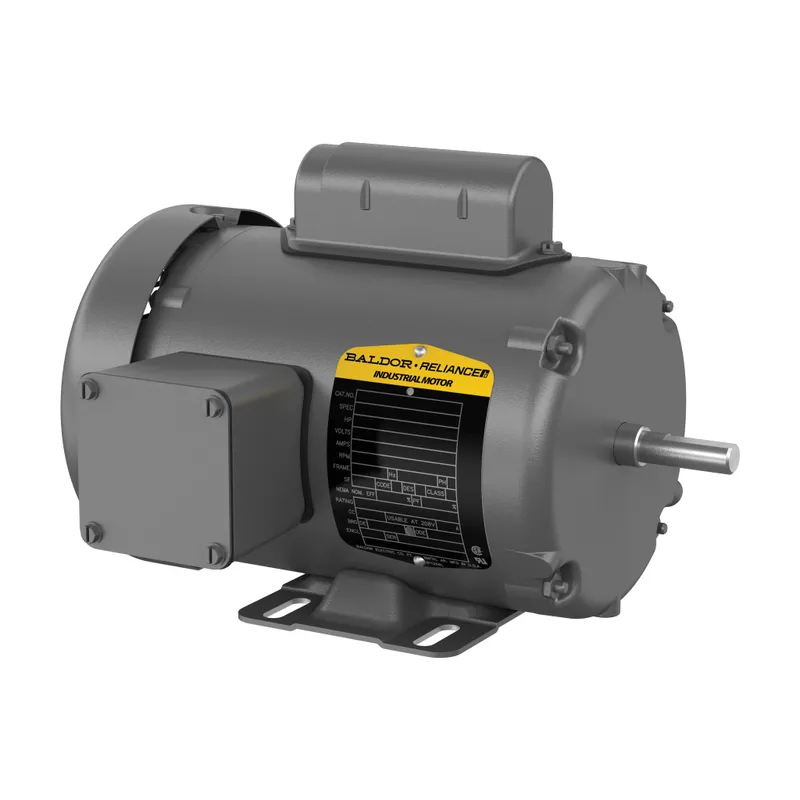

ABB L3401
.17HP,1140RPM,1PH,60HZ,48,3418L,TEF
- MPN
- L3401
- Category
- Single phase enclosed
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB L3401?
General Purpose Motor 0.170.000 Hp 115 V (L3401)
Specifications
Ordering
| Catalog Number | L3401 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85013100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt |
| Insulation Class | B |
| NEMA Design Code | N |
| Number of Phases | 1-phase |
| Number of Poles | 6P |
| Number of Speeds | Single Speed |
| Power Factor | 52 % |
| Rated Efficiency | 47 % |
| Service Factor | 1.35 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1200 r/min |
| Output Power | 0.170.000 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Steel |
| Motor Frame Size | 48 |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 9.375 in |
| Product Net Weight | 23 lb |
| Product Net Width | 10.813 in |
| Dimension Diagram | 34LYC051 |
Certificates and Declarations
| Certification Agency | C UR US, UR |
| IDEA Granular Category Code (IGCC) | 1329 >> Single phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
