ABB L1511T

10HP,3450RPM,1PH,60HZ,215T,3740L,OP

MPN
L1511T
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB L1511T?

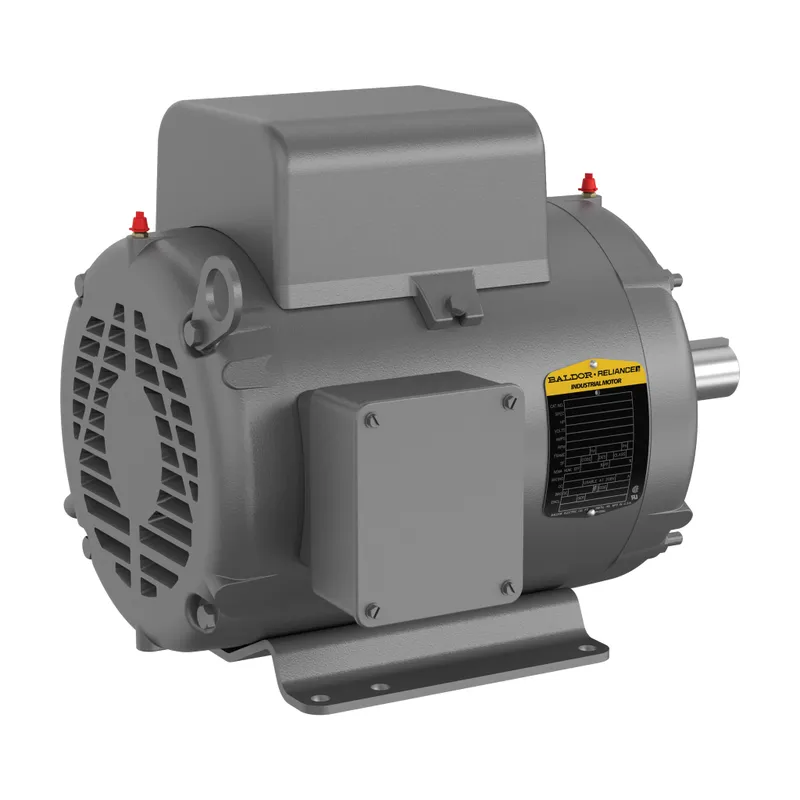

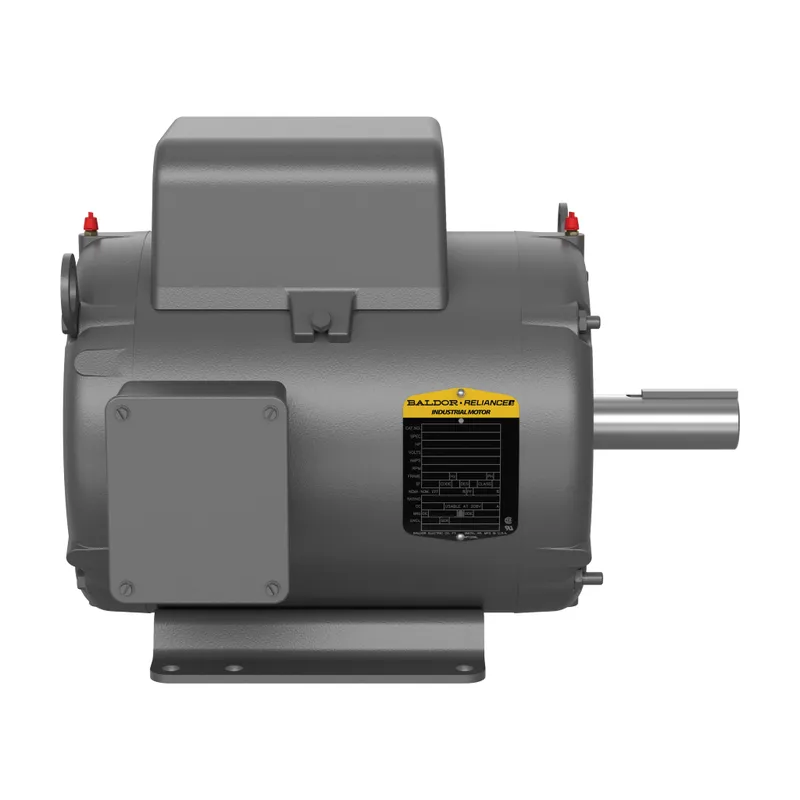

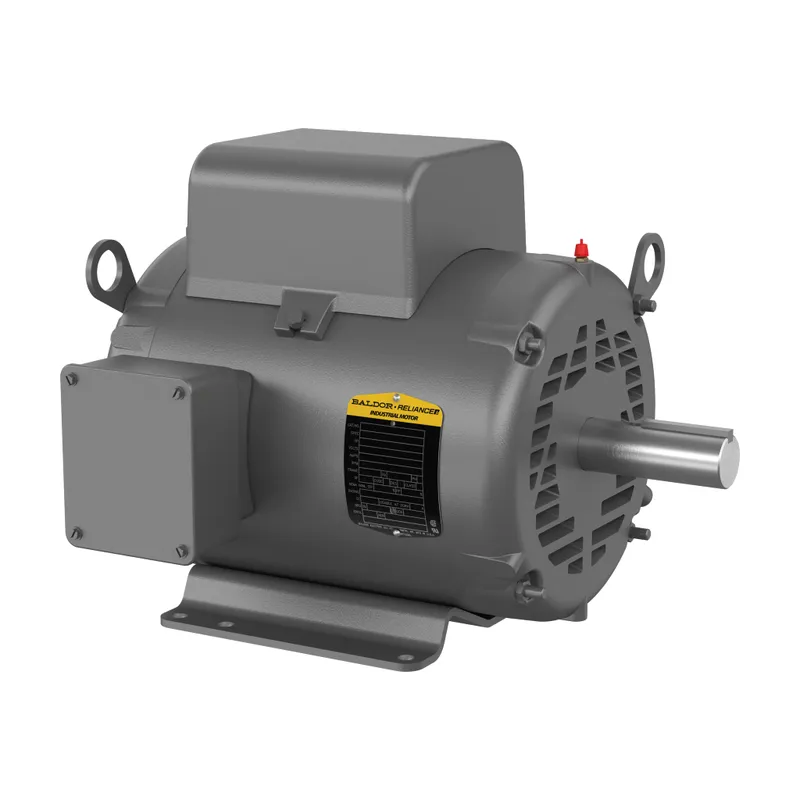

General Purpose Motor 10 Hp 230 V (L1511T)

Specifications

Ordering

Catalog NumberL1511T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassF
NEMA Design CodeL
Number of Phases1-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor86 %
Rated Efficiency83 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power10 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size215T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height17.375 in
Product Net Weight131 lb
Product Net Width16.5 in
Dimension Diagram37LYK267

Certificates and Declarations

Certification AgencyCURUS, UR
IDEA Granular Category Code (IGCC)1329 >> Single phase motor AC
ETIM 7EC001851 - Electric motor
