ABB L1313-50

1.5/1.1KW,2920RPM,1PH,50HZ,56,3530L

MPN
L1313-50
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB L1313-50?

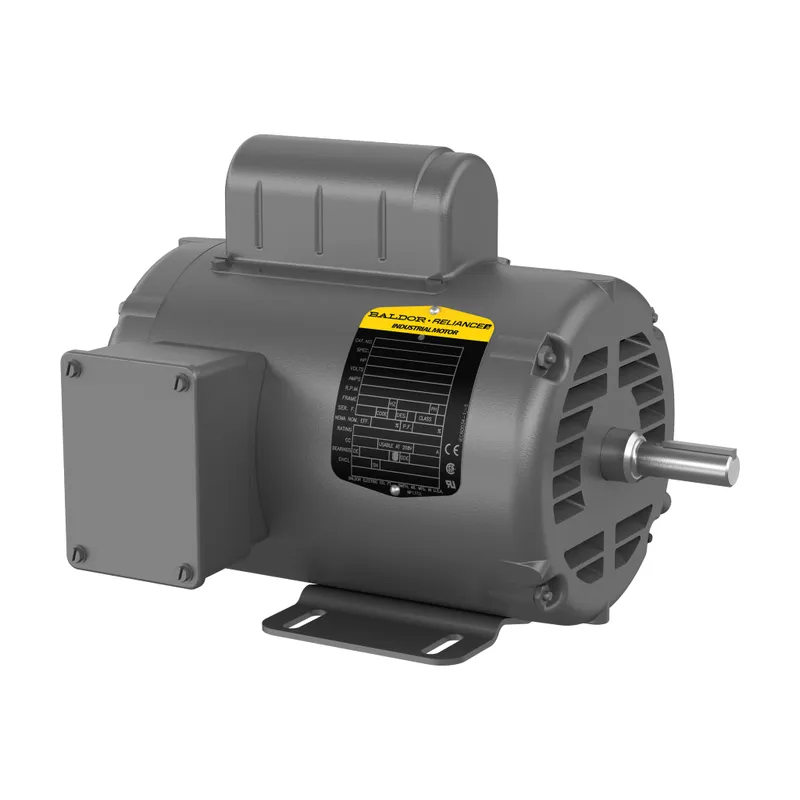

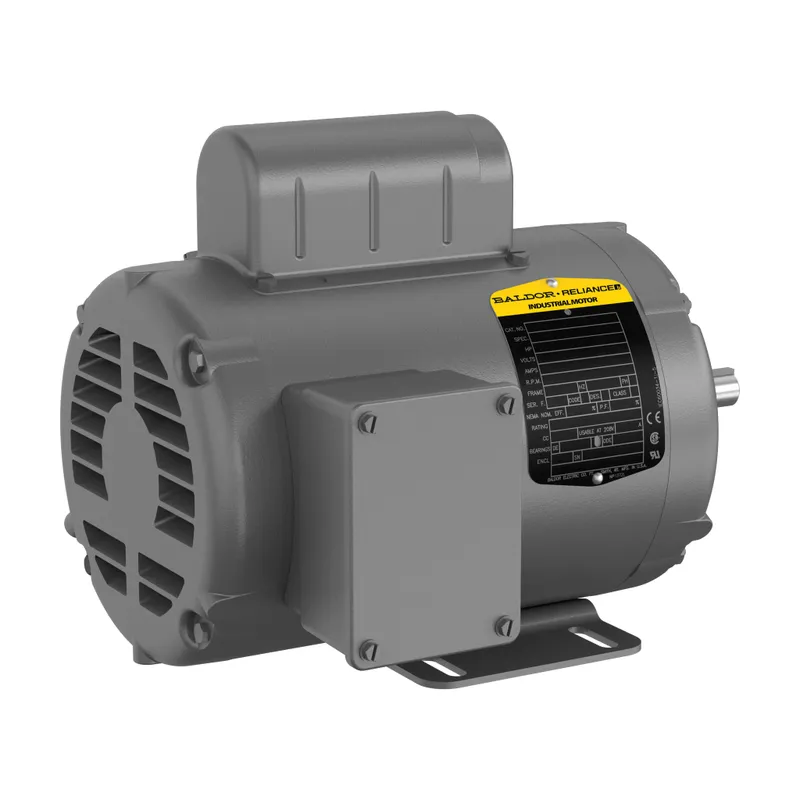

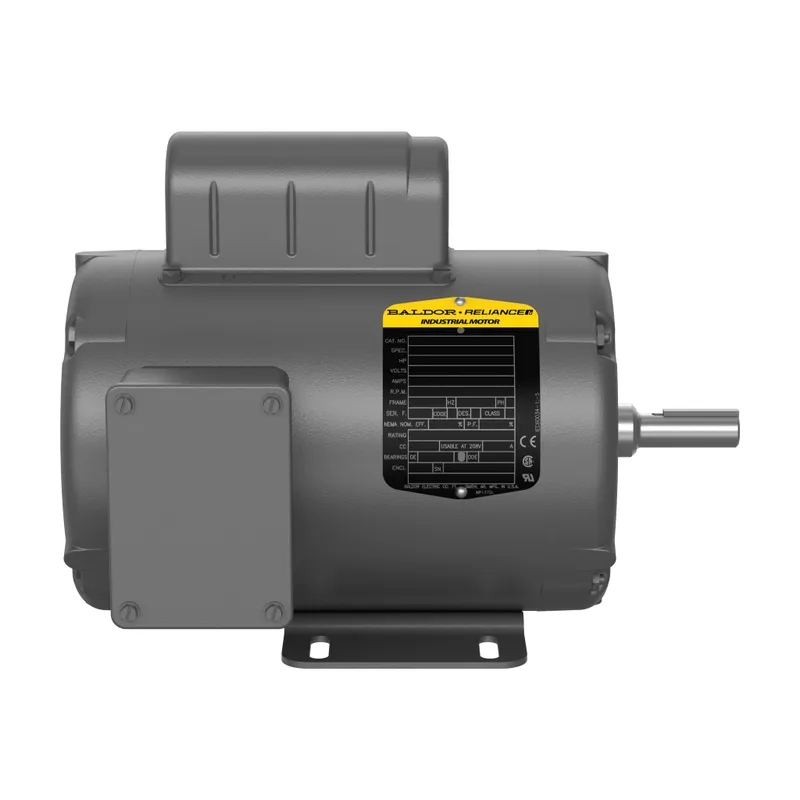

General Purpose Motor 1.1 kW 220 V (L1313-50)

Specifications

Ordering

Catalog NumberL1313-50
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE2
Insulation ClassB
NEMA Design CodeL
Number of Phases1-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor86 %
Rated Efficiency68 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3000 r/min
Output Power1.1 kW kW

Mechanical

Drive End Flange TypeStandard
Enclosure TypeOPEN
Frame MaterialSteel
Motor Frame Size56
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height11.125 in
Product Net Weight43 lb
Product Net Width11.5 in
Dimension Diagram35LYM497

Certificates and Declarations

Certification AgencyC UR US, CE, CURUS, UKCA, WEEE
IDEA Granular Category Code (IGCC)1329 >> Single phase motor AC
ETIM 7EC001851 - Electric motor

L1313-50: frequently asked questions

When can L1313-50 be shipped?

L1313-50 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L1313-50 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L1313-50 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L1313-50, subject to availability and destination.
