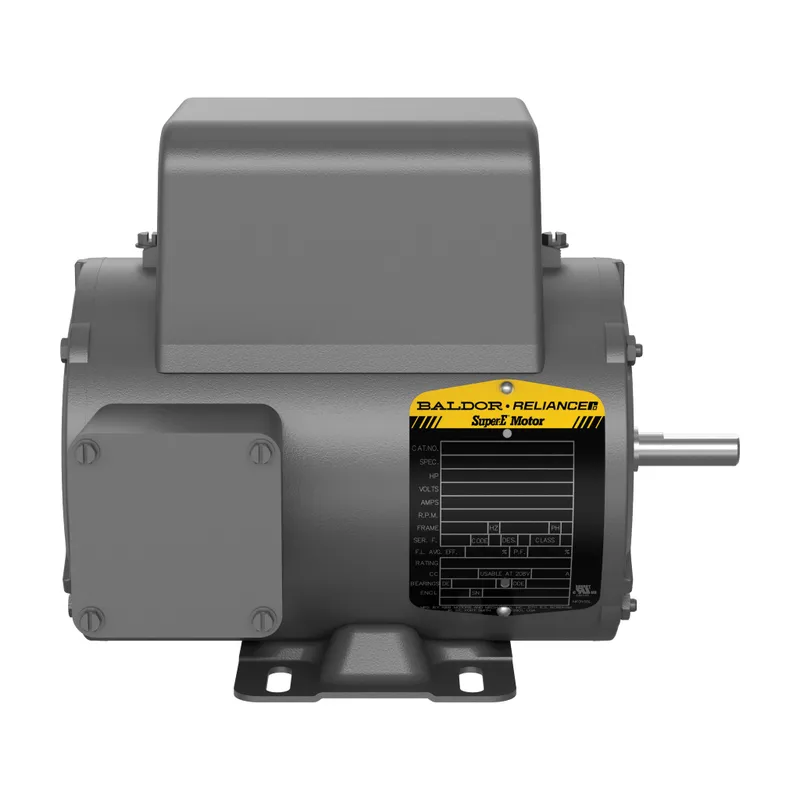

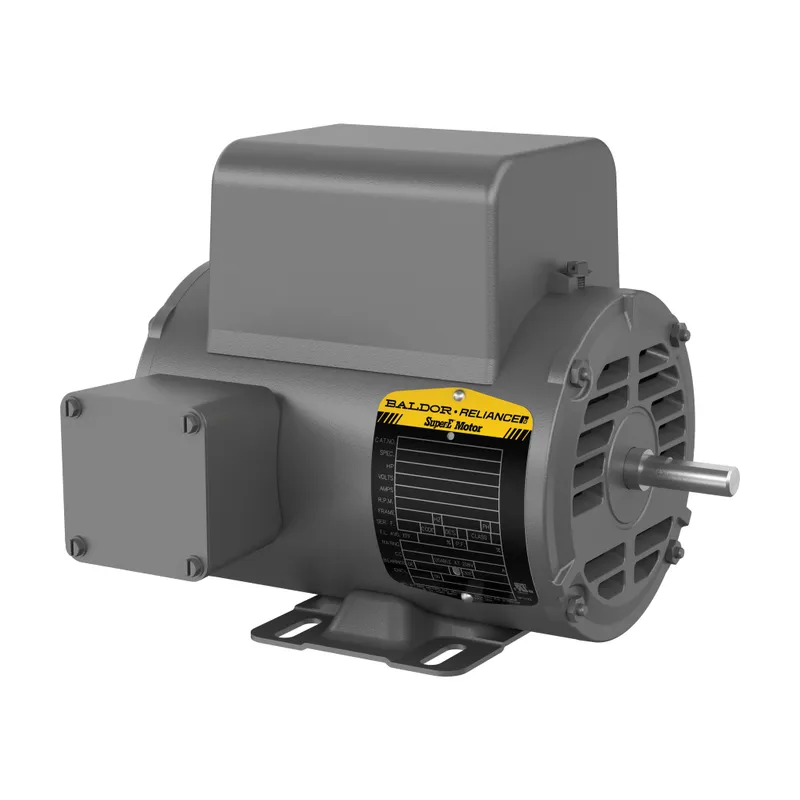

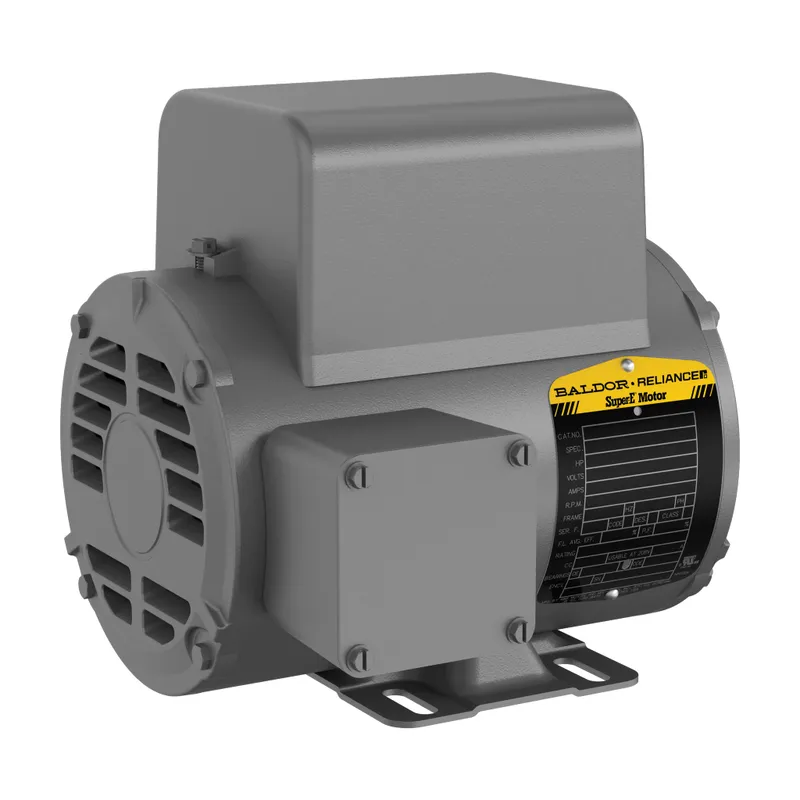

ABB L1206-50

.33/KW .25,1440RPM,1PH,50HZ,48,3418

MPN: L1206-50
Category: Single phase open

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB L1206-50?

General Purpose Motor 0.33 Hp 110 V (L1206-50)

Specifications

Ordering

Catalog Number	L1206-50
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
NEMA Design Code	N
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	74 %
Rated Efficiency	62 %
Service Factor	1.35
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1500 r/min
Output Power	0.33 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	OPEN
Frame Material	Steel
Motor Frame Size	48
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	9.375 in
Product Net Weight	24 lb
Product Net Width	10.813 in
Dimension Diagram	34LYF001

Certificates and Declarations

Certification Agency	CE, CSA, UR, WEEE
IDEA Granular Category Code (IGCC)	1329 >> Single phase motor AC
ETIM 7	EC001851 - Electric motor
