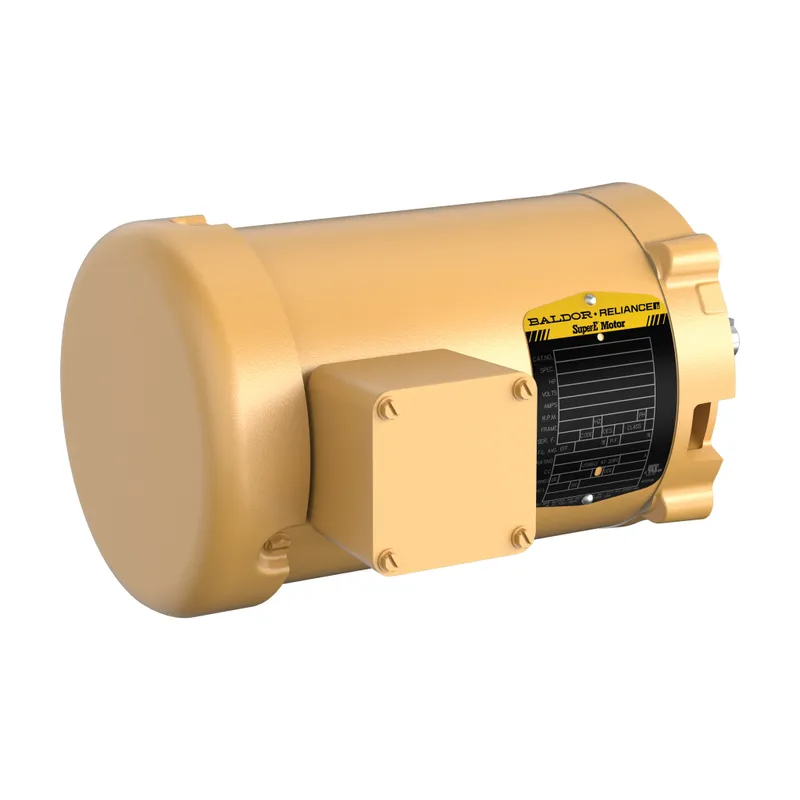

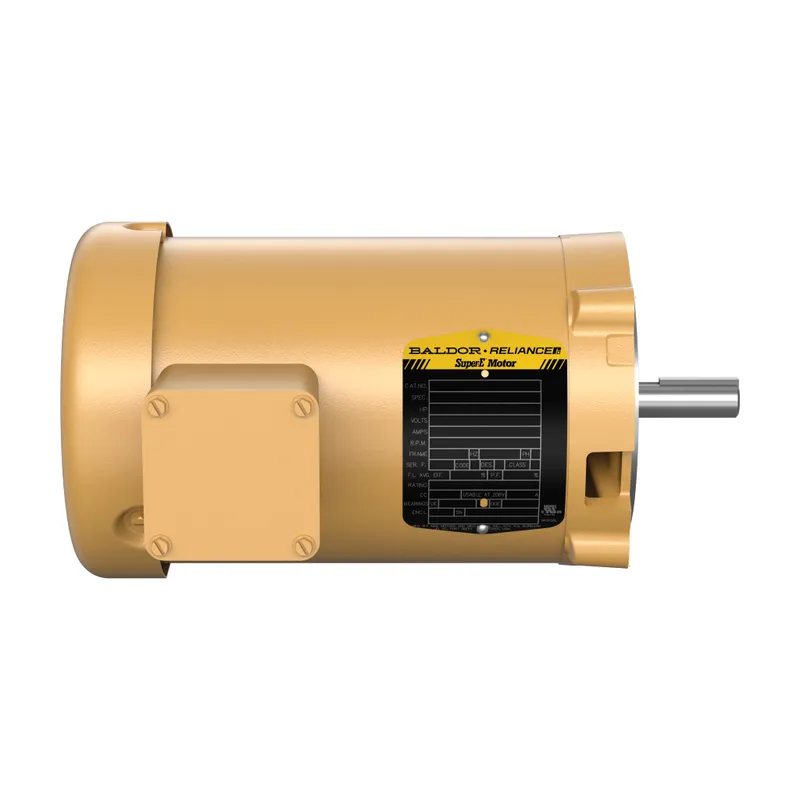

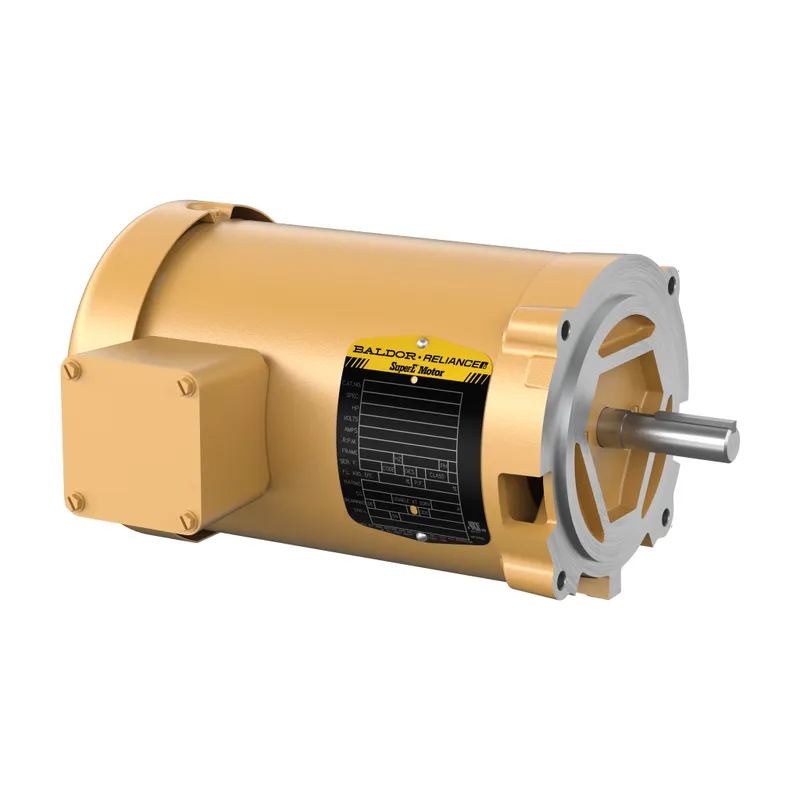

ABB KEM30006

.33HP,3450RPM,3PH,60HZ,56C,3413M,OP

MPN
KEM30006
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB KEM30006?

General Purpose Motor 0.33 Hp 230 V (KEM30006)

Specifications

Ordering

Catalog NumberKEM30006
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85013100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency Level2015 Small Motor Standard, Not Regulated / Exempt, Undefined Efficiency
Insulation ClassB
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor77 %
Rated Efficiency69.50 %
Service Factor1.35
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power0.33 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeOPEN
Frame MaterialSteel
Motor Frame Size56C
Motor Base TypeFootless
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height11.125 in
Product Net Weight22 lb
Product Net Width11.5 in
Dimension Diagram34LYF012

Certificates and Declarations

Certification AgencyC UR US ENERGY
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

KEM30006: frequently asked questions

When can KEM30006 be shipped?

KEM30006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up KEM30006 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for KEM30006 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KEM30006, subject to availability and destination.
