Home / ABB / Closed Coupled pump / ABB JML1406T

ABB

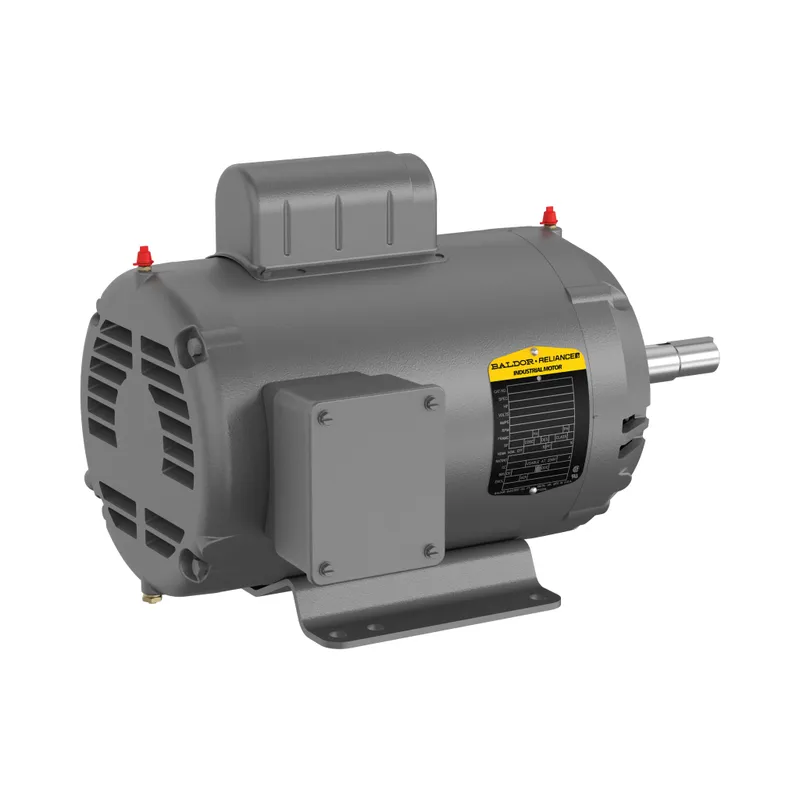

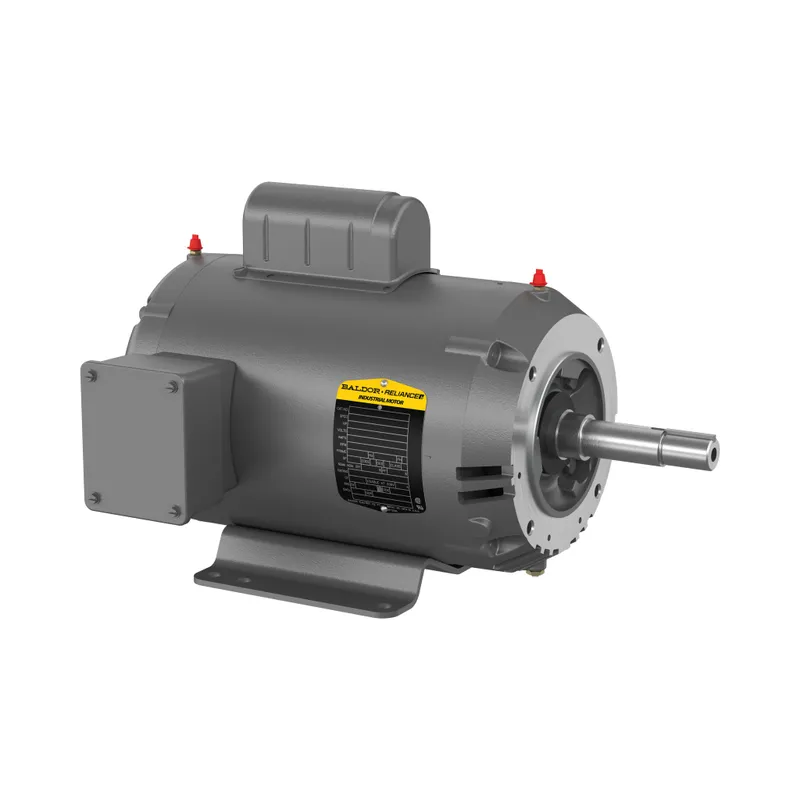

ABB JML1406T

3HP,3450RPM,1PH,60HZ,182,JM,3628L,O

MPN: JML1406T
Category: Closed Coupled pump

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB JML1406T?

Pump Motor 3 Hp 115 V (JML1406T)

Specifications

Ordering

Catalog Number	JML1406T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	L
Number of Phases	1-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	88 %
Rated Efficiency	78 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	3 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	182JM
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	15.125 in
Product Net Weight	69 lb
Product Net Width	16.125 in
Dimension Diagram	36LYG095

Certificates and Declarations

Certification Agency	CURUS, UR
IDEA Granular Category Code (IGCC)	1320 >> Pump motor AC
ETIM 7	EC001851 - Electric motor
