Home / ABB / V*S Master / ABB IDVSNM3584T

ABB

ABB IDVSNM3584T

1.5HP,1765RPM,3PH,60HZ,145TC,0528M

MPN: IDVSNM3584T
Category: V*S Master

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB IDVSNM3584T?

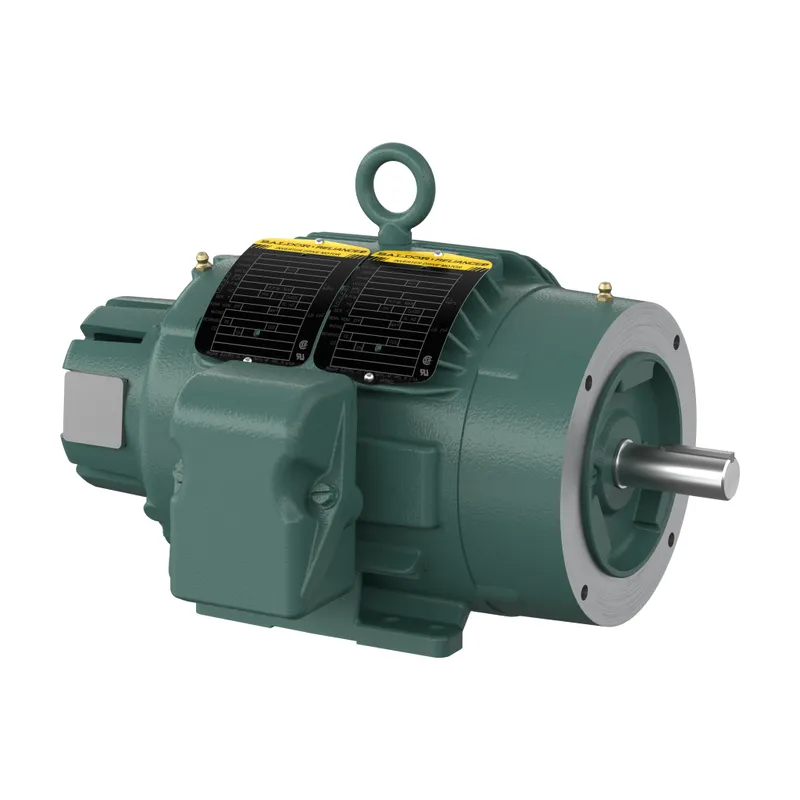

AC VS Master 1.50 Hp 230 V (IDVSNM3584T)

Specifications

Ordering

Catalog Number	IDVSNM3584T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Not Regulated / Exempt
Insulation Class	H
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	88 %
Rated Efficiency	80 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1.50 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TENV
Frame Material	Iron
Motor Frame Size	145TC
Motor Base Type	Rigid
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	64 lb
Product Net Width	13.75 in
Dimension Diagram	05LYE534

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
