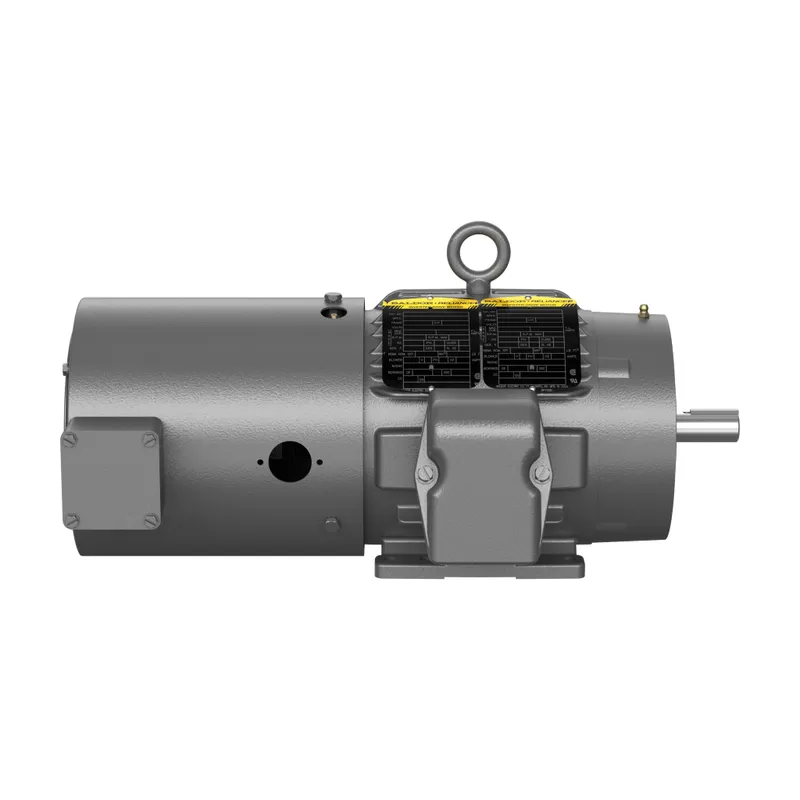

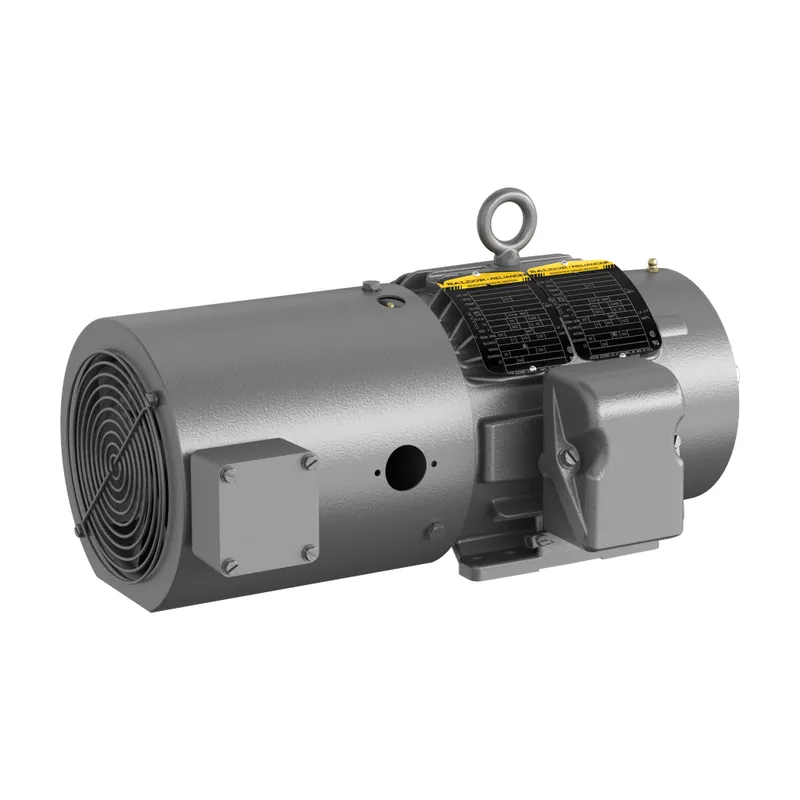

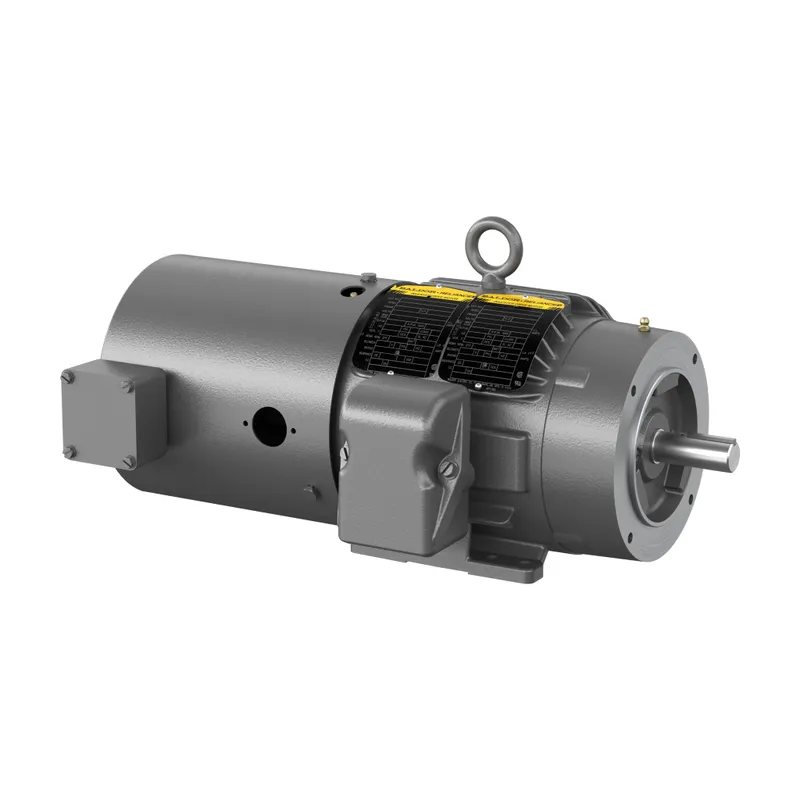

ABB IDM3582T
26M 6P TEBC HOR 145TC T'STATS INVER
- MPN
- IDM3582T
- Category
- V*S Master
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB IDM3582T?
AC Inverter / Vector Duty 1 Hp 230 V (IDM3582T)
Specifications
Ordering
| Catalog Number | IDM3582T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | IE3, Premium Efficiency (NEMA 12-12) |
| Insulation Class | H |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | Single Speed |
| Power Factor | 63 % |
| Rated Efficiency | 82.50 % |
| Service Factor | 1.00 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1200 r/min |
| Output Power | 1 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEBC |
| Frame Material | Iron |
| Motor Frame Size | 145TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 12.813 in |
| Product Net Weight | 68 lb |
| Product Net Width | 12.25 in |
| Dimension Diagram | 05LYE535 |
Certificates and Declarations
| Certification Agency | CSA, UR |
| IDEA Granular Category Code (IGCC) | 1319 >> Inverter motor AC |
| ETIM 7 | EC001851 - Electric motor |
