ABB IDDRPM322504R1

250HP,1750,460V,RL3203,DPFV,F1

MPN: IDDRPM322504R1
Category: RPM AC Inverter Duty

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB IDDRPM322504R1?

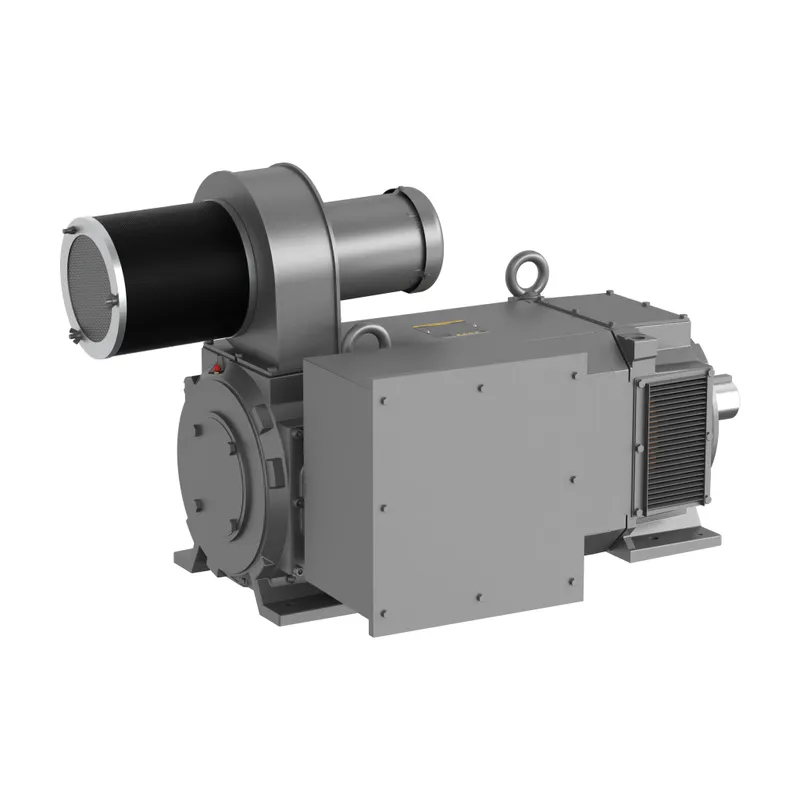

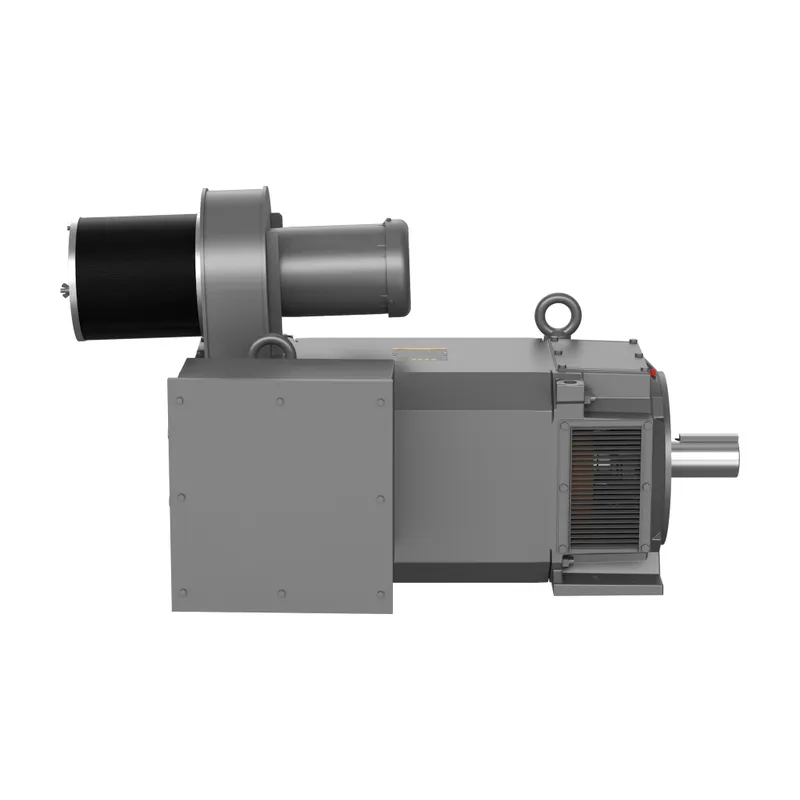

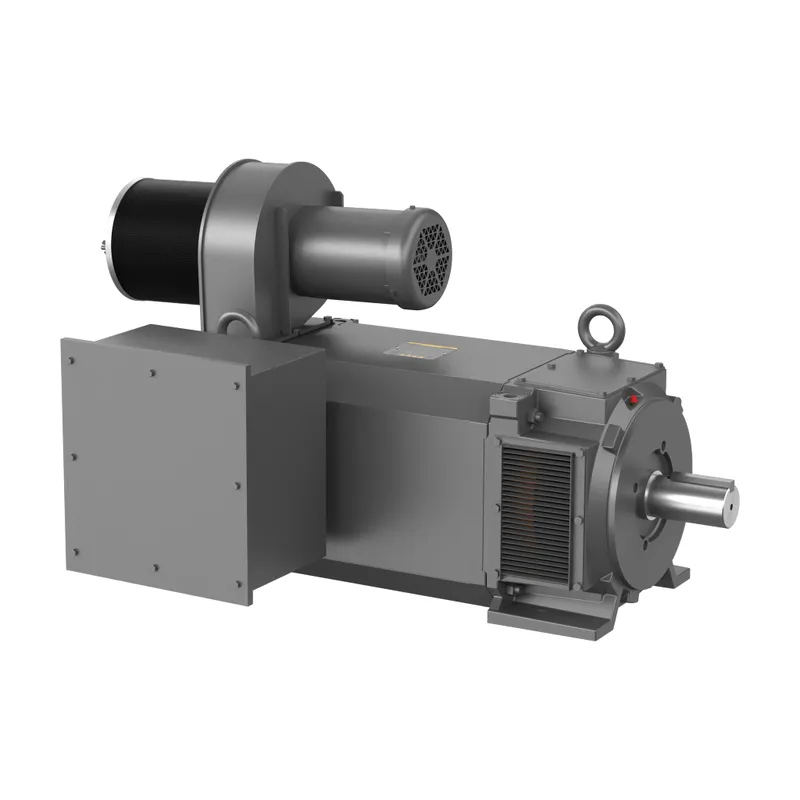

AC VS Laminated Frame - RPMAC 250 Hp 460 V (IDDRPM322504R1)

Specifications

Ordering

Catalog Number	IDDRPM322504R1
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015381
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	H
Number of Phases	3-phase
Service Factor	1.00
Type of Duty	Continuous
Synchronous Speed (vsyn)	1800 r/min
Output Power	250 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	DPFV
Frame Material	Explosed Laminations
Motor Frame Size	RL3203Z
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	1152 lb
Product Net Width	0 in
Dimension Diagram	619691-001

Certificates and Declarations

Certification Agency	CCSA US, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
