Home / ABB / Three phase enclosed motor / ABB GNEM3664T
ABB

ABB GNEM3664T

2HP//1.5KW,1170//965RPM,3PH,60//50H

MPN
GNEM3664T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB GNEM3664T?

General Purpose Motor 1.5 kW 190 V (GNEM3664T)

Specifications

Ordering

Catalog NumberGNEM3664T
Brand / LabelBaldor-Reliance®
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelIE3, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of Speedssingle_speed
Power Factor63 %
Rated Efficiency88.5 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect on line
Synchronous Speed (vsyn)1000 r/min, 1200 r/min
Output Power1.5 kW, 2 Hp kW

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialIron
Motor Frame Size184T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height0 in
Product Net Weight113 lb
Product Net Width0 in

Certificates and Declarations

Certification AgencyCE, CURUSEEV, IE3, NEMA_PREMIUM, UKCA, WEEE

GNEM3664T: frequently asked questions

When can GNEM3664T be shipped?

GNEM3664T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GNEM3664T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GNEM3664T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GNEM3664T, subject to availability and destination.

More ABB parts

ABB GNEM3614T-G – 2HP//1.5KW,1175//970RPM,3PH,60//50H
ABB
GNEM3614T-G

2HP//1.5KW,1175//970RPM,3PH,60//50H

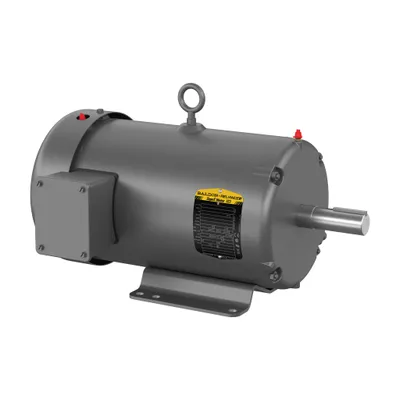

ABB GNEM3615T – 5HP,1750//1440RPM,3PH,60//50HZ,184T
