Home / ABB / Shaft grounded / ABB GNEM3611T-G
ABB

ABB GNEM3611T-G

RPM,0PH,HZ,182T,TEFC,F1,N

MPN
GNEM3611T-G
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB GNEM3611T-G?

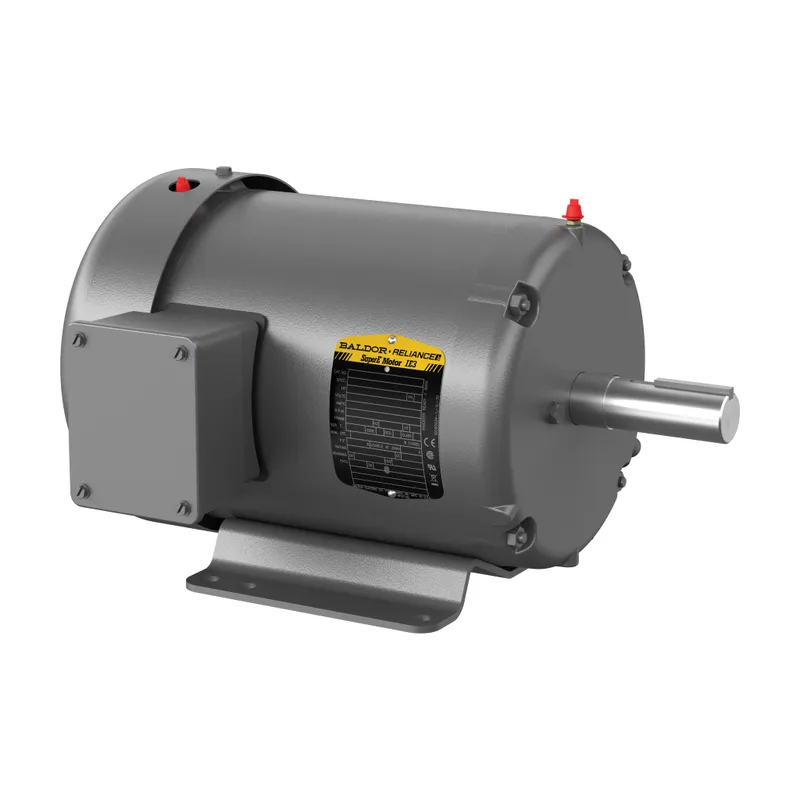

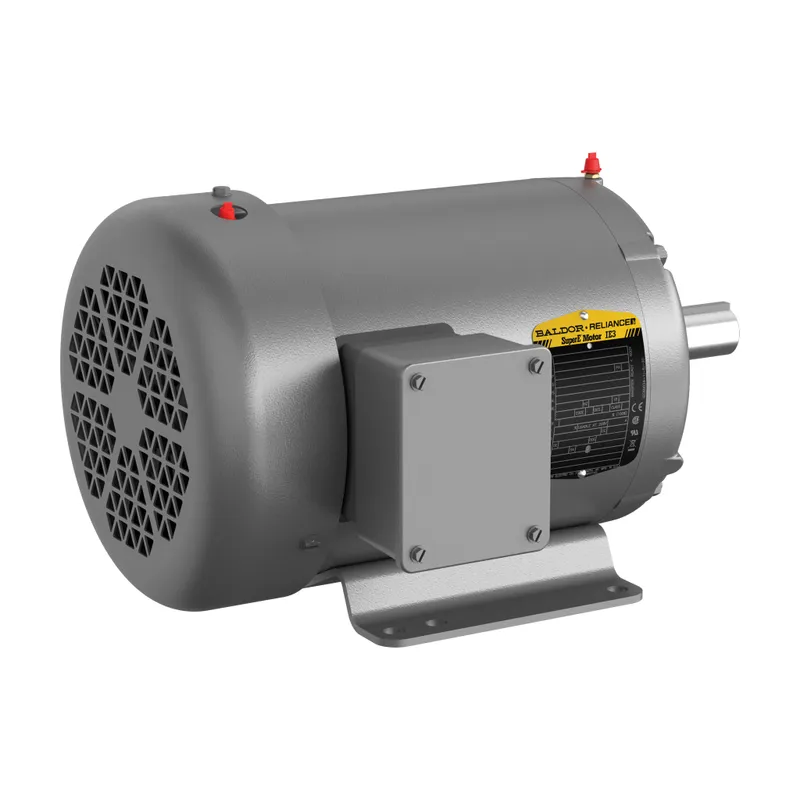

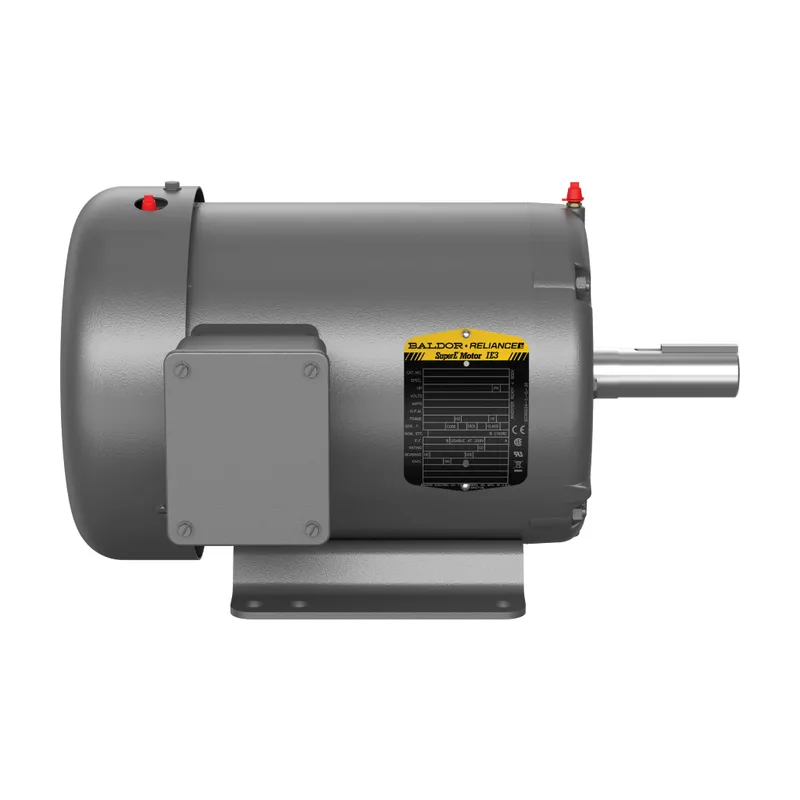

Shaft Ground 3 Hp 190 V (GNEM3611T-G)

Specifications

Ordering

Catalog NumberGNEM3611T-G G
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE3, Premium Efficiency (NEMA 12-12)
Insulation ClassH
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor74 %
Rated Efficiency90.20 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power3 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialSteel
Motor Frame Size182T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height16.25 in
Product Net Weight88 lb
Product Net Width16.625 in
Dimension Diagram36LYM524

Certificates and Declarations

Certification AgencyCE, CURUS, IE3, NEMA PREMIUM, NEMA_PREMIUM, UKCA, WEEE
ETIM 7EC001851 - Electric motor
