Home / ABB / Shaft grounded / ABB GNEM3211T-G
ABB

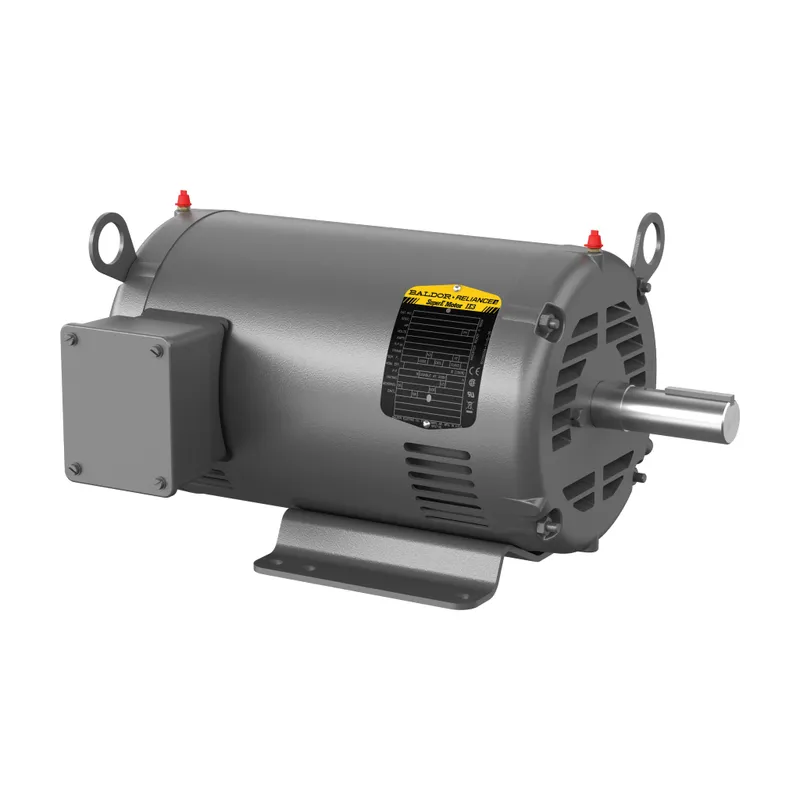

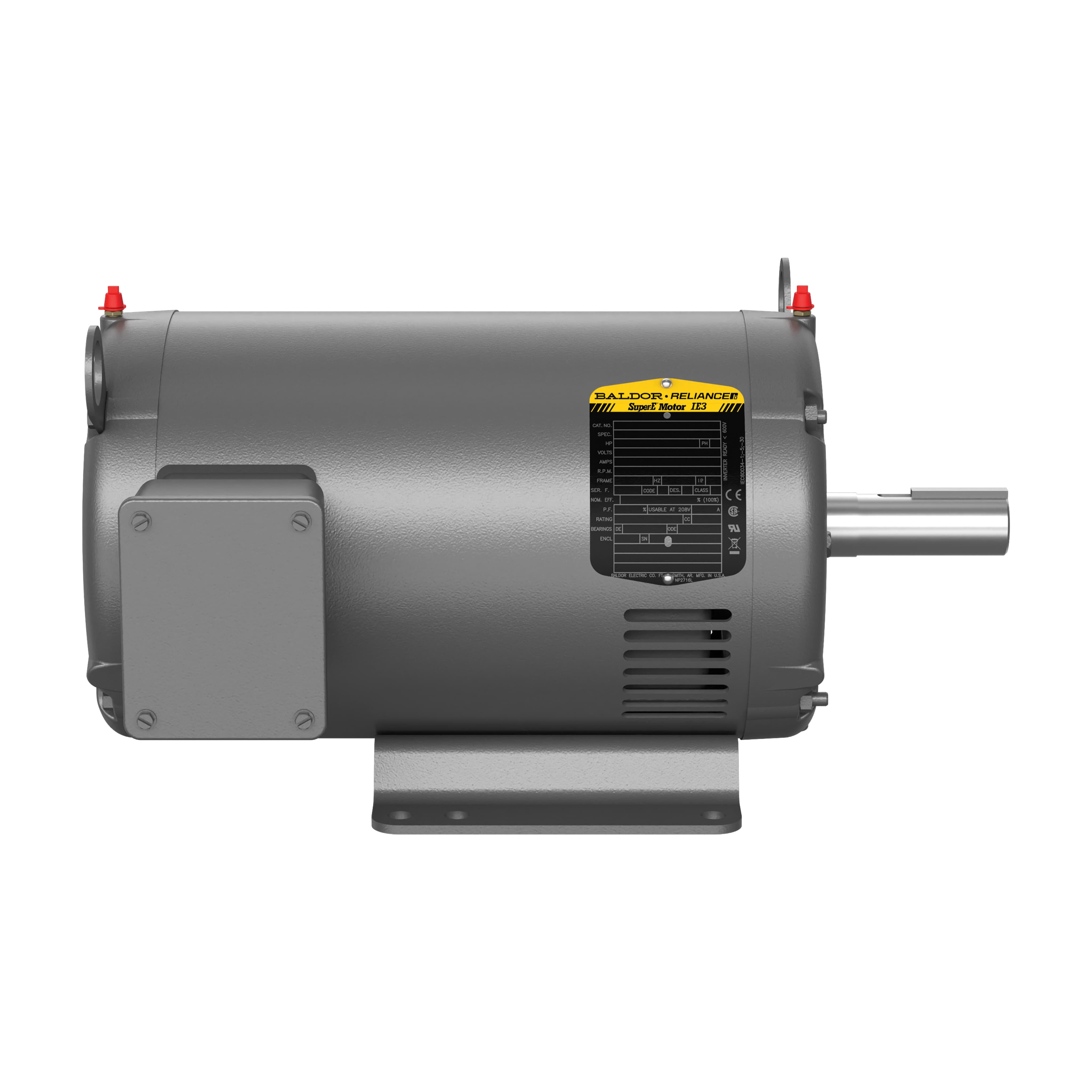

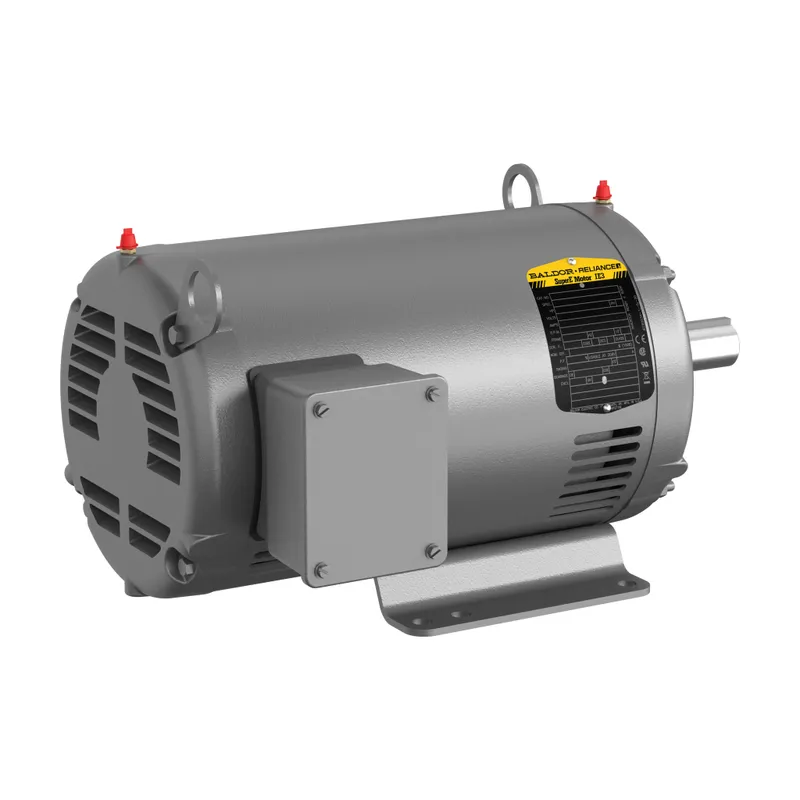

ABB GNEM3211T-G

3HP,1760//1460RPM,3PH,60//50HZ,182T

MPN
GNEM3211T-G
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB GNEM3211T-G?

Shaft Ground 3 Hp 190 V (GNEM3211T-G)

Specifications

Ordering

Catalog NumberGNEM3211T-G G
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE3, Premium Efficiency (NEMA 12-12)
Insulation ClassH
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor74 %
Rated Efficiency90.20 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1500 r/min, 1800 r/min
Output Power3 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeOPSB
Frame MaterialSteel
Motor Frame Size182T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height15.125 in
Product Net Weight88 lb
Product Net Width16.125 in
Dimension Diagram36LYM526

Certificates and Declarations

Certification AgencyCE, CURUS, IE3, NEMA PREMIUM, NEMA_PREMIUM, UKCA, WEEE
ETIM 7EC001851 - Electric motor

GNEM3211T-G: frequently asked questions

When can GNEM3211T-G be shipped?

GNEM3211T-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GNEM3211T-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GNEM3211T-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GNEM3211T-G, subject to availability and destination.
