Home / ABB / Three phase enclosed motor / ABB GNEM3154T

ABB

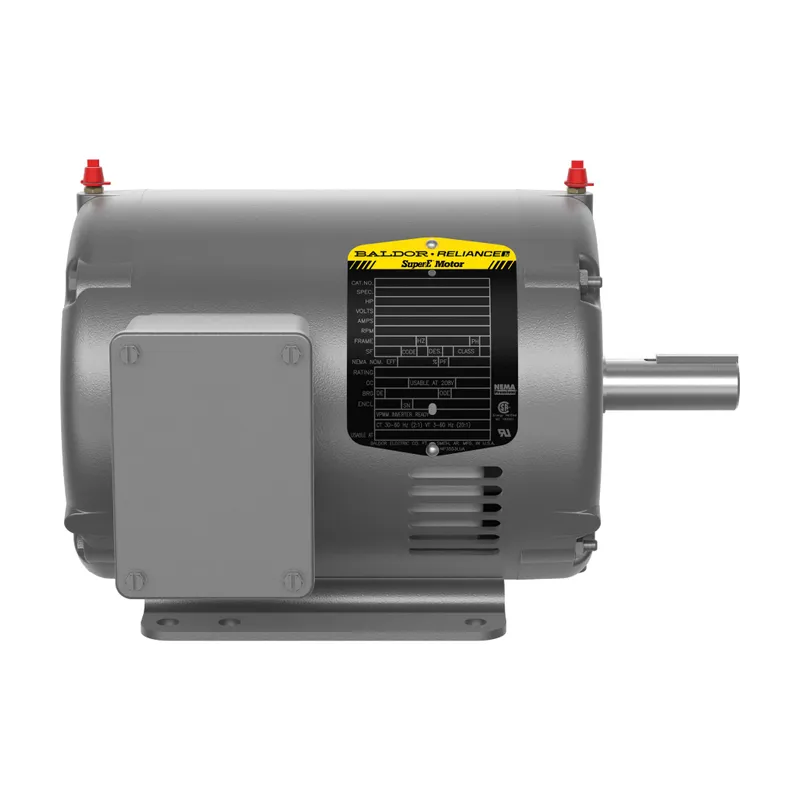

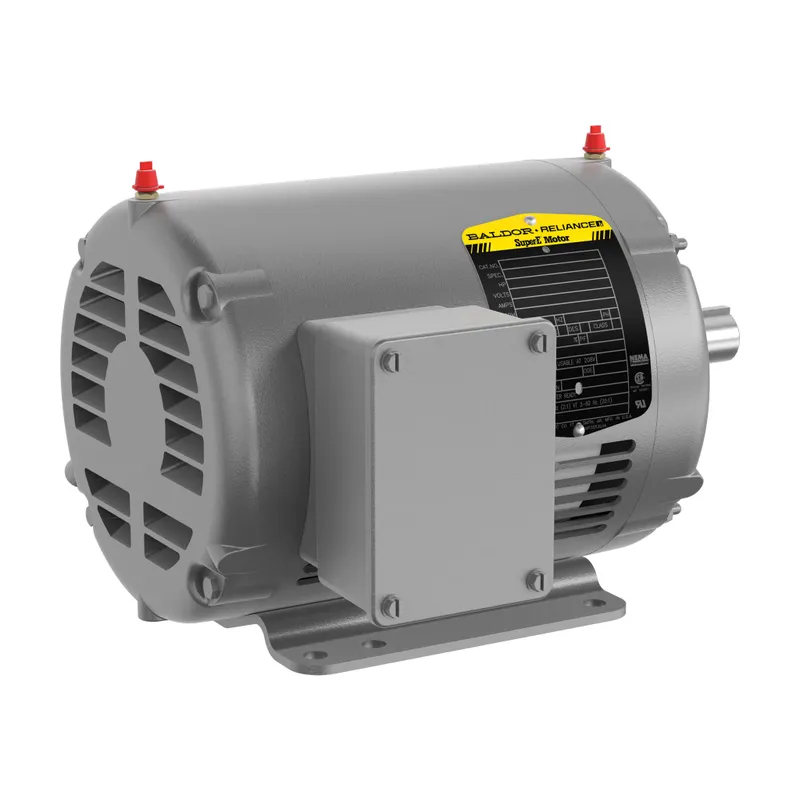

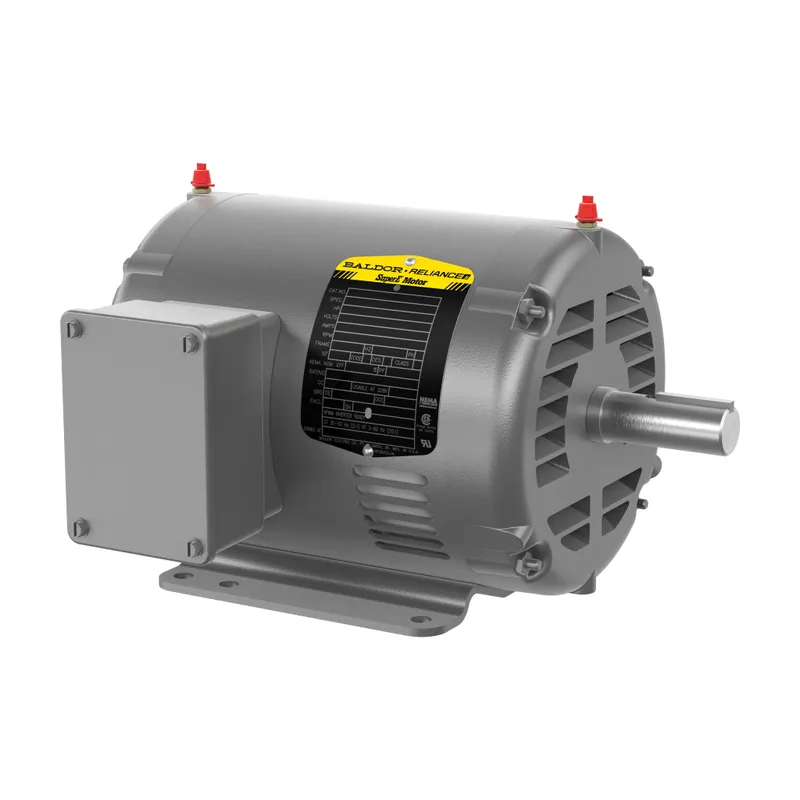

ABB GNEM3154T

1.5/1.1KWHP,1755//1445RPM,3PH,60//5

MPN: GNEM3154T
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB GNEM3154T?

General Purpose Motor 1.1 kW 190 V (GNEM3154T)

Specifications

Ordering

Catalog Number	GNEM3154T
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	80 %
Rated Efficiency	86.5 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1500 r/min, 1800 r/min
Output Power	1.1 kW, 1.5 Hp kW

Mechanical

Drive End Flange Type	Standard
Enclosure Type	OPSB
Frame Material	Steel
Motor Frame Size	145T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	41 lb
Product Net Width	0 in

Certificates and Declarations

Certification Agency

CE, CURUSEEV, IE3, NEMA_PREMIUM, UKCA, WEEE

GNEM3154T: frequently asked questions

When can GNEM3154T be shipped?

GNEM3154T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GNEM3154T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GNEM3154T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GNEM3154T, subject to availability and destination.
