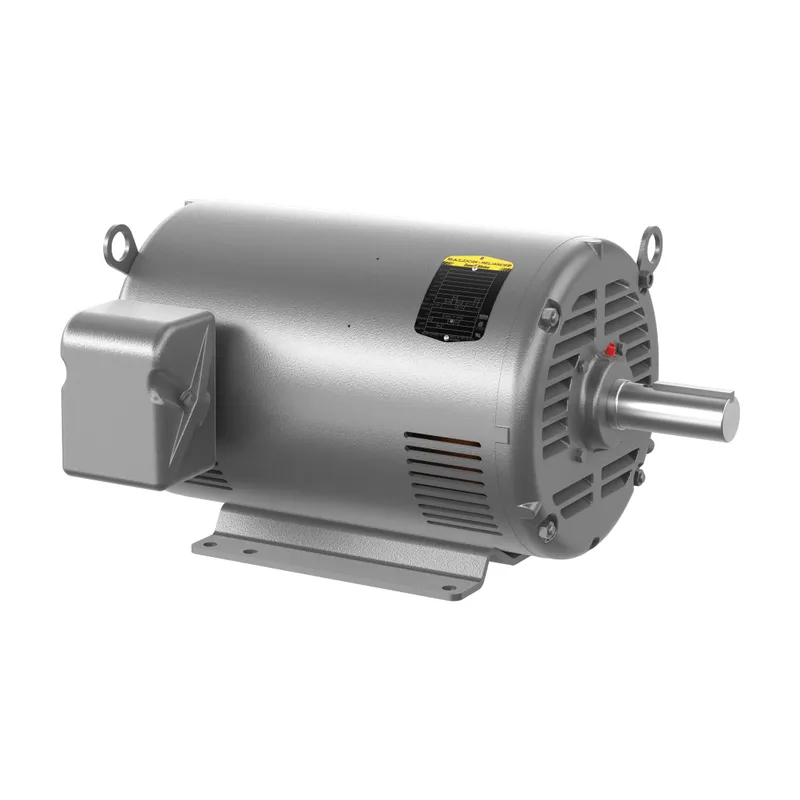

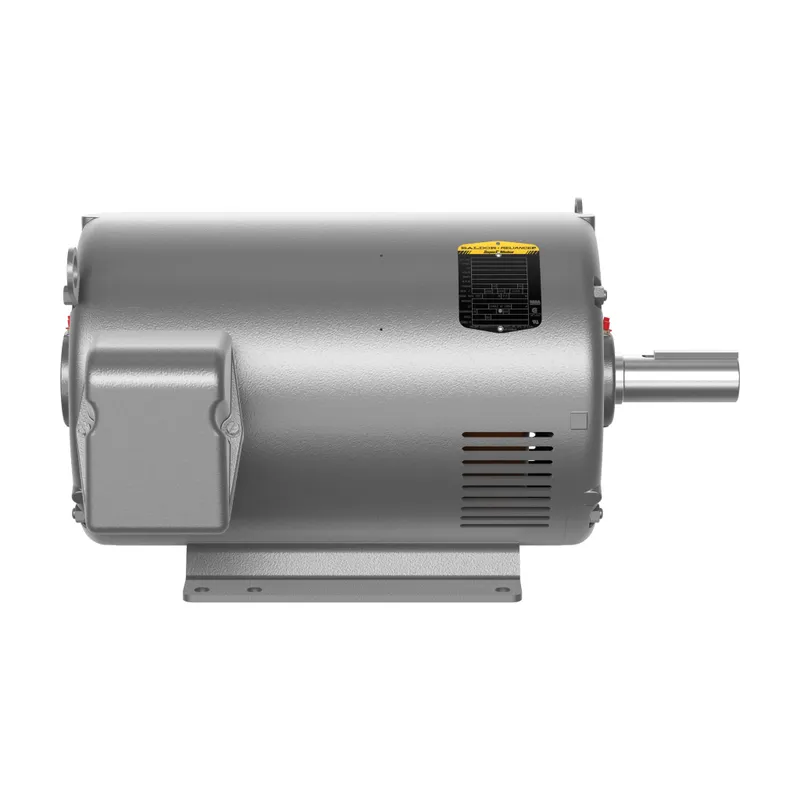

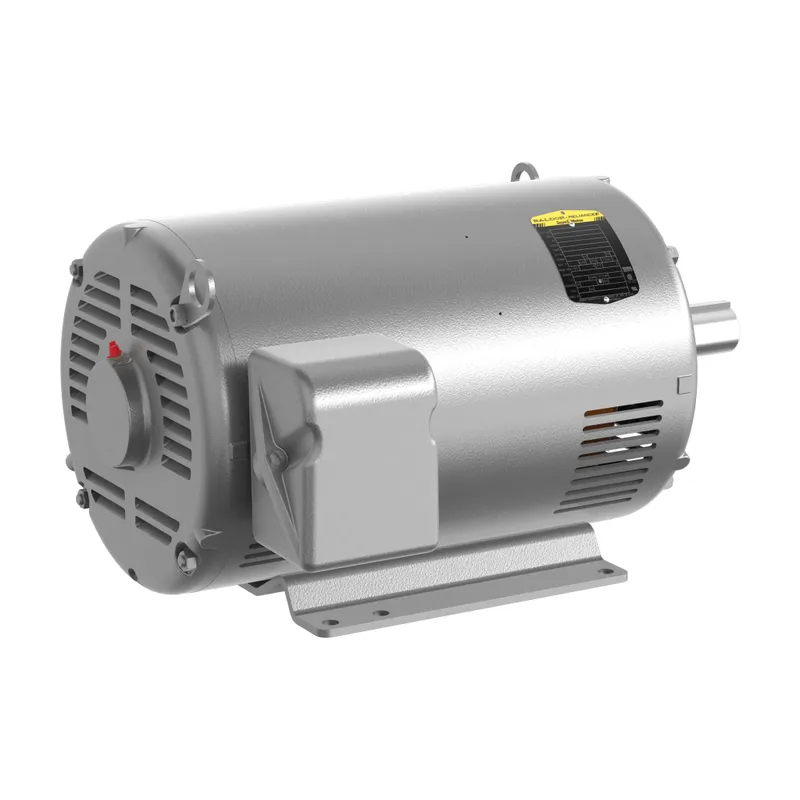

ABB GNEM2515T-G
20HP//15KW,1775//1470RPM,3PH,60//50
- MPN
- GNEM2515T-G
- Category
- Shaft grounded
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB GNEM2515T-G?
Shaft Ground Motors 15 kW 190 V (GNEM2515T-G)
Specifications
Ordering
| Catalog Number | GNEM2515T-G G |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | IE3, Premium Efficiency (NEMA 12-12) |
| Insulation Class | H |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | single_speed |
| Power Factor | 81 % |
| Rated Efficiency | 93.0 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1500 r/min, 1800 r/min |
| Output Power | 15 kW, 20 Hp kW |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | OPSB |
| Frame Material | Steel |
| Motor Frame Size | 256T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 290 lb |
| Product Net Width | 0 in |
Certificates and Declarations
| Certification Agency | CE, CURUSEEV, IE3, NEMA_PREMIUM, UKCA, WEEE |
