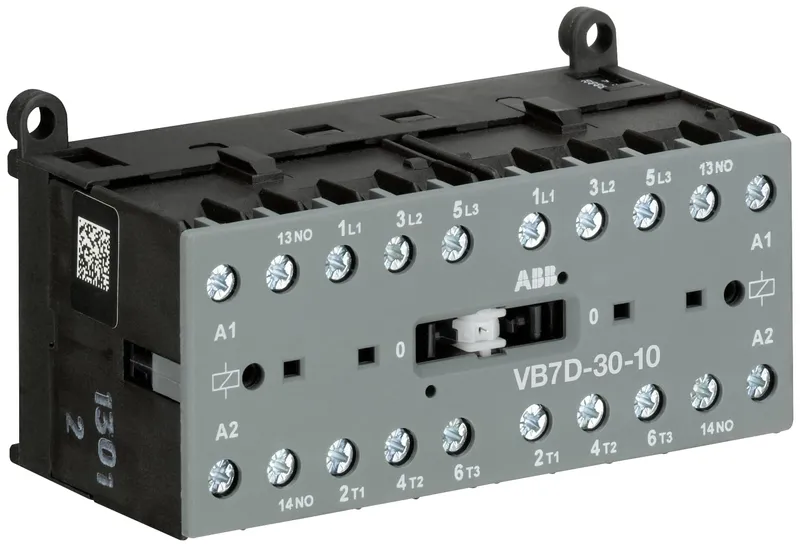

ABB GJL1317901R0101 – Mini Contactor VB7D 24 V DC - 3 NO - 0 NC - Screw Terminals

MPN: GJL1317901R0101 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Mini Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.355 kg
UPC / EAN	4013614405921

Shipping & availability

When can GJL1317901R0101 be shipped?

GJL1317901R0101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJL1317901R0101 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJL1317901R0101 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1317901R0101, subject to availability and destination.

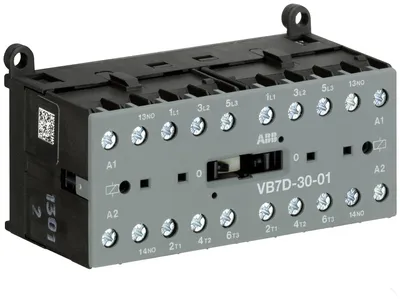

The VB7D-30-10-01 is a reversing mini contactor with 2NO contacts, 1NO auxiliary contact and screw terminals. The contactor has a rated control circuit voltage of 24VDC and a build in diode. They are ideally suited for applications where reliability is a must and space is at a premium. The mechanically interlocked reversing contactors switch power circuits of motors with clockwise and anticlockwise rotation. Attachable accessories are front-mounted 2-pole auxiliary contacts and the BSM6-30 reversing connecting link.
