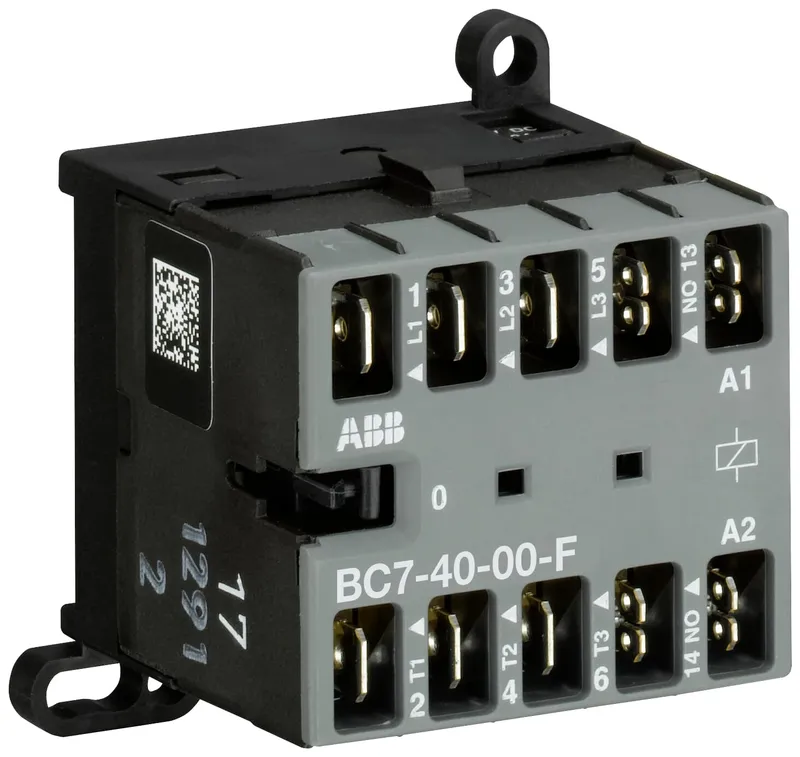

Mini Contactor BC7 17 ... 32 V DC - 4 NO - 0 NC - Flat-Pin Connections — photo 1 of 2

Mini Contactor BC7 17 ... 32 V DC - 4 NO - 0 NC - Flat-Pin Connections — photo 2 of 2

Available on request

ABB GJL1313203R5001 – Mini Contactor BC7 17 ... 32 V DC - 4 NO - 0 NC - Flat-Pin Connections

MPN: GJL1313203R5001 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Mini Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.17 kg
UPC / EAN	4013614269707

Shipping & availability

When can GJL1313203R5001 be shipped?

GJL1313203R5001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJL1313203R5001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJL1313203R5001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1313203R5001, subject to availability and destination.

The BC7-40-00-F mini contactor is a compact 4 pole contactor with flat pin connector. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1) or switching of control signals. Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.

Specifications

General

Order code (ABB product ID)	GJL1313203R5001
Type	BC7-40-00-F-2.4-51
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85365080

Dimensions

Product Net Width	52.5 mm
Product Net Depth / Length	46.7 mm
Product Net Height	57.5 mm
Product Net Weight	0.17 kg

Technical

Number of Main Contacts NO	4
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	0
Number of Poles	4P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Rated Operational Voltage	Main Circuit 690 V AC, Main Circuit 220 V DC
Rated Frequency (f)	Control Circuit DC, Main Circuit 60 Hz, Main Circuit 50 Hz, Main Circuit DC
Conventional Free-air Thermal Current (I<sub>th</sub>)	Main Circuit 20 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(220 / 240 V) 40 °C 20 A, (220 / 240 V) 55 °C 16 A, (380 / 440 V) 40 °C 20 A, (380 / 440 V) 55 °C 16 A, (690 V) 40 °C 6 A, (690 V) 55 °C 6 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(230 V) 55°C 12 A, (400 V) 55 °C 12 A, (500 V) 55 °C 9 A, (690 V) NO 55°C 3.5 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(230 V) Three Phase 3 kW, (400 V) Three Phase 5.5 kW, (500 V) Three Phase 5.5 kW, (690 V) Three Phase, NO 3 kW
Rated Breaking Capacity AC-3	8 x Ie / AC-3
Rated Making Capacity AC-3	10 x Ie / AC-3
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A
Rated Insulation Voltage (U<sub>i</sub>)	690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Main Circuit 6 kV
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour, (AC-3) 600 cycles per hour, (DC-1) 600 cycles per hour, (DC-3) 600 cycles per hour
Mechanical Durability	Nr. Operations 10000000 cycle
Coil Operating Limits	(acc. to IEC 60947-4-1) for DC supply Uc Min. ... Uc Max. (at θ ≤ 55 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	17 ... 32 V DC
Coil Consumption	Average Holding Value DC 2.4 W, Average Pull-in Value DC 2.4 W
Power Loss	at Rated Operating Conditions AC-1 per Pole NO 1.4 W
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Degree of Protection	Control Circuit Terminals IP20, Main Circuit Terminals IP20
Terminal Type	Flat-Pin Connections
Mini Contactor Type	Interface Mini Contactor
Product Name	Mini Contactor
Remarks	No CA6 or CAF6 mountable

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 600 V AC
General Use Rating UL/CSA	(600 V AC) 16 A
Horsepower Rating UL/CSA	(115 V AC) Single Phase 0.75 Hp, (200 V AC) Three Phase 2 Hp, (220 ... 240 V AC) Three Phase 3 Hp, (230 V AC) Single Phase 1.5 Hp, (440 ... 480 V AC) Three Phase 5 Hp, (550 ... 600 V AC) Three Phase 5 Hp
Full Load Amps Motor Use	(115 V AC) Single Phase 13.8 A, (200 V AC) Three Phase 7.8 A, (220 ... 240 V AC) Three Phase 9.6 A, (230 V AC) Single Phase 10 A, (440 ... 480 V AC) Three Phase 7.6 A, (550 ... 600 V AC) Three Phase 6.1 A

Environmental

Ambient Air Temperature	Operation -20 ... +55 °C, Storage -40 ... +80 °C
Maximum Operating Altitude Permissible	2000 m
Resistance to Shock acc. to IEC 60068-2-27	11 ms Pulse 15g
Resistance to Vibrations	5g 5 ... 150 Hz

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	No non-hazardous waste is sent to a landfill, UL 2799 Zero Waste To Landfill Validation available
Improved Energy Efficiency for Customers	Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 87.4 %

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
