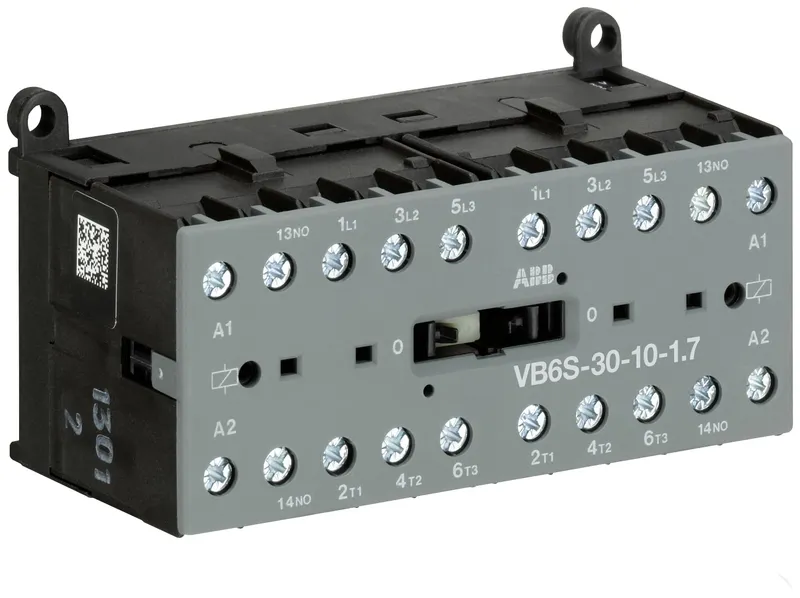

Mini Reversing Contactor VB6S 24 V DC - 3 NO - 0 NC - Screw Terminals — photo 1 of 2

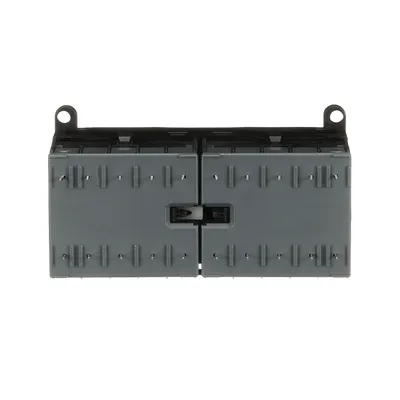

Mini Reversing Contactor VB6S 24 V DC - 3 NO - 0 NC - Screw Terminals — photo 2 of 2

Available on request

ABB GJL1213901R7101 – Mini Reversing Contactor VB6S 24 V DC - 3 NO - 0 NC - Screw Terminals

MPN: GJL1213901R7101 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Mini Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.355 kg
UPC / EAN	4013614152450

Shipping & availability

When can GJL1213901R7101 be shipped?

GJL1213901R7101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJL1213901R7101 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJL1213901R7101 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1213901R7101, subject to availability and destination.

The VB6S-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, the integrated protective circuit with diodes and additional overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting. The integrated surge suppressor saves time and costs by avoiding the need to install an external suppressor circuit.

Specifications

General

Order code (ABB product ID)	GJL1213901R7101
Type	VB6S-30-10-1.7-71
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85365080

Dimensions

Product Net Width	96.2 mm
Product Net Depth / Length	46.7 mm
Product Net Height	57.5 mm
Product Net Weight	0.355 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	0
Number of Poles	3P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Rated Operational Voltage	Auxiliary Circuit 690 V AC, Auxiliary Circuit 250 V DC, Main Circuit 690 V AC, Main Circuit 220 V DC
Rated Frequency (f)	Control Circuit 400 Hz, Control Circuit 50 Hz, Control Circuit 60 Hz, Main Circuit 60 Hz, Main Circuit 50 Hz, Main Circuit DC
Conventional Free-air Thermal Current (I<sub>th</sub>)	Main Circuit 20 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(220 / 240 V) 40 °C 20 A, (220 / 240 V) 55 °C 16 A, (380 / 440 V) 40 °C 20 A, (380 / 440 V) 55 °C 16 A, (690 V) 40 °C 6 A, (690 V) 55 °C 6 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(230 V) 55°C 9 A, (400 V) 55 °C 9 A, (500 V) 55 °C 6.5 A, (690 V) NO 55°C 3.5 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(440 V AC) 3 A, (24 V) 4 A, (120 V) 4 A, (240 V) 4 A, (500 V) 2 A, (380 / 400 V) 3 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 2.5 A, (110 V) 0.7 A, (220 / 240 V) 0.4 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(230 V) Three Phase 2.2 kW, (400 V) Three Phase 4 kW, (500 V) Three Phase 4 kW, (690 V) Three Phase, NO 3 kW
Rated Breaking Capacity AC-3	8 x Ie / AC-3
Rated Making Capacity AC-3	10 x Ie / AC-3
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A
Rated Insulation Voltage (U<sub>i</sub>)	690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Main Circuit 6 kV
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour, (AC-15) 600 cycles per hour, (AC-3) 600 cycles per hour, (DC-1) 600 cycles per hour, (DC-13) 600 cycles per hour, (DC-3) 600 cycles per hour
Mechanical Durability	Nr. Operations 10000000 cycle
Minimum Switching Capacity	Auxiliary Circuit 17 V, Auxiliary Circuit 5 mA
Coil Operating Limits	(acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C), (acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	24 V DC
Power Loss	at Rated Operating Conditions AC-15 per Pole 0.32 W, at Rated Operating Conditions AC-3 per Pole NO 0.2 W
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Main Circuit	Flexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm²
Connecting Capacity Control Circuit	Flexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm²
Wire Stripping Length	Auxiliary Circuit 9 mm, Main Circuit 9 mm
Degree of Protection	Auxiliary Circuit Terminals IP20, Control Circuit Terminals IP20, Main Circuit Terminals IP20
Recommended Screw Driver	M3, Pozidriv 1
Tightening Torque	Control Circuit 0.8 ... 1.1 N·m, Main Circuit 0.8 ... 1.1 N·m
Terminal Type	Screw Terminals
Product Name	Mini Reversing Contactor
Remarks	No CA6 or CAF6 mountable

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 600 V AC
General Use Rating UL/CSA	(300 V AC) 12 A
Horsepower Rating UL/CSA	(115 V AC) Single Phase 0.25 Hp, (200 V AC) Three Phase 1 Hp, (220 ... 240 V AC) Three Phase 2 Hp, (230 V AC) Single Phase 0.5 Hp, (440 ... 480 V AC) Three Phase 3 Hp, (550 ... 600 V AC) Three Phase 1 Hp
Connecting Capacity Main Circuit UL/CSA	Stranded 1/2x 22-10 AWG
Connecting Capacity Auxiliary Circuit UL/CSA	Stranded 1/2x 22-10 AWG
Contact Rating UL/CSA	A600
Tightening Torque UL/CSA	Auxiliary Circuit 7 in·lb, Control Circuit 7 in·lb, Main Circuit 7 in·lb
Full Load Amps Motor Use	(115 V AC) Single Phase 5.8 A, (200 V AC) Three Phase 4.8 A, (220 ... 240 V AC) Three Phase 6.8 A, (230 V AC) Single Phase 4.9 A, (440 ... 480 V AC) Three Phase 4.8 A, (550 ... 600 V AC) Three Phase 1.7 A

Environmental

Ambient Air Temperature	Operation -20 ... +55 °C, Storage -40 ... +80 °C
Maximum Operating Altitude Permissible	2000 m
Resistance to Shock acc. to IEC 60068-2-27	11 ms Pulse 15g
Resistance to Vibrations	5g 5 ... 150 Hz
Pollution Degree	3

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	No non-hazardous waste is sent to a landfill, UL 2799 Zero Waste To Landfill Validation available
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 87.8 %

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000010 - Combination of contactors
ETIM 8	EC000010 - Combination of contactors
ETIM 9	EC000010 - Combination of contactors
eClass	V11.0 : 27371009
UNSPSC	39121529

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (2CDC102046M6801)
Dimension Diagram (GJL1200447F0001)
ABB EcoSolutions Profile (1SFC100125C0354)
End Of Life Disassembling Instructions (1SBC100156C0263)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (10)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
Environmental Product Declaration - EPD (1SAC200410H0001)
A2L Certificate – IEC (1SAA938000-4601)
CB Certificate (1SAA938000-2002)
Declaration of Conformity - CE (1SAD101100-3101)
Declaration of Conformity - UKCA (1SAD201100-3101)
DNV GL Certificate (1SAA938000-0306)
RMRS Certificate (1SAA938000-0704)
