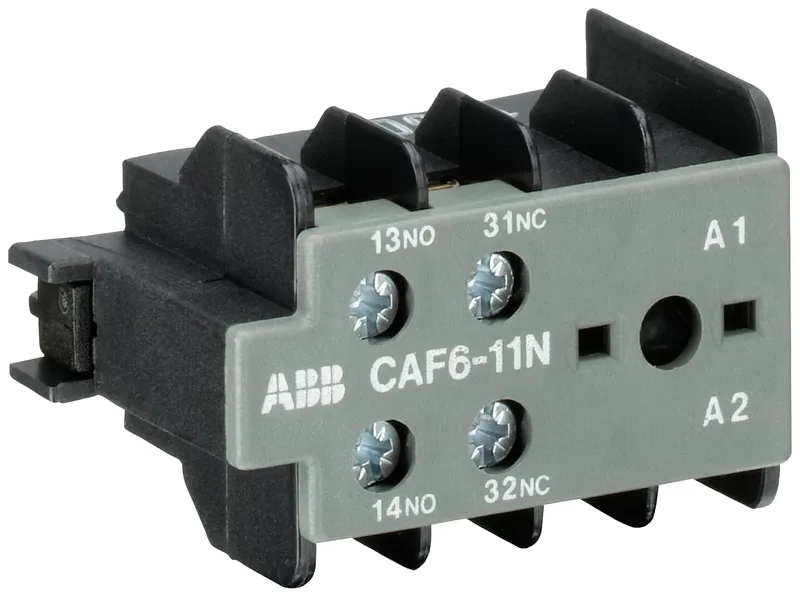

ABB GJL1201330R0004

CAF6-11N Auxiliary Contact 1NO/1NC screw terminal, front mounted

MPN
GJL1201330R0004
EAN
4013614142666
Price and lead time confirmed within 1 business day

Discontinued by ABB — we can still source the original GJL1201330R0004 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB GJL1201330R0004?

The CAF6-11N is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals.

Lifecycle: ABB sales units no longer offer this product (end of life). PartnerPLC sources discontinued ABB parts — request a quote for availability, or ask us about the current ABB successor.

Specifications

General

Order code (ABB product ID)GJL1201330R0004
TypeCAF6-11N
LifecycleEnd of life (no longer sold by ABB sales units)
Country of originGermany

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85365080

Dimensions

Product Net Width47.5 mm
Product Net Depth / Length26.5 mm
Product Net Height29 mm
Product Net Weight0.02 kg

Technical

Number of Main Contacts NO0
Number of Main Contacts NC0
Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC1
Number of Poles2P
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Rated Operational VoltageAuxiliary Circuit 690 V AC, Auxiliary Circuit 250 V DC
Rated Frequency (f)Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC
Conventional Free-air Thermal Current (I<sub>th</sub>)Auxiliary Circuit 6 A
Rated Operational Current AC-15 (I<sub>e</sub>)(24 V) 4 A, (240 V) 4 A, (500 V) 2 A, (380 / 400 V) 3 A
Rated Operational Current DC-13 (I<sub>e</sub>)(24 V) 1.5 A, (110 V) 0.4 A, (220 / 240 V) 0.04 A
Short-Circuit Protective DevicesgG Type Fuses 10 A
Rated Insulation Voltage (U<sub>i</sub>)690 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency(AC-15) 600 cycles per hour, (DC-13) 600 cycles per hour
Minimum Switching Capacity17 V, 5 mA
Power Lossat Rated Operating Conditions AC-15 per Pole 0.25 W
Connecting Capacity Auxiliary CircuitFlexible with Ferrule 1/2x 1 ... 2.5 mm², Flexible 1/2x 1 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm²
Wire Stripping LengthAuxiliary Circuit 9 mm
Degree of ProtectionIP20
Tightening TorqueAuxiliary Circuit 0.8 ... 1.1 N·m
Terminal TypeScrew Terminals
Suitable ForB6-30-01, BC6-30-01, B7-30-01, BC7-30-01, VB6-30-01, VBC6-30-01, VB7-30-01, VBC7-30-01, VB6A-30-01, VBC6A-30-01, VB7A-30-01, VBC7A-30-01
Suitable for Product ClassMini Contactors
Product NameAuxiliary Contact

Technical UL/CSA

Maximum Operating Voltage UL/CSA600 V AC
General Use Rating UL/CSA(600 V AC) 5 A
Connecting Capacity Auxiliary Circuit UL/CSAStranded 1/2x 22-10 AWG
Contact Rating UL/CSAA600
Tightening Torque UL/CSAAuxiliary Circuit 7 in·lb

Environmental

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +80 °C
Maximum Operating Altitude Permissible2000 m
Resistance to Shock acc. to IEC 60068-2-2711 ms Pulse 15g
Resistance to Vibrations5g 5 ... 150 Hz

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeK
ETIM 7EC000041 - Auxiliary contact block
ETIM 8EC000041 - Auxiliary contact block
ETIM 9EC000041 - Auxiliary contact block
eClassV11.0 : 27371302
UNSPSC39121522
IDEA Granular Category Code (IGCC)4743 >> Auxiliary contact block
E-Number (Norway)4184091
E-Number (Sweden)3210093

GJL1201330R0004: frequently asked questions

Can I still buy the GJL1201330R0004 now that it is discontinued?

Yes. ABB has discontinued the GJL1201330R0004, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can GJL1201330R0004 be shipped?

GJL1201330R0004 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJL1201330R0004 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJL1201330R0004 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1201330R0004, subject to availability and destination.

More ABB parts

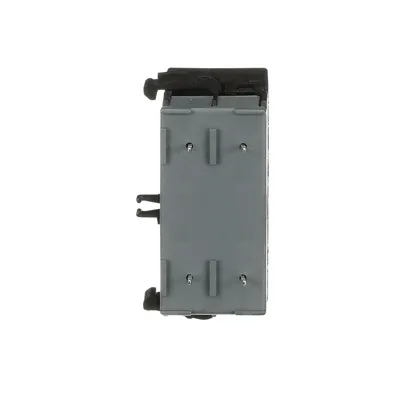

ABB GJL1201319R0004 – CA6-11N-P Auxiliary Contact 1NO/1NC soldering pin, side mounted
ABB
GJL1201319R0004

CA6-11N-P Auxiliary Contact 1NO/1NC soldering pin, side mounted

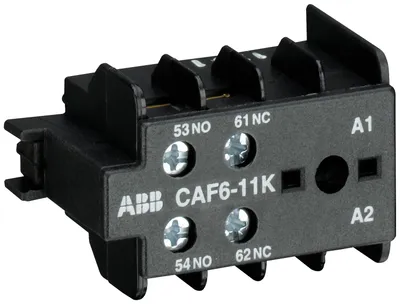

ABB GJL1201330R0001 – CAF6-11K Auxiliary Contact 1NO/1NC screw terminal, front mounted
ABB
GJL1201330R0001

CAF6-11K Auxiliary Contact 1NO/1NC screw terminal, front mounted

ABB GJL1201330R0002 – CAF6-11E Auxiliary Contact 1NO/1NC screw terminal, front mounted
ABB
GJL1201330R0002

CAF6-11E Auxiliary Contact 1NO/1NC screw terminal, front mounted

ABB GJL1201330R0003 – CAF6-11M Auxiliary Contact 1NO/1NC screw terminal, front mounted
ABB
GJL1201330R0003

CAF6-11M Auxiliary Contact 1NO/1NC screw terminal, front mounted

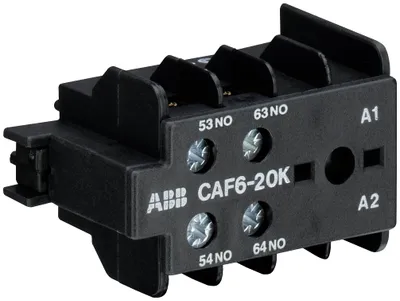

ABB GJL1201330R0005 – CAF6-20K Auxiliary Contact 2NO/0NC screw terminal, front mounted
ABB
GJL1201330R0005

CAF6-20K Auxiliary Contact 2NO/0NC screw terminal, front mounted

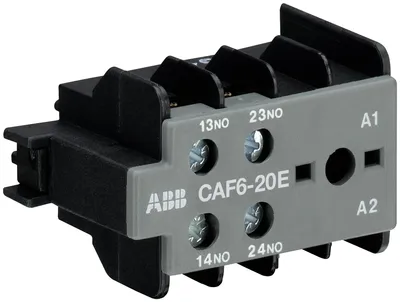

ABB GJL1201330R0006 – CAF6-20E Auxiliary Contact 2NO/0NC screw terminal, front mounted
