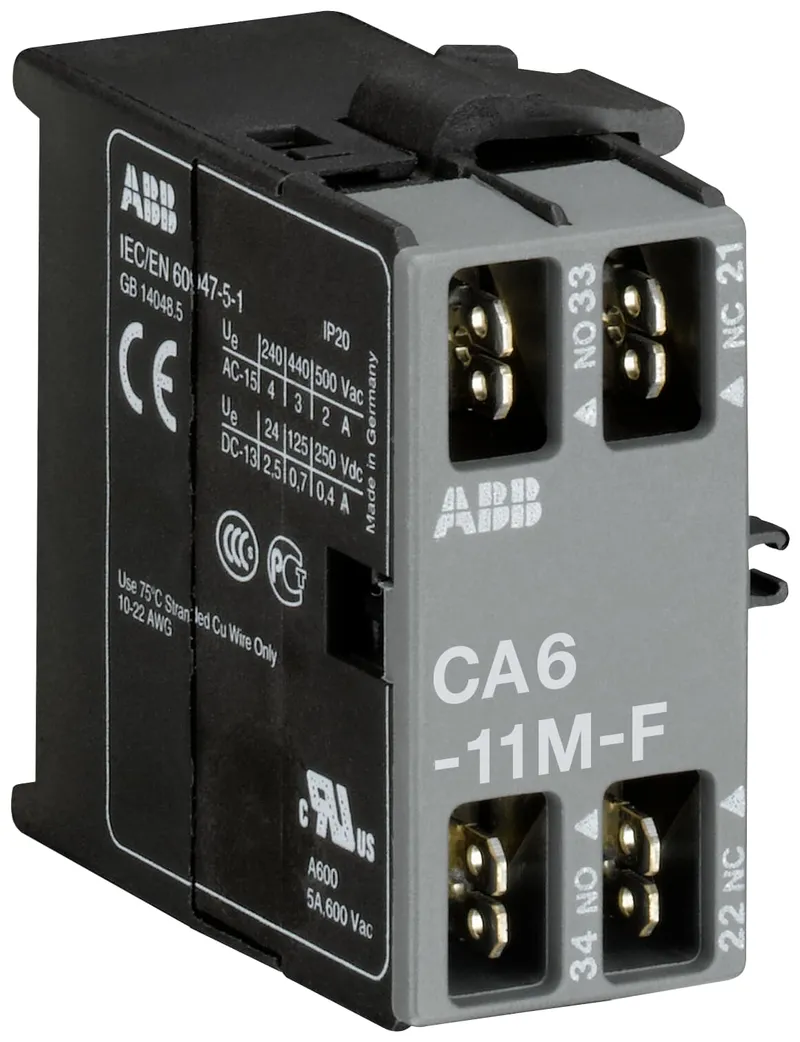

ABB GJL1201318R0003 – CA6-11M-F Auxiliary Contact 1NO/1NC flat pin, side mounted

MPN: GJL1201318R0003 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Mini Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.025 kg
UPC / EAN	4013614051005

Shipping & availability

When can GJL1201318R0003 be shipped?

GJL1201318R0003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GJL1201318R0003 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GJL1201318R0003 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GJL1201318R0003, subject to availability and destination.

CA6-11M-F is an auxiliary contact for side with 2 auxiliary contact and flat pin connection.

Specifications

General

Order code (ABB product ID)	GJL1201318R0003
Type	CA6-11M-F
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85365080

Dimensions

Product Net Width	20.3 mm
Product Net Depth / Length	46.5 mm
Product Net Height	48.5 mm
Product Net Weight	0.025 kg

Technical

Number of Main Contacts NO	0
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Number of Poles	2P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Rated Operational Voltage	Auxiliary Circuit 690 V AC, Auxiliary Circuit 250 V DC
Rated Frequency (f)	Auxiliary Circuit 50 Hz, Auxiliary Circuit 60 Hz, Auxiliary Circuit DC
Conventional Free-air Thermal Current (I<sub>th</sub>)	Auxiliary Circuit 6 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(24 V) 4 A, (240 V) 4 A, (500 V) 2 A, (380 / 400 V) 3 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 1.5 A, (110 V) 0.4 A, (220 / 240 V) 0.04 A
Short-Circuit Protective Devices	gG Type Fuses 10 A
Rated Insulation Voltage (U<sub>i</sub>)	690 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency	(AC-15) 600 cycles per hour, (DC-13) 600 cycles per hour
Minimum Switching Capacity	17 V, 5 mA
Power Loss	at Rated Operating Conditions AC-15 per Pole 0.25 W
Degree of Protection	IP20
Terminal Type	Flat-Pin Connections
Suitable For	B6-30-10-F, BC6-30-10-F, B7-30-10-F, BC7-30-10-F
Suitable for Product Class	Mini Contactors
Product Name	Auxiliary Contact

Technical UL/CSA

Maximum Operating Voltage UL/CSA	600 V AC
General Use Rating UL/CSA	(600 V AC) 5 A
Contact Rating UL/CSA	A600

Environmental

Ambient Air Temperature	Operation -25 ... +55 °C, Storage -40 ... +80 °C
Maximum Operating Altitude Permissible	2000 m
Resistance to Shock acc. to IEC 60068-2-27	11 ms Pulse 15g
Resistance to Vibrations	5g 5 ... 150 Hz

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000041 - Auxiliary contact block
eClass	V11.0 : 27371302
UNSPSC	39121522

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (2CDC102047M6801)
Dimension Diagram (GJL1200444F0001)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (10)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
A2L Certificate – IEC (1SAA938000-4601)
CB Certificate (1SAA938001-2001)
CCC Certificate (2024010305658959)
Declaration of Conformity - CE (1SAD101100-3101)
Declaration of Conformity - UKCA (1SAD201100-3101)
RMRS Certificate (1SAA938001-0704)
UL Certificate (E48139-19881213)
UR Certificate (1SAA938000-1801)
